Ambari Server Upgrade

Upgrade Steps

The following steps have to be performed on the installed Ambari Server node.

Stop Infra-Solr Service

Stop the Infra-solr Service from the Ambari UI by navigate to Ambari > Infra Solr > Actions > Stop.

Stop Ambari Server and Agents

Stop the Ambari server and agents by running the following command.

Bash


ambari-server stopambari-agent stop
Copy

Warning Stop the Ambari Agents on all nodes in the cluster.

Configuration Backup

Take a backup of the Ambari-server configs.

Bash


cp -r /etc/ambari-server/config /etc/ambari-server/conf_bkp
Copy

Back up Ambari Database

Bash


mysqldump --databases ambari > /tmp/ambari-server_db_bckp/ambari_mysql_bckp.sql
Copy

Erase the Ambari Server

For RHEL:

Bash


yum erase ambari-server -y
Copy

For Ubuntu:

Bash


apt remove ambari-server -y
Copy

Add Ambari Repo on Cluster Nodes

Back up the Old Ambari Repository

For RHEL:

Bash


mv /etc/yum.repos.d/ambari.repo /tmp/
Copy

For Ubuntu:

Bash


mv /etc/apt/sources.list.d/ambari.list /tmp/
Copy

Update the Repository Files

Retrieve the latest Ambari repository details from Ambari Repositories and add it to all the cluster nodes.

Update ambari.repo (RedHat) or ambari.list (Ubuntu).

For RHEL:

Bash


vim /etc/yum.repos.d/ambari.repo
Copy

Bash


[ambari]async = 1baseurl = https://mirror.odp.acceldata.dev/ODP/rhel/Ambari-2.7.9.1-1/gpgcheck = 0name = ambari Version - ambari-2.7.9.1-1
Copy

For Ubuntu:

Bash


vim /etc/apt/sources.list.d/ambari.list
Copy

Bash


deb https://mirror.odp.acceldata.dev/ODP/ubuntu20/Ambari-2.7.9.1-1/ ODP main deb https://mirror.odp.acceldata.dev/ODP/ubuntu20/Ambari-2.7.9.1-1/ ODP-UTILS main
Copy

List the New Packages

Verify the latest Ambari package for the version - 2.7.9.1-1.

For RHEL:

Bash


yum clean allyum list ambari-*
Copy

For Ubuntu 20:

Bash


apt clean allapt list ambari-*
Copy

Install the Updated Ambari Packages

For RHEL:

Bash


yum clean allyum install ambari-server -y
Copy

For Ubuntu:

Bash


apt cleanapt install ambari-server -y
Copy

Restore the Configuration Files

Copy ambari.properties and password.dat to /etc/ambari-server/conf/.

Once the installation is successful, make sure to set up the following versions.

Set up Java 11

Make sure to install and update the default Java version as 11 on all the cluster nodes.

For RHEL:

Bash


yum install java-11-openjdk.x86_64yum install java-11-openjdk-devel.x86_64
Copy

For Ubuntu:

Bash


apt-get install openjdk-11-jdk openjdk-11-jdk-headless
Copy

Ensure not to remove the jdk8 packages at this state.

Bash

​x

update-alternatives --config java​There are 2 choices for the alternative java (providing /usr/bin/java).​  Selection    Path                                            Priority   Status------------------------------------------------------------* 0            /usr/lib/jvm/java-11-openjdk-amd64/bin/java      1111      auto mode  1            /usr/lib/jvm/java-11-openjdk-amd64/bin/java      1111      manual mode  2            /usr/lib/jvm/java-8-openjdk-amd64/jre/bin/java   1081      manual mode​Press <enter> to keep the current choice[*], or type selection number: 1
Copy

Set up Python 3.11

Bash


yum install python3.11
Copy

Make sure to install and update the default Python version as 3.11 on all the cluster nodes.

Bash


update-alternatives --config python​There are 4 programs which provide 'python'.  Selection    Command-----------------------------------------------*  1           /usr/libexec/no-python   2           /usr/bin/python3   3           /usr/bin/python2 + 4           /usr/bin/python3.11Enter to keep the current selection[+], or type selection number: 4
Copy

Update JSVC

Make sure to Instal the latest version of the bigtop-jsvc-1.2.4 on all the cluster nodes.

For RHEL:

Bash


yum install bigtop-jsvc* -y
Copy

For Ubuntu:

Bash


apt install bigtop-jsvc
Copy

Restore Config Files

Restore the ambari.properties and password.dat files, which are backed-up at this step: Configuration Backup.

Restore ambari.properties file

Bash


cp /etc/ambari-server/conf_bkp/ambari.properties /etc/ambari-server/conf/
Copy

Please override the file by prompting 'y'.

Restore password.dat file

Bash


cp /etc/ambari-server/conf_bkp/password.dat /etc/ambari-server/conf/
Copy

Update the java.home and Stack.java.home

In this case, set JAVA_HOME to /usr/lib/jvm/java-11-openjdk

File path - /etc/ambari-server/conf/ambari.properties | grep -i java.home

Bash


java.home=/usr/lib/jvm/java-11-openjdkstack.java.home=/usr/lib/jvm/java-11-openjdk
Copy

Upgrade the Ambari Server Database Schema

Bash


ambari-server upgrade -v
Copy

Upon running the command, the response will be as shown in the screenshot.

Make sure to take the database backup as mentioned earlier and enter 'y' here.

Start the Ambari Server

Once started, you are able to access the Ambari UI using the same url as it was earlier.

Bash


ambari-server start
Copy

Access the Ambari UI

Use your browser to access the Ambari UI.

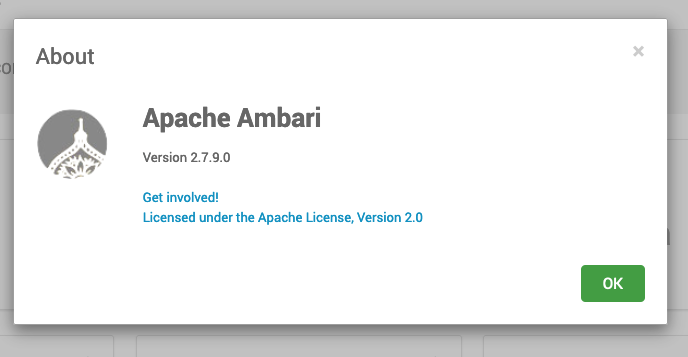

Check the Upgraded Version

To verify the upgraded Ambari version, navigate to Admin → About in the top-right corner of the Ambari UI.

All the services also must be working normally without any downtime.

Installing Mpacks and Restoring Configurations

Follow the steps on the Guide for Management Packs page for installing mpacks and restoring configurations.

Known Issues

Pip dependency missing

Error:

Bash


[root@ce19 ~]# ambari-server upgradeUsing python  /usr/bin/python3Upgrading ambari-serverTraceback (most recent call last):  File "/usr/sbin/ambari-server.py", line 28, in <module>    from ambari_commons.exceptions import FatalException, NonFatalException  File "/usr/lib/ambari-server/lib/ambari_commons/init.py", line 21, in <module>    from ambari_commons.os_check import OSCheck, OSConst  File "/usr/lib/ambari-server/lib/ambari_commons/os_check.py", line 25, in <module>    import distroModuleNotFoundError: No module named 'distro'
Copy

Workaround:

Bash


pip3 install distro
Copy

If still hitting the distro module not found error, follow the below steps:

Step 1:

Download the get-pip.py script:

Bash


curl https://bootstrap.pypa.io/get-pip.py -o get-pip.py
Copy

Install pip for Python 3.11:

Bash


/usr/bin/python3.11 get-pip.py
Copy

Step 2: Install the distro module using pip3.11

Once `pip` is installed for Python 3.11, you can now use it to install the missing `distro` module:

Bash


/usr/bin/python3.11 -m pip install distro
Copy

Step 3: Verify the installation.

After installing the distro module, verify that it’s correctly installed:

Bash


/usr/bin/python3.11 -c "import distro"
Copy

The ambari-server upgrade -v upgrade is successfully done.

Mpacks uninstallation not done

Bash


Traceback (most recent call last):  File "/usr/lib/ambari-server/lib/ambari_simplejson/scanner.py", line 49, in _scan_once    nextchar = string[idx]IndexError: string index out of range​During handling of the above exception, another exception occurred:​Traceback (most recent call last):  File "/usr/sbin/ambari-server.py", line 1083, in <module>    mainBody()  File "/usr/sbin/ambari-server.py", line 1053, in mainBody    main(options, args, parser)  File "/usr/sbin/ambari-server.py", line 999, in main    action_obj.execute()  File "/usr/sbin/ambari-server.py", line 78, in execute    self.fn(*self.args, **self.kwargs)  File "/usr/lib/ambari-server/lib/ambari_server/serverUpgrade.py", line 262, in upgrade    retcode = run_schema_upgrade(args)  File "/usr/lib/ambari-server/lib/ambari_server/serverUpgrade.py", line 162, in run_schema_upgrade    upgrade_response = json.loads(stdout)  File "/usr/lib/ambari-server/lib/ambari_simplejson/init.py", line 538, in loads    return _default_decoder.decode(s)  File "/usr/lib/ambari-server/lib/ambari_simplejson/decoder.py", line 378, in decode    obj, end = self.raw_decode(s)  File "/usr/lib/ambari-server/lib/ambari_simplejson/decoder.py", line 408, in raw_decode    return self.scan_once(s, idx=_w(s, idx).end())  File "/usr/lib/ambari-server/lib/ambari_simplejson/scanner.py", line 93, in scan_once    return _scan_once(string, idx)  File "/usr/lib/ambari-server/lib/ambari_simplejson/scanner.py", line 51, in _scan_once    raise JSONDecodeError(errmsg, string, idx)ambari_simplejson.errors.JSONDecodeError: Expecting value: line 1 column 1 (char 0)
Copy

Workaround: Uninstall all the ambari-mpacks.

Bash


ambari-server uninstall-mpack --mpack-name=<installed mpack>
Copy
