Native SSL/TLS Support for Pulse Web UI

This document explains how to enable SSL/TLS support for Pulse Web UI without using ad-proxy (Traefik) container.

Variable Name	Default Name	Mandatory?	Description
SSL_ENFORCED	True	Yes	Allows you to enforce the use of HTTPS for the UI port inside the container, (This implies that the HTTP port would be disabled).
SSL_ENABLED	False	Yes	Allows you to enable the HTTPS for the UI port inside the container along with the HTTP port.
SSL_KEYDIR	`/etc/acceldata/ssl/`	Yes	Directory inside the container to look for the SSL/TLS key file.
SSL_KEYFILE	ssl.key	Yes	Name of the SSL/TLS key file inside the container.
SSL_CERTDIR	`/etc/acceldata/ssl/`	Yes	Directory inside the container to look for the SSL/TLS cert file.
SSL_CERTFILE	ssl.crt	Yes	Name of the SSL/TLS cert file inside the container.
SSL_PASSPHRASE		Optional	Specify the passphrase for the SSL/TLS key file.
SSL___SERVER_PORT	8443	Yes	The Docker port has to be set to 8443 as this is the only port that is exposed from Docker.

Generate the ad-core services configuration if not available.
1. Check for the existing ad-core services config file by executing the following command.

Bash


ls -lha $AcceloHome/config/docker/ad-core.yml
Copy

b. If the above file is available navigate to step 2.

c. If the above file is not available, generate one using the following command.

Bash


accelo admin makeconfig ad-core
Copy

Edit the ad-core.yml file that's generated by the above command. You should see the path once the file is generated.

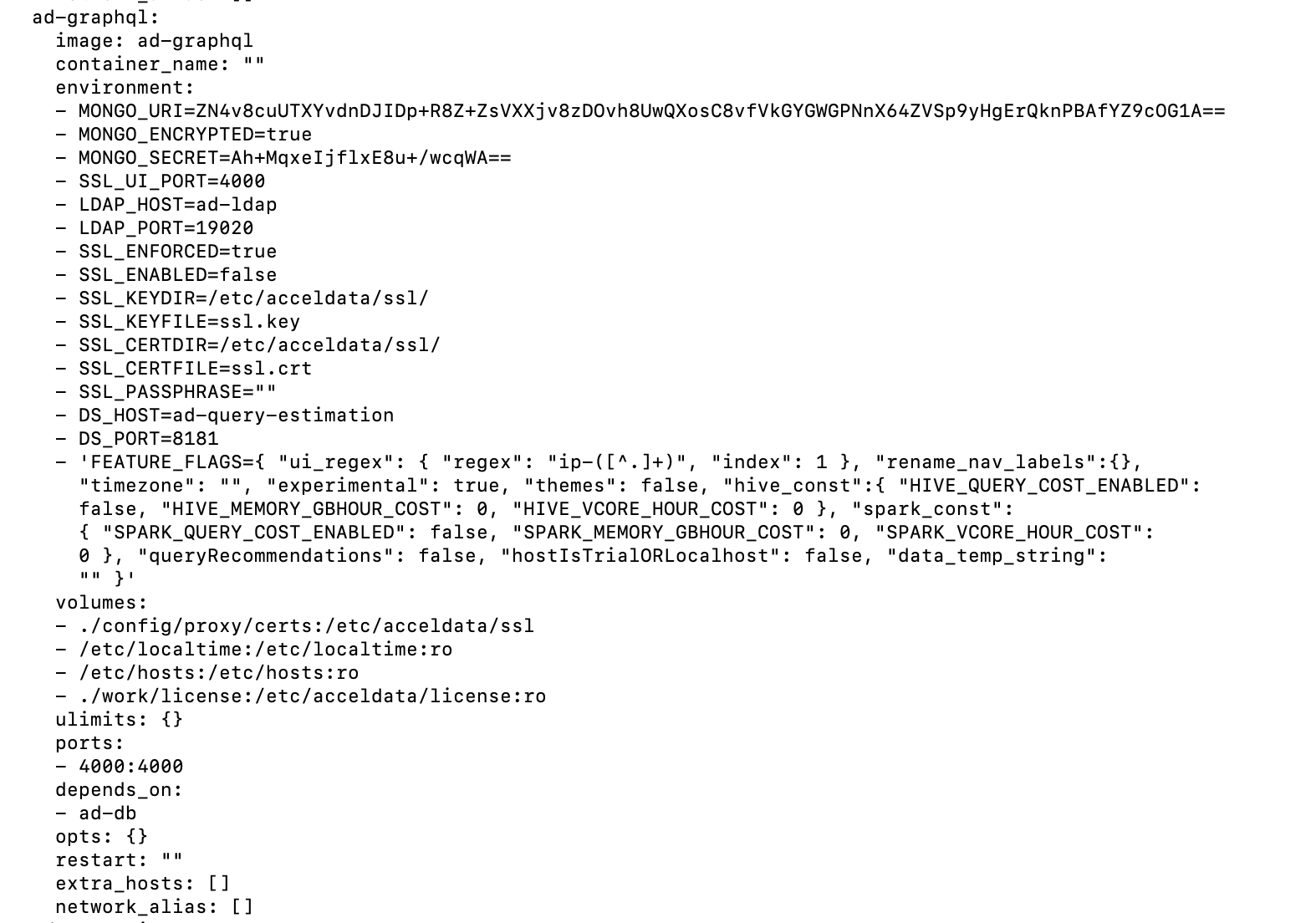

Look for the section ad-graphql and find for the subsection environment as shown below:

Bash


accelo restart ad-graphql
Copy

Bash


docker logs -f ad-graphql_default
Copy

If there aren’t any visible errors logged, the service is successfully launched.
Access the Pulse Web UI URL with https protocol via your browser.
