Amazon | RDS MySQL

Amazon Relational Database Service (RDS), offered by Amazon Web Services (AWS), is a managed database service simplifying the setup and operation of scalable relational databases in the AWS cloud. Supporting various database engines, it handles numerous management tasks like data migration, backup, recovery, and patching. This allows administrators to concentrate on more strategic responsibilities.

Amazon RDS MySQL in ADOC

ADOC provides data reliability capability for data stored in your Amazon RDS MySQL data source. You must create a data plane or use an existing data plane to add Amazon RDS MySQL as a data source in ADOC. Once you add Amazon RDS MySQL as a data source, you can view the details of your assets in Amazon RDS MySQL database in the Data Reliability tab in ADOC.

Steps to Add Amazon RDS MySQL as a Data Source

To add Amazon RDS MySQL as a data source:

1. Click Register from the left pane.
2. Click Add Data Source.

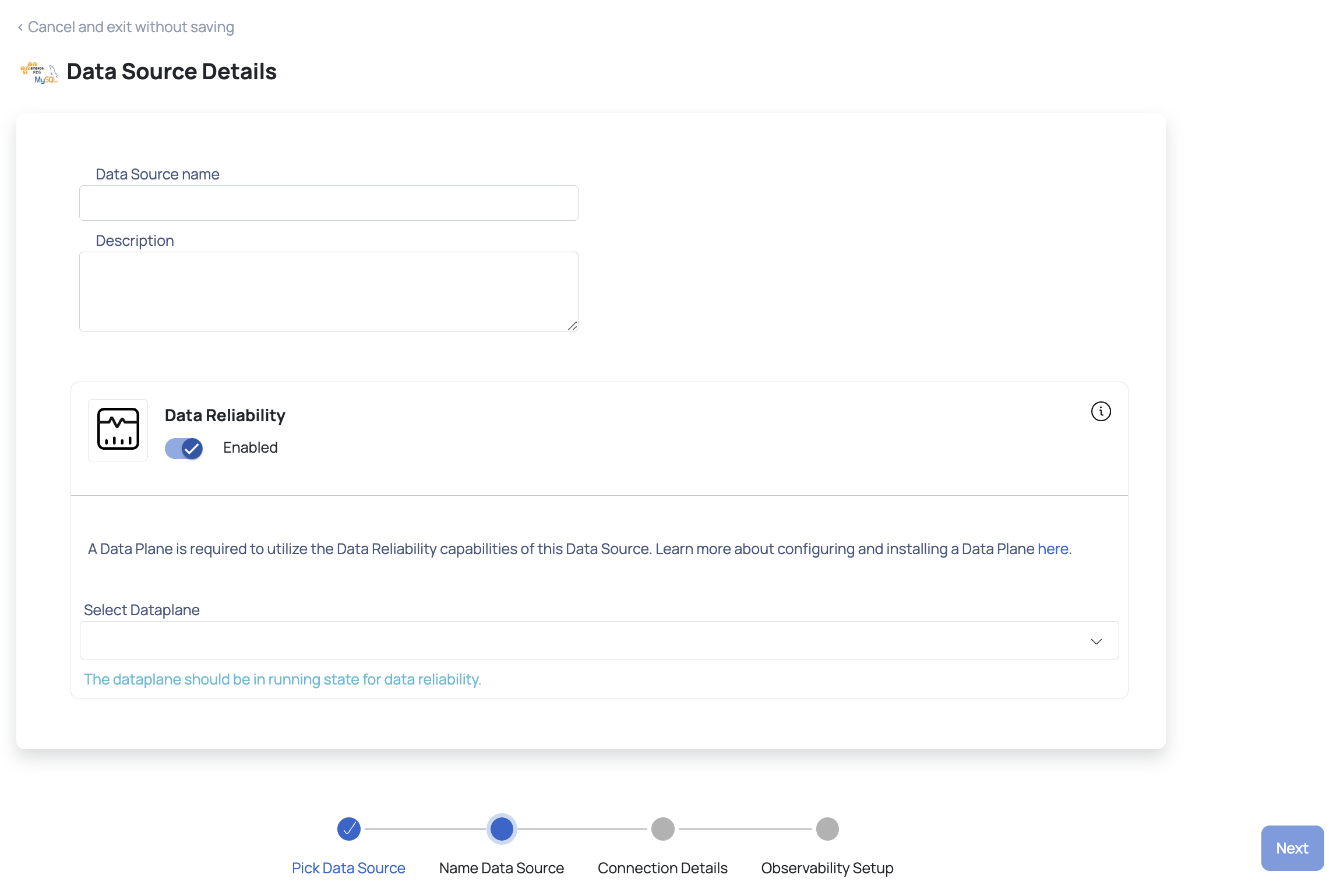

3. Select the Amazon RDS MySQL Data Source. The Amazon RDS MySQL Data Source basic Details page is displayed.

4. Enter a name for the data source in the Data Source name field.
5. (Optional) Enter a description for the Data Source in the Description field.
6. Select a Data Plane from the Select Data Plane drop-down menu.

To create a new Data Plane, click Setup Dataplane.

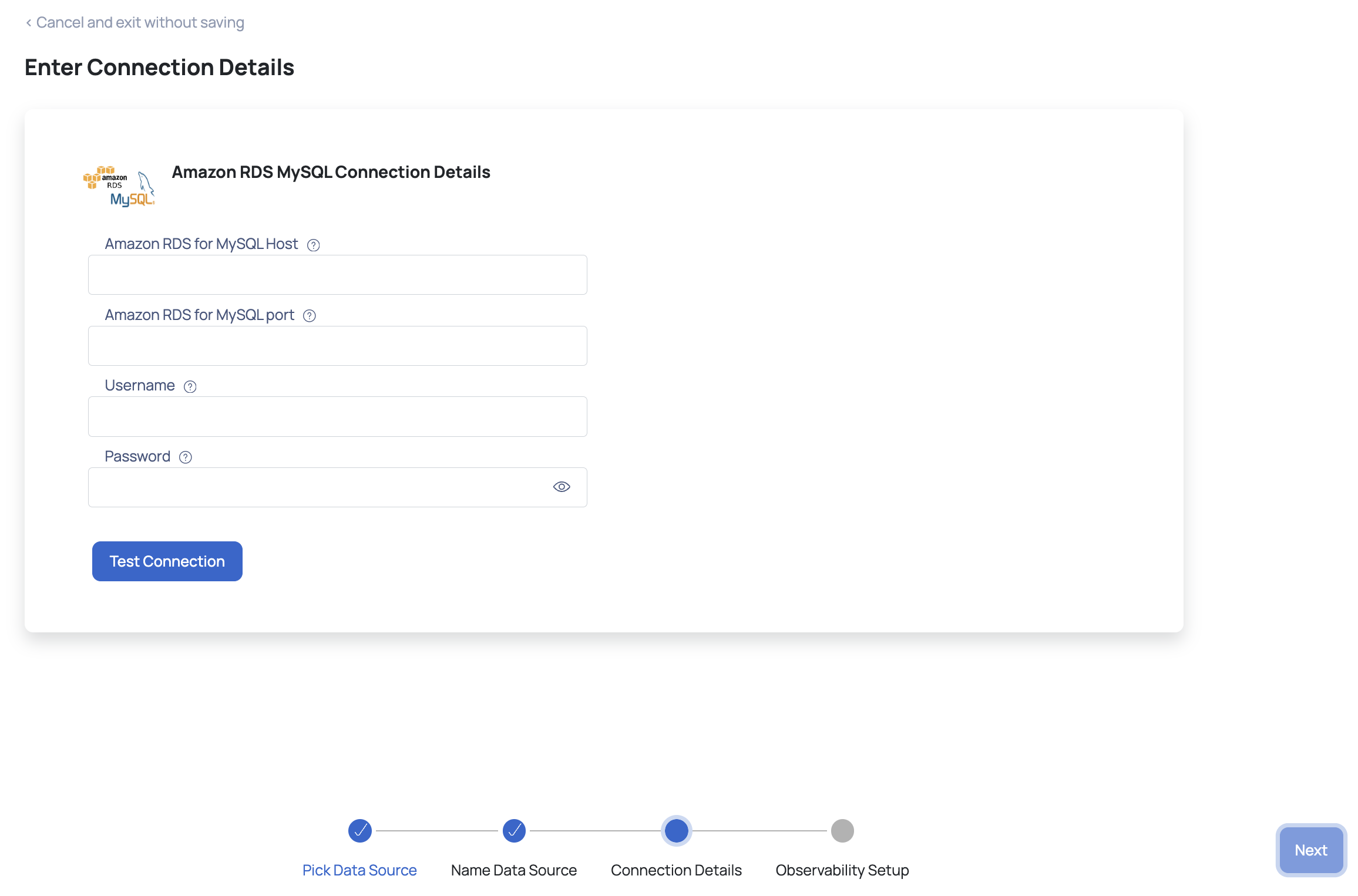

7. Click Next. The Amazon RDS MySQL Connection Details page is displayed.

9. Enter your Amazon RDS MySQL host in the Amazon RDS for MySQL Host field.
10. Enter your Amazon RDS MySQL port in the Amazon RDS for MySQL port field.
11. Enter your Amazon RDS MySQL username in the Username field.
12. Enter your Amazon RDS MySQL password in the Password field.

14. Click Test Connection. If your credentials are valid, you receive a Connected message. If you get an error message, validate the Amazon RDS MySQL credentials you entered.

15. Click Next. The Observability Setup page is displayed.
16. Enable Crawler Execution Schedule: Turn on this toggle switch to select a time tag and time zone to schedule the execution of crawlers for Data Reliability.
17. Click Submit.

Amazon RDS MySQL is now added as a Data Source. You can choose to crawl your Amazon RDS MySQL account now or later.

You can see that a new card is created for Amazon RDS MySQL on the data sources page. This card displays the total cost for current month, crawler status and other details of your Amazon RDS MySQL data source.
