Native SSL/TLS Support for Pulse Web UI

This document explains how to enable SSL/TLS support for Pulse Web UI without using ad-proxy (Traefik) container.

SSL Configurations/Options Table

Variable Name

Default Name

Mandatory?

Description

SSL_ENFORCED

True

Yes

Allows you to enforce the use of HTTPS for the UI port inside the container, (This implies that the HTTP port would be disabled).

SSL_ENABLED

False

Yes

Allows you to enable the HTTPS for the UI port inside the container along with the HTTP port.

SSL_KEYDIR

/etc/acceldata/ssl/

Yes

Directory inside the container to look for the SSL/TLS key file.

SSL_KEYFILE

ssl.key

Yes

Name of the SSL/TLS key file inside the container.

SSL_CERTDIR

/etc/acceldata/ssl/

Yes

Directory inside the container to look for the SSL/TLS cert file.

SSL_CERTFILE

ssl.crt

Yes

Name of the SSL/TLS cert file inside the container.

SSL_PASSPHRASE

Optional

Specify the passphrase for the SSL/TLS key file.

SSL___SERVER_PORT

8443

Yes

The Docker port has to be set to 8443 as this is the only port that is exposed from Docker.

Configuration Steps

  • Generate the ad-core services configuration if not available.
    • Check for the existing ad-core services config file by executing the following command.
ls -lha $AcceloHome/config/docker/ad-core.yml

b. If the above file is available navigate to step 2.

c. If the above file is not available, generate one using the following command.

accelo admin makeconfig ad-core
  • Edit the ad-core.yml file that's generated by the above command. You should see the path once the file is generated.

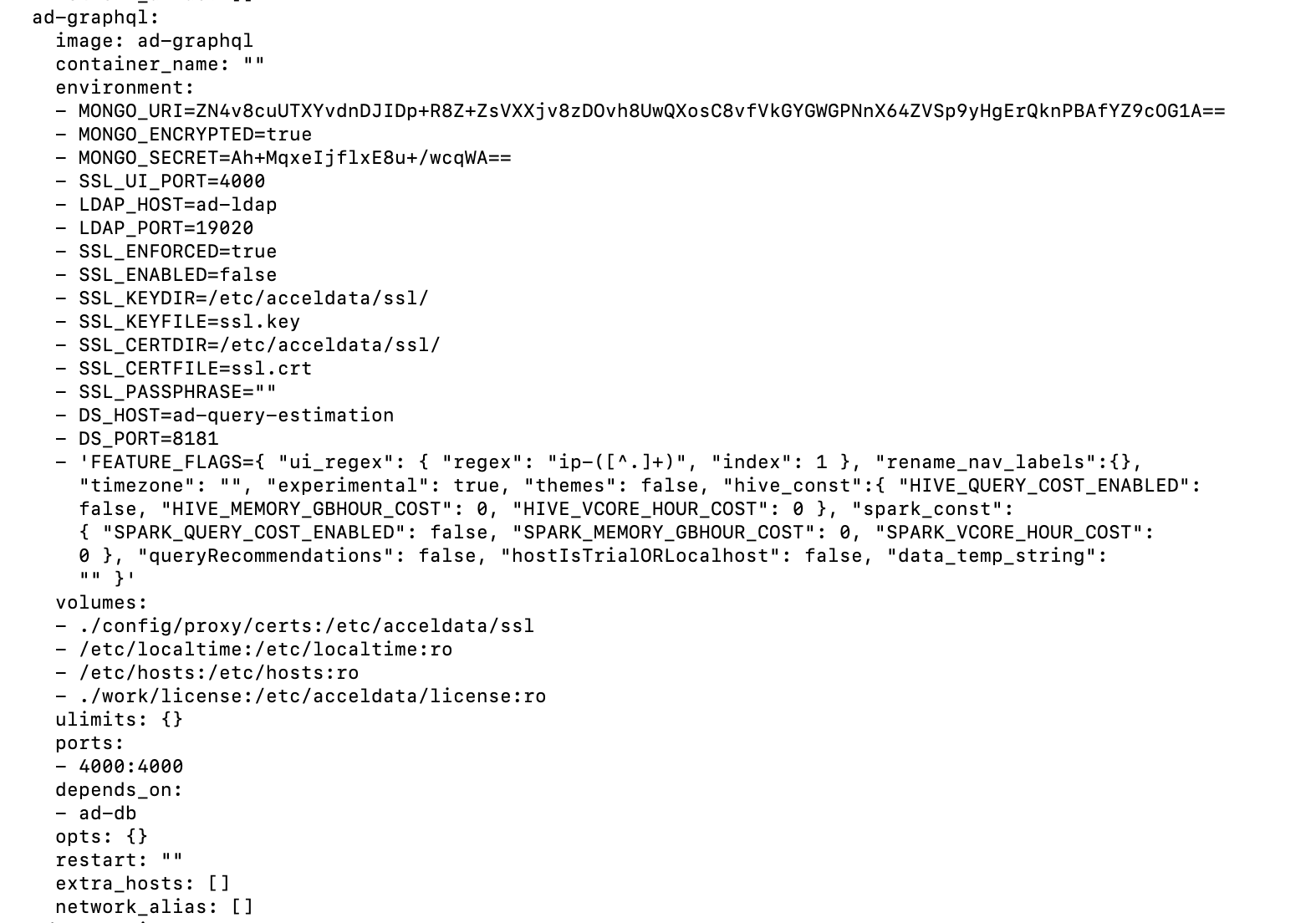

  • Look for the section ad-graphql and find for the subsection environment as shown below:
  • Save and close the ad-core.yml file.
  • Restart the ad-graphql service by executing the following command.
accelo restart ad-graphql
  • Check if there are any errors in the ad-graphql service container logs.
docker logs -f ad-graphql_default
  • If there aren’t any visible errors logged, the service is successfully launched.
  • Access the Pulse Web UI URL with https protocol via your browser.
