Context Switching in Heterogeneous Pipelines
Introduction
In some ETL pipelines, it is possible to have a DAG dependent on another. In such cases, you may want to represent and track both DAGs as part of a single pipeline in ADOC. This article will describe how one can achieve that.
Summary
This guide demonstrates a context switching between two ETL pipelines.

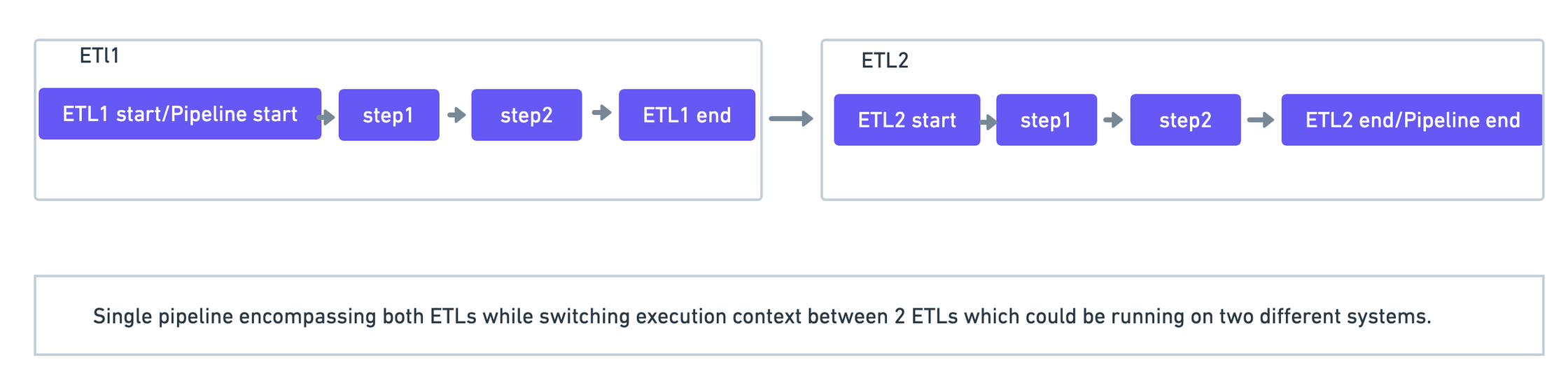

In this example scenario, the ADOC pipeline run begins in dag 1 and ends in dag 2.
DAG1
In dag1 override_success_callback=True is set in the DAG ensuring that the new pipeline_run is not closed at the end of dag1. In addition to that, continuation_id is passed in the TorchInitializer task which will be used to link this run of dag1 to a specific run of dag2.
dag = DAG( dag_id='demo_donot_end_pipeline_run', schedule_interval=None, default_args=default_args, start_date=datetime(2022, 5, 11), on_success_callback=_send_success_event, on_failure_callback=_send_failure_event, override_success_callback=True, override_failure_callback=True)torch_initializer_task = TorchInitializer( task_id='torch_pipeline_initializer', pipeline_uid=pipeline_uid, pipeline_name=pipeline_name, continuation_id=continuation_id, dag=dag, meta=PipelineMetadata(owner='Demo', team='demo_team', codeLocation='...')DAG2
In dag2, create pipeline=False is set in the TorchInitializer task, ensuring that when TorchInitializer is called in dag2, a new pipeline run is not started. The dag2TorchInitializer task is passed the same continuation_id as dag1, which will be used to link this run of dag2 to the run of dag1.
dag = DAG( dag_id='demo_donot_start_pipeline_run', schedule_interval=None, default_args=default_args, start_date=datetime(2022, 5, 11), on_success_callback=_send_success_event, on_failure_callback=_send_failure_event)# create_pipeline=False ensures that a new pipeline_run is not started when TorchInitializer is calledtorch_initializer_task = TorchInitializer( task_id='torch_pipeline_initializer', pipeline_uid=pipeline_uid, pipeline_name=pipeline_name, dag=dag, continuation_id=f"{{{{ task_instance.xcom_pull(key='continuation_id') }}}}", create_pipeline=False)Conclusion
In this guide, we learnt how to write an Airflow DAG when the ADOC pipeline run is not closed at the end of the dag run and the same pipeline run is continued in another and context is passed between both dags.
Here is an example demonstrating a context switch happening between two Airflow DAGs. This is a working code example that you can test on your own.
