Backup Mpack Configuration

Before starting the Ambari and ODP upgrade, ensure that all cluster services are healthy and functioning as expected.

Prerequisites

Before performing the backup, verify that you have access to the Ambari server and the required permissions to execute scripts.

Configuration backup

• Clone the CE utilities repository:

git clone https://github.com/acceldata-io/ce-utils.git

• Navigate to the ODP scripts directory and grant execute permission to the script.

cd  ce-utils/ODP/scripts/
chmod +x config_backup_restore.sh

• Run the configuration backup script.

./config_backup_restore.sh

Response

Usage: ./config_backup_restore.sh
Cluster Name: odp32332-exp

┌─────────────────────────────────────────────────┐
│ Select an option:                                 │
├─────────────────────────────────────────────────┤
[1] 🔄 Backup individual service configurations   │
[2] 🔄 Restore individual service configurations  │
└─────────────────────────────────────────────────┘
Enter your choice [1-2]: 1

Choosen [1]
│      Backup Service Configurations           │
└──────────────────────────────────────────────┘
1) 🎨 Hue
2) 🦌 Impala
3) ☕ Kafka
4) 🛡️ Ranger
5) 🔑 Ranger KMS
6) ⚡ Spark3
7) 🎛️ NiFi
8) 🏷️ NiFi Registry
9) 📜 Schema Registry
10) 📂 HTTPFS
11) 🐐 Kudu
12) 📓 Jupyter
13) 🦩 Flink
14) 🧙 Druid
15) 🌬️ Airflow
16) 🌍 Ozone
17) ☕ Kafka3
18) 🍷 Pinot
19) 🏦 ClickHouse
20) 🤖 MLflow
21) 🔄 All (Backup configurations of all services like Hue, Impala, Kafka, Ranger, Ranger KMS, NiFi, NiFi Registry, Schema Registry, HTTPFS, Kudu, Jupyter, Flink, Druid, Airflow, Ozone, Pinot, Kafka3, ClickHouse, MLflow)
Q) Quit
Enter your choice [1-22, Q]: 21

Choosen 'All':

The backup files are stored in the upgrade_backup/ directory under the current working directory.

Example:

ls -lrth upgrade_backup/

Response:

[root@expup01 scripts]# ls  upgrade_backup/
admin-properties                  kudu-tablet-stable-advanced
airflow-admin-site                kudu-unstable
airflow-api-site                  livy3-client-conf
airflow-atlas-site                livy3-conf
airflow-celery-site               livy3-env
airflow-cli-site                  livy3-log4j-properties
airflow-core-site                 livy3-spark-blacklist
airflow-dask-site                 llama-site
airflow-database-site             log4j2
airflow-elasticsearch-site        mlflow-conf
airflow-email-site                nifi-ambari-config
airflow-env                       nifi-ambari-ssl-config
airflow-githubenterprise-site     nifi-authorizers-env
airflow-hive-site                 nifi-bootstrap-env
airflow-kerberos-site             nifi-bootstrap-notification-services-env
airflow-kubernetes_executor-site  nifi-env
airflow-kubernetessecrets-site    nifi-flow-env
airflow-kubernetes-site           nifi-login-identity-providers-env
airflow-ldap-site                 nifi-properties
airflow-lineage-site              nifi-registry-ambari-config
airflow-logging-site              nifi-registry-ambari-ssl-config
airflow-mesos-site                nifi-registry-authorizers-env
airflow-metrics-site              nifi-registry-bootstrap-env
airflow-openlineage-site          nifi-registry-env
airflow-operators-site            nifi-registry-identity-providers-env
airflow-scheduler-site            nifi-registry-logback-env
airflow-smtp-site                 nifi-registry-properties
airflow-webserver-site            nifi-registry-providers-env
atlas-tagsync-ssl                 nifi-state-management-env
clickhouse-application            ozone-core-site
clickhouse-client-config          ozone-env
clickhouse-enable-keeper          ozone-log4j-datanode
clickhouse-env                    ozone-log4j-om
clickhouse-keeper-config          ozone-log4j-properties
clickhouse-macros                 ozone-log4j-recon
clickhouse-network-and-logging    ozone-log4j-s3g
clickhouse-remote-servers         ozone-log4j-scm
clickhouse-server-config          ozone-site
clickhouse-use-keeper             ozone-ssl-client
clickhouse-users                  pinot-admin-log4j2
cruise-control3                   pinot-broker-conf
cruise-control3-capacity          pinot-broker-log4j2
cruise-control3-capacityCores     pinot-controller-conf
cruise-control3-capacityJBOD      pinot-controller-log4j2
cruise-control3-clusterConfigs    pinot-env
..
..
..

---

Backup Backend Databases

Before upgrading, create backups of all related service databases.

## for ambari
mysqldump --databases ambari > ambari_mysql_db_backup.sql

## for hive
mysqldump --databases hive > hive_mysql_db_backup.sql

## for oozie
mysqldump --databases oozie > oozie_mysql_db_backup.sql

## for ranger
mysqldump --databases ranger > ranger_mysql_db_backup.sql

## for rangerkms
mysqldump --databases rangerkms > rangerkms_mysql_db_backup.sql

## for druid
mysqldump --databases druid > druid_mysql_db_backup.sql

## for registry
mysqldump --databases registry > registry_mysql_db_backup.sql

Example:

[root@expup01 ODP-server_db_bckp]# ls -lrth
total 64M
-rw-r--r-- 1 root root  56M Nov  4 12:15 ambari_mysql_db_backup.sql
-rw-r--r-- 1 root root 266K Nov  4 12:15 hive_mysql_db_backup.sql
-rw-r--r-- 1 root root  18K Nov  4 12:15 oozie_mysql_db_backup.sql
-rw-r--r-- 1 root root 8.6M Nov  4 12:15 ranger_mysql_db_backup.sql
-rw-r--r-- 1 root root 5.6K Nov  4 12:15 rangerkms_mysql_db_backup.sql
-rw-r--r-- 1 root root  11K Nov  4 12:16 druid_mysql_db_backup.sql
-rw-r--r-- 1 root root  777 Nov  4 12:16 nifi_mysql_db_backup.sql
-rw-r--r-- 1 root root  14K Nov  4 12:17 registry_mysql_db_backup.sql

---

Remove Mpack Services from Ambari

Stop the Service

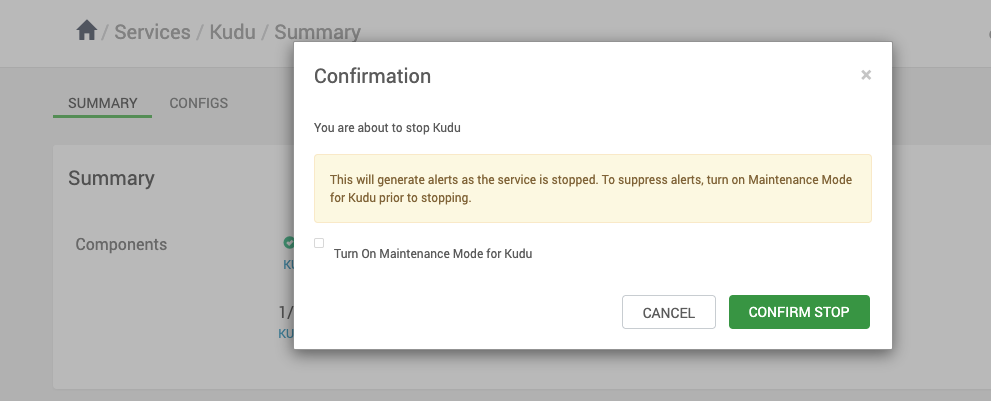

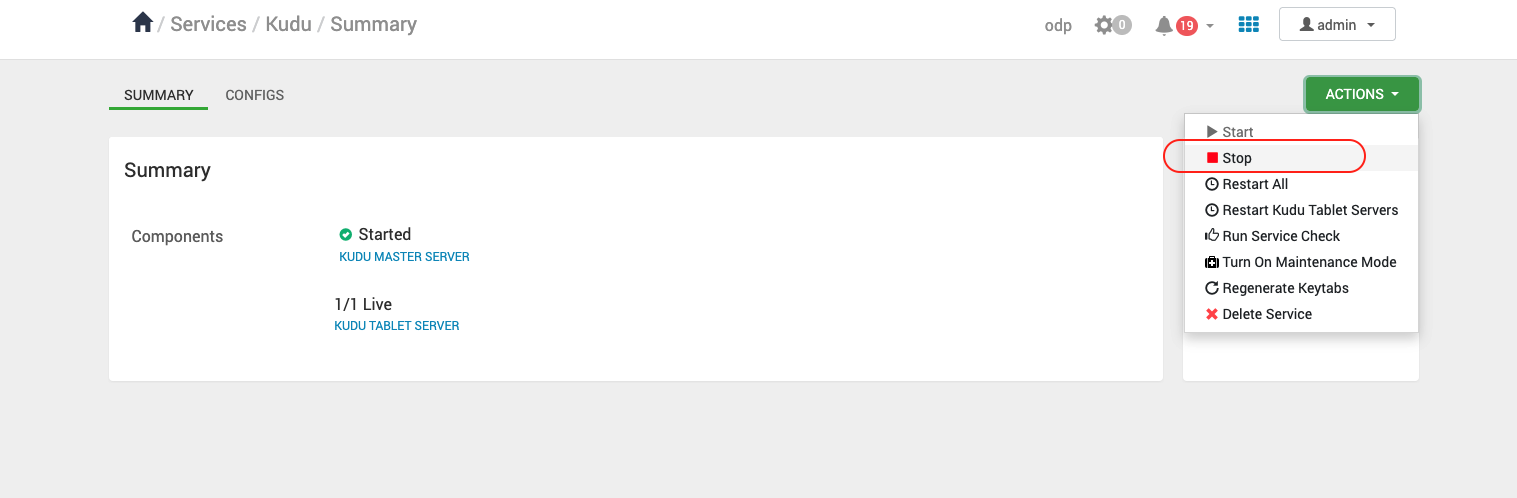

In the Ambari UI, select a service from the left pane, go to Actions, and click Stop.

Delete the Service

In the Ambari UI, select a service from the left pane, go to Actions, and click Delete Service.
