This page describes how to configure Pulse to securely access and collect metrics from a Kafka cluster that uses SCRAM authentication and SSL encryption.
Pulse supports Kafka clusters secured with SCRAM and SSL only in ODP-managed or standalone deployments.
Configure Pulse for Kafka on the ODP cluster
To allow Pulse to securely connect to Kafka that uses Scram and SSL on an ODP cluster, follow these steps:
- Run the cluster configuration command:
accelo config cluster. - If Kafka is using SCRAM authentication, you will be prompted with the following question. Select Y and provide the full path to your SCRAM config file.
Note Copy the kafka_jass.conf file to the Pulse node and provide its location when prompted during Pulse installation.
xxxxxxxxxxIs SCRAM authentication enabled for Kafka [y_n]:YEnter full path to the SCRAM config file (eg: _root_kafkaScramJAASLogin.conf): _home_acceldata_kafka_jass.conf- If Kafka is using TLS/SSL, you will be prompted with the following question. Select Y and provide the full path to your certificates.
Note Copy the cacerts and jssecacert certificates to the Pulse node and provide its location when prompted during Pulse installation.
xxxxxxxxxxIs HTTPS Enabled in the Cluster on UI Endpoint? [Y_N]: : y Enter the Java Keystore cacerts File Path:path_to_cacertsEnter the Java Keystore jsseCaCerts File Path:_path_to_jssecacertThese prompts appear in the Accelo CLI only when Kafka in the ODP cluster is configured for SCRAM-based authentication and using TLS/SSL. Specifically, the saslenabledmechanism parameter must be set to either SCRAM-SHA-256 or SCRAM-SHA-512.> > To verify or configure this setting in ODP (Ambari):> > 1. Open the Ambari UI.> 2. Navigate to Kafka > Configs > Advanced Kafka-broker.> 3. Locate the parameter saslenabledmechanism.> 4. Ensure the value is set to either SCRAM-SHA-256 or SCRAM-SHA-512.
Configure Pulse for Standalone Kafka Cluster
SSL Configuration
When SSL is enabled for Kafka clusters, certificate handling in Acceldata Pulse involves two different consumers, and they must be configured correctly.
- Certificates for Accelo Binary
Location: $ACCELDATA_HOME/config/security/cacerts
Requirements:
- Certificates must be in PEM format
- Place all required CA / broker certificates here
Purpose:
- Used by the Accelo binary to establish secure connections with Kafka brokers
- Certificates for Kafka Connector
Format:
- Truststore (JKS/PKCS12)
- Keystore (JKS/PKCS12)
Requirements:
- Store truststore and keystore separately
- Use distinct filenames (avoid overwriting/conflicts)
Purpose:
- Used by the Kafka connector for SSL authentication and communication
To allow Pulse to securely connect to Kafka that uses Scram and SSL on a standalone cluster, follow these steps:
- Run the cluster configuration command:
accelo config cluster. - In the Deployment type, select
Stand-Alone. - Select

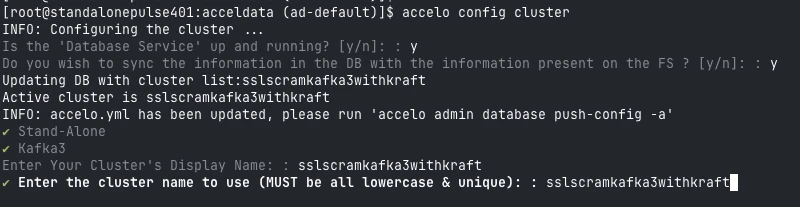

Kafka3Standalone component. - Enter
ClusterName.
- Enter

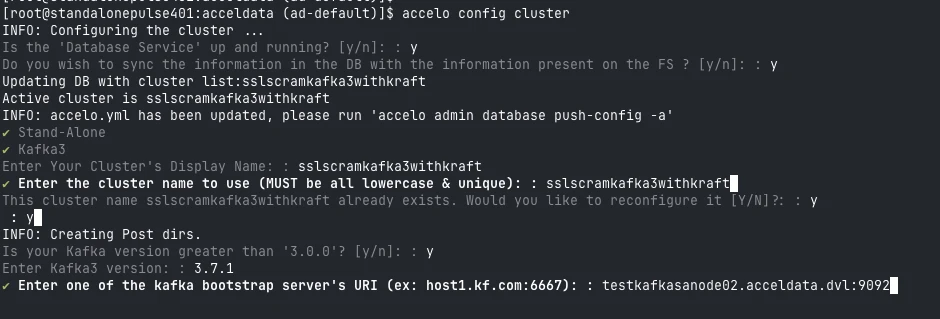

KafkaVersion. - Enter
Kafkabootstrap server’s URI.

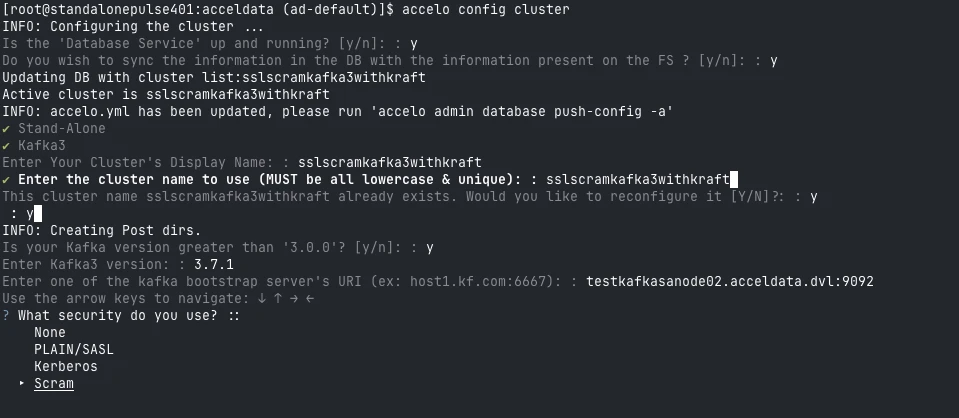

- Select
scramas the security type.

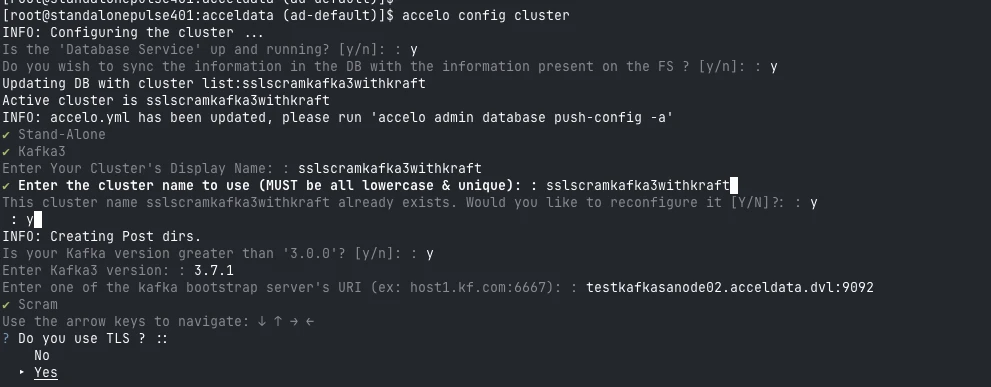

- Select
YesasTLSis being used.

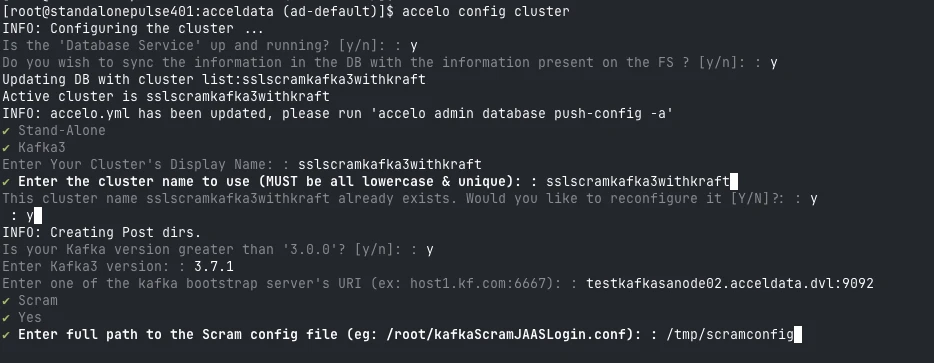

- Enter the
Scram_jaas.conffile path.

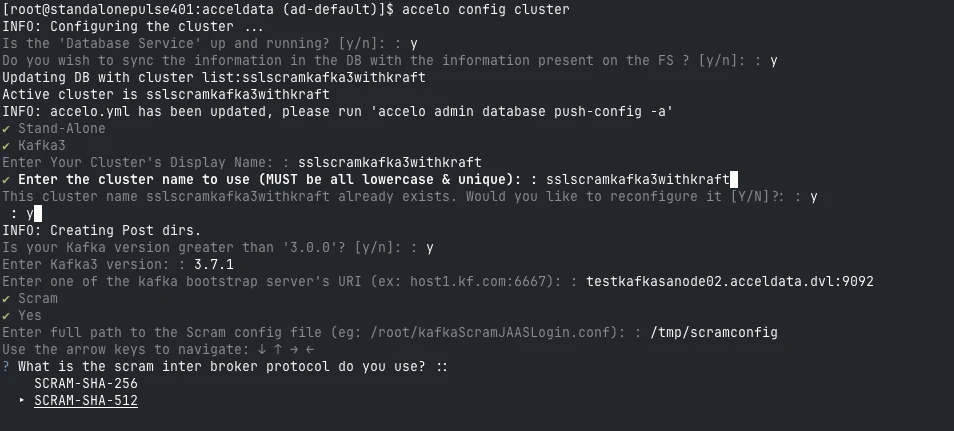

- Select the inter-broker
scram protocol.

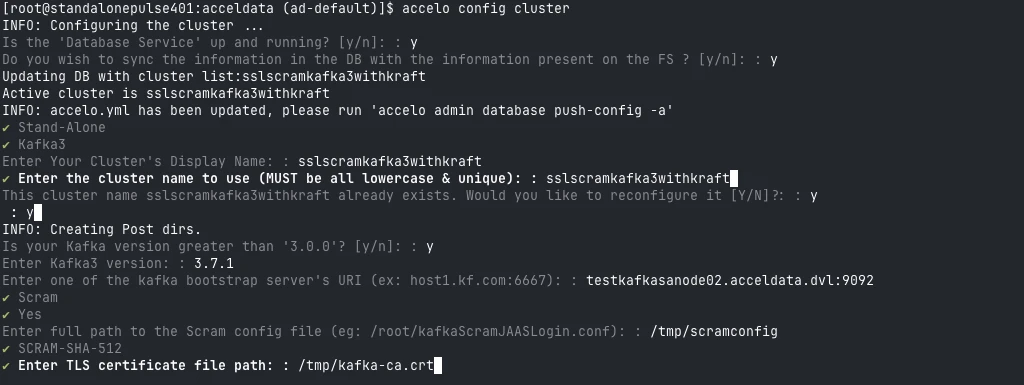

- Enter
TLScertificate file path.
Copy the cacerts and jssecacert certificates to the Pulse node and provide its location when prompted during Pulse installation.

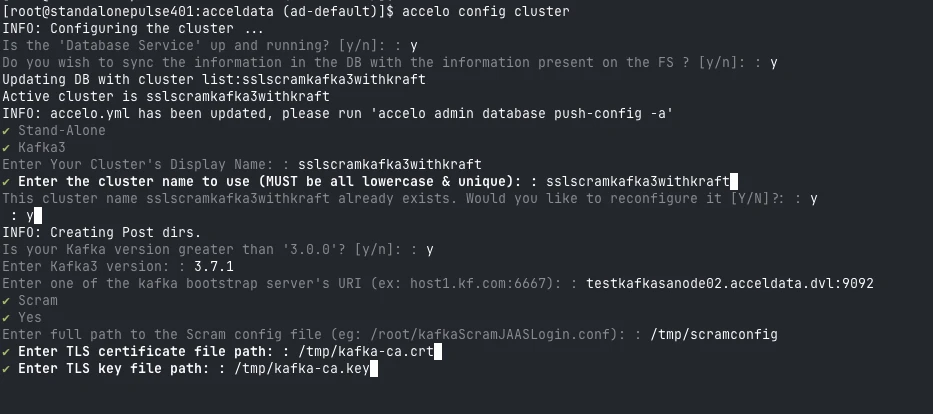

- Enter
TLSkey file path.

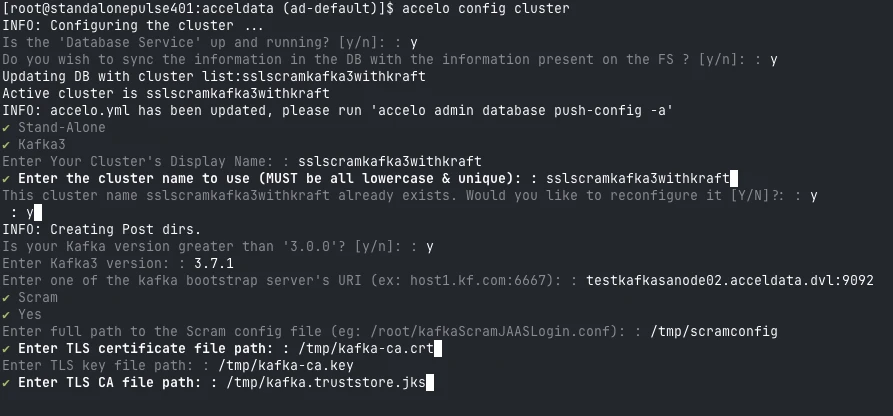

- Enter
TLS CAfile path.
- Select
Yfor certification verification.

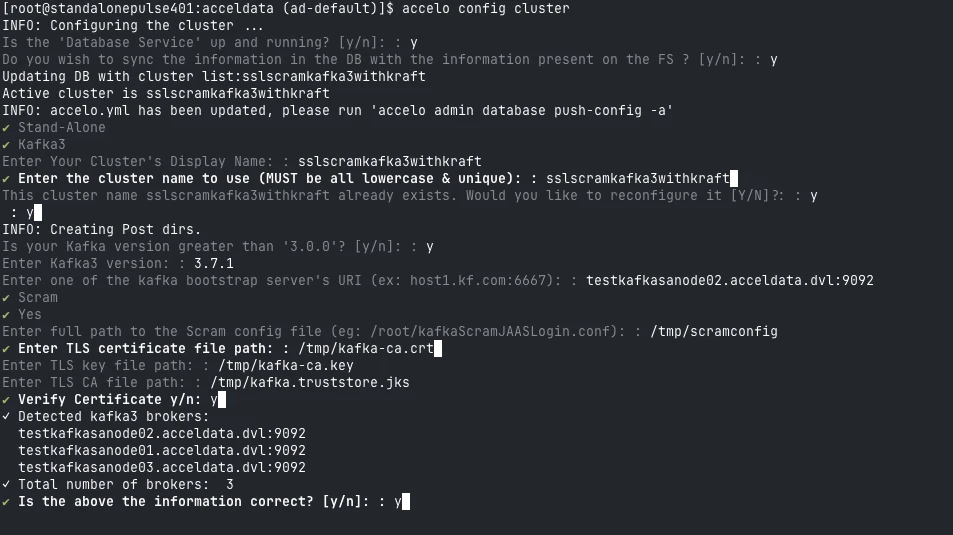

- If the above configs are correct CLI will automatically fetch the list of brokers. If the listing is correct select
y.

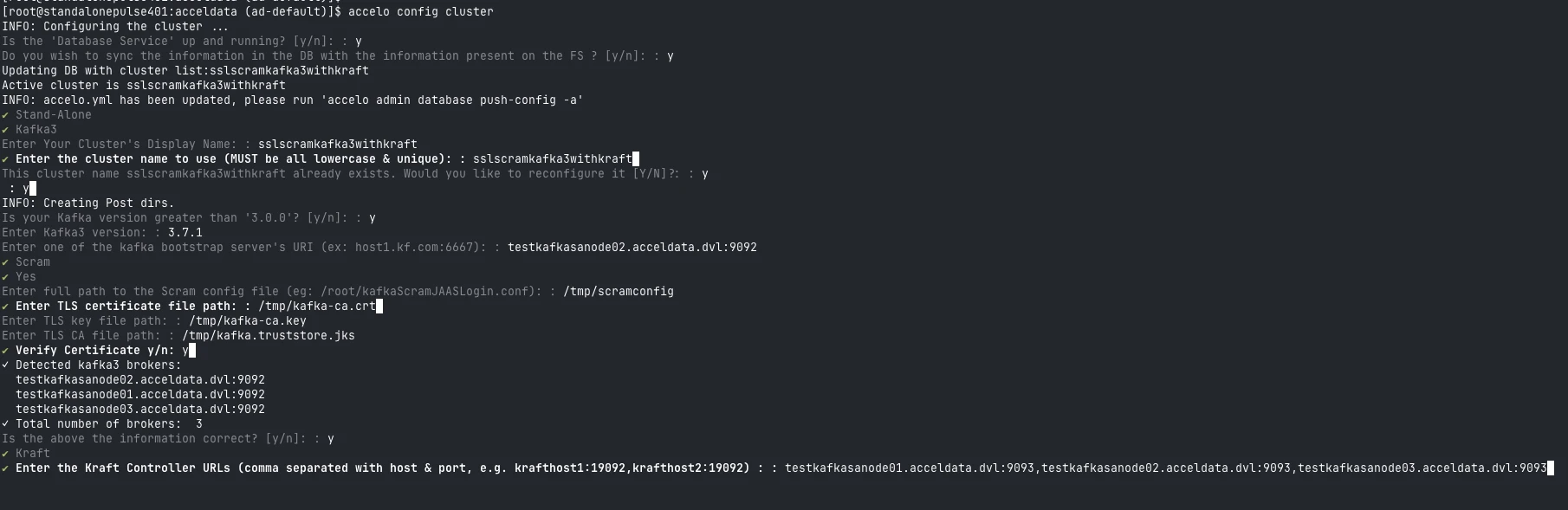

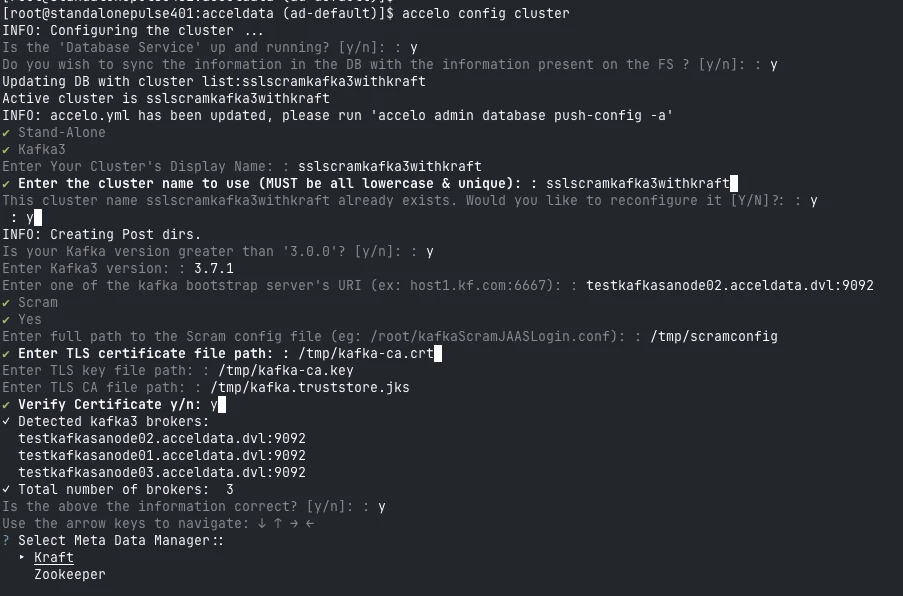

- Enter the Controller details(
zookeeper/kraft)
- Once the above configuration is done, you can proceed with
accelo deploy core.
Update Kafka Connector Configuration
- Edit the file: $AcceloHome/config/docker/addons/ad-kafka-connector.yml.
- Set the following parameters.
xxxxxxxxxxSCRAM_ENABLED = trueKERBEROS_ENABLED = falsePush the Configuration
Apply the updated configuration to the database.
xxxxxxxxxxaccelo admin database push-config -a.Troubleshooting
If you encounter the following error while configuring Kafka with SCRAM and SSL, update the ad-kafka-connector file with the specified parameters.
java.lang.RuntimeException: Unexpected error: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:104) at sun.security.validator.Validator.getInstance(Validator.java:181) at sun.security.ssl.X509TrustManagerImpl.getValidator(X509TrustManagerImpl.java:302) at sun.security.ssl.X509TrustManagerImpl.checkTrustedInit(X509TrustManagerImpl.java:176) at sun.security.ssl.X509TrustManagerImpl.checkTrusted(X509TrustManagerImpl.java:247) at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(X509TrustManagerImpl.java:141) at sun.security.ssl.CertificateMessage$T12CertificateConsumer.checkServerCerts(CertificateMessage.java:632) at sun.security.ssl.CertificateMessage$T12CertificateConsumer.onCertificate(CertificateMessage.java:473) at sun.security.ssl.CertificateMessage$T12CertificateConsumer.consume(CertificateMessage.java:369) at sun.security.ssl.SSLHandshake.consume(SSLHandshake.java:377) at sun.security.ssl.HandshakeContext.dispatch(HandshakeContext.java:444) at sun.security.ssl.SSLEngineImpl$DelegatedTask$DelegatedAction.run(SSLEngineImpl.java:981) at sun.security.ssl.SSLEngineImpl$DelegatedTask$DelegatedAction.run(SSLEngineImpl.java:968) at java.security.AccessController.doPrivileged(Native Method) at sun.security.ssl.SSLEngineImpl$DelegatedTask.run(SSLEngineImpl.java:915) at org.apache.kafka.common.network.SslTransportLayer.runDelegatedTasks(SslTransportLayer.java:443) at org.apache.kafka.common.network.SslTransportLayer.handshakeUnwrap(SslTransportLayer.java:532) at org.apache.kafka.common.network.SslTransportLayer.doHandshake(SslTransportLayer.java:381) at org.apache.kafka.common.network.SslTransportLayer.handshake(SslTransportLayer.java:301) at org.apache.kafka.common.network.KafkaChannel.prepare(KafkaChannel.java:178) at org.apache.kafka.common.network.Selector.pollSelectionKeys(Selector.java:543) at org.apache.kafka.common.network.Selector.poll(Selector.java:481) at org.apache.kafka.clients.NetworkClient.poll(NetworkClient.java:585) at org.apache.kafka.clients.admin.KafkaAdminClient$AdminClientRunnable.processRequests(KafkaAdminClient.java:1504) at org.apache.kafka.clients.admin.KafkaAdminClient$AdminClientRunnable.run(KafkaAdminClient.java:1435) at java.lang.Thread.run(Thread.java:750)Caused by: java.security.InvalidAlgorithmParameterException: the trustAnchors parameter must be non-empty at java.security.cert.PKIXParameters.setTrustAnchors(PKIXParameters.java:200) at java.security.cert.PKIXParameters.<init>(PKIXParameters.java:120) at java.security.cert.PKIXBuilderParameters.<init>(PKIXBuilderParameters.java:104) at sun.security.validator.PKIXValidator.<init>(PKIXValidator.java:102) ... 25 common frames omittedTo resolve the issue, update the following fields in the ad-kafka-connector file:
- Environment Variable
JAVA_OPTS=-Djavax.net.ssl.trustStore=_tmp_config__cacerts -Djavax.net.ssl.trustStorePassword=kafka-ssl-password -Djavax.net.ssl.trustStoreType=PKCS1- Volume Mount
xxxxxxxxxx_data01_acceldata_config_security_cacerts:_tmp_config_cacertsAfter adding the environment variable and volume mount details, the ad-kafka-connector configuration file appears as follows.
version: "2"services: ad-kafka-connector: image: ad-kafka-connector container_name: "" environment: - MONGO_URI=ZN4v8cuUTXYvdnDJIDp+R8Z+ZsVXXjv8zDOvh8UwQXqyScAm+LrS8Y9EWT8A8_30 - MONGO_ENCRYPTED=true - MONGO_SECRET=Ah+MqxeIjflxE8u+_wcqWA== - KERBEROS_ENABLED=false - OTEL_JAVAAGENT_ENABLED=false - JAVA_OPTS=-Djavax.net.ssl.trustStore=_tmp_config__cacerts -Djavax.net.ssl.trustStorePassword=kafka-ssl-password -Djavax.net.ssl.trustStoreType=PKCS12 - SCRAM_ENABLED=true volumes: - _etc_localtime:_etc_localtime:ro - _etc_hosts:_etc_hosts:ro - _data01_acceldata_config_security_cacerts:_tmp_config_cacerts ulimits: {} ports: [] depends_on: [] opts: {} restart: "" extra_hosts: [] network_alias: []label: Kafka Connector
