Deploying on On-Prem Apache Airflow
To deploy the plugin on an on-premises instance of Apache Airflow, perform the following:
1. Setup Environment Variables
Configure the required and optional environment variables for the plugin. For a detailed list of these variables and their descriptions, refer to the Configuration section.
2. Verify Airflow Version
Verify that the Airflow environment where you plan to deploy the plugin is running version 2.5.0 or later. You can check the version by running:
airflow versionConfirm if the output version is 2.5.0 or higher, such as 2.5.3.
3. Install Required Packages
Install the following package on all Airflow components: adoc_airflow_plugin.
Use the appropriate package manager or installation method for your environment to install this dependency.
4. Restart Airflow Components
Restart all Airflow components to apply the plugin changes.
5. Validate the Plugin Installation
Navigate to Admin > Plugins in your Airflow UI. Confirm that the AcceldataListenerPlugin is listed correctly, indicating successful installation.
6. Verify Instrumentation

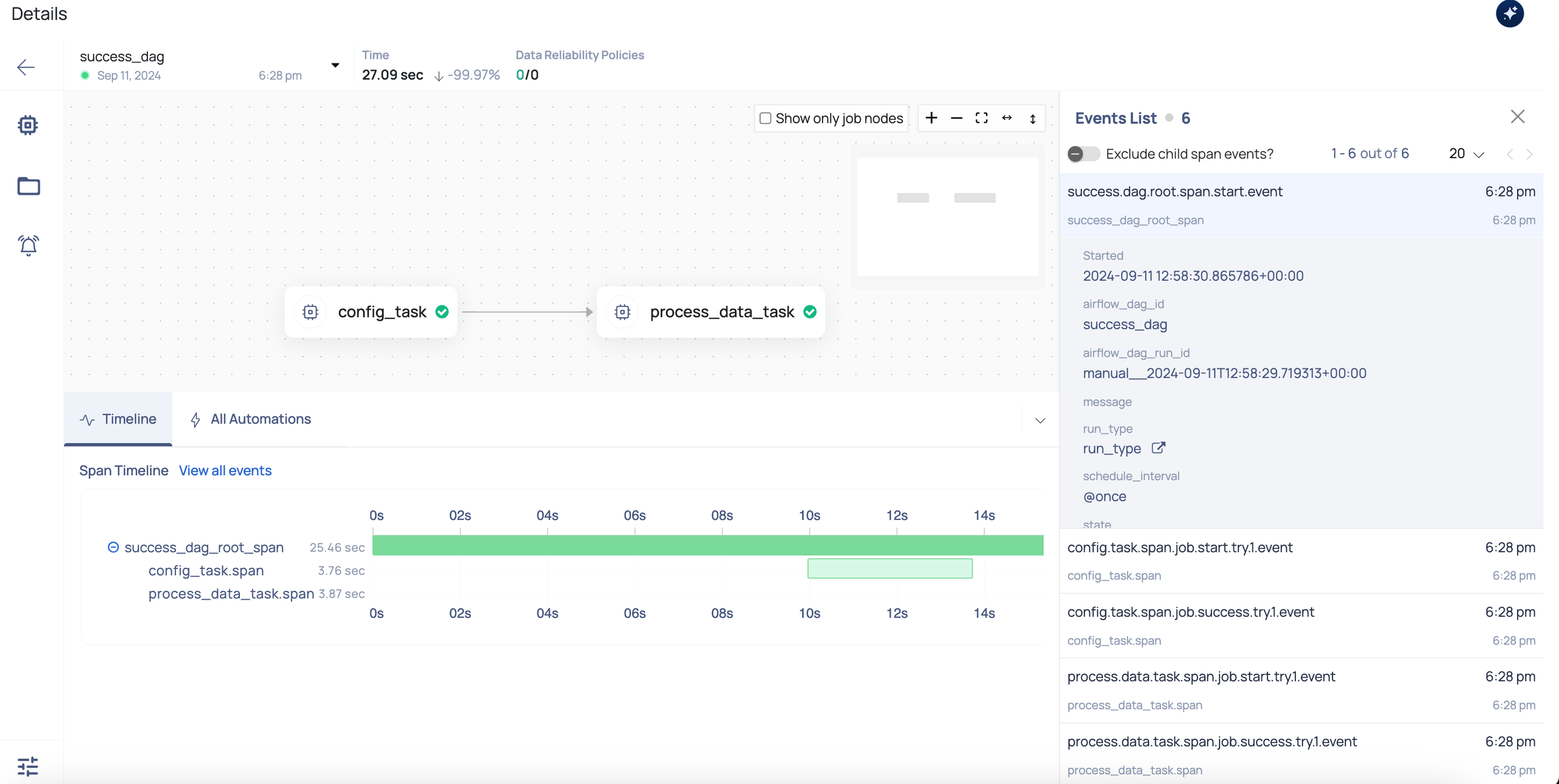

Once the plugin is installed and the environment is configured, execute a DAG in your Airflow instance. After the DAG run is complete, go to ADOC UI > Pipelines to verify successful instrumentation. Find the pipeline matching your DAG's name; it should appear with its associated spans and events, as shown in the screenshot below.
