MongoDB

This section provides a step-by-step guide on integrating MongoDB with Acceldata's Data Observability Cloud (ADOC). MongoDB, a popular NoSQL database, can be monitored and managed efficiently using ADOC's comprehensive tools.

Prerequisites

• A running MongoDB instance.
• Access credentials for MongoDB.
• ADOC installed and set up.

Add as Data Source

1. Navigate and click the


   Register icon from the left pane.

2. In the Data Source tab click on the Add Data Source button.

3. Select MongoDB from the list of available data sources.

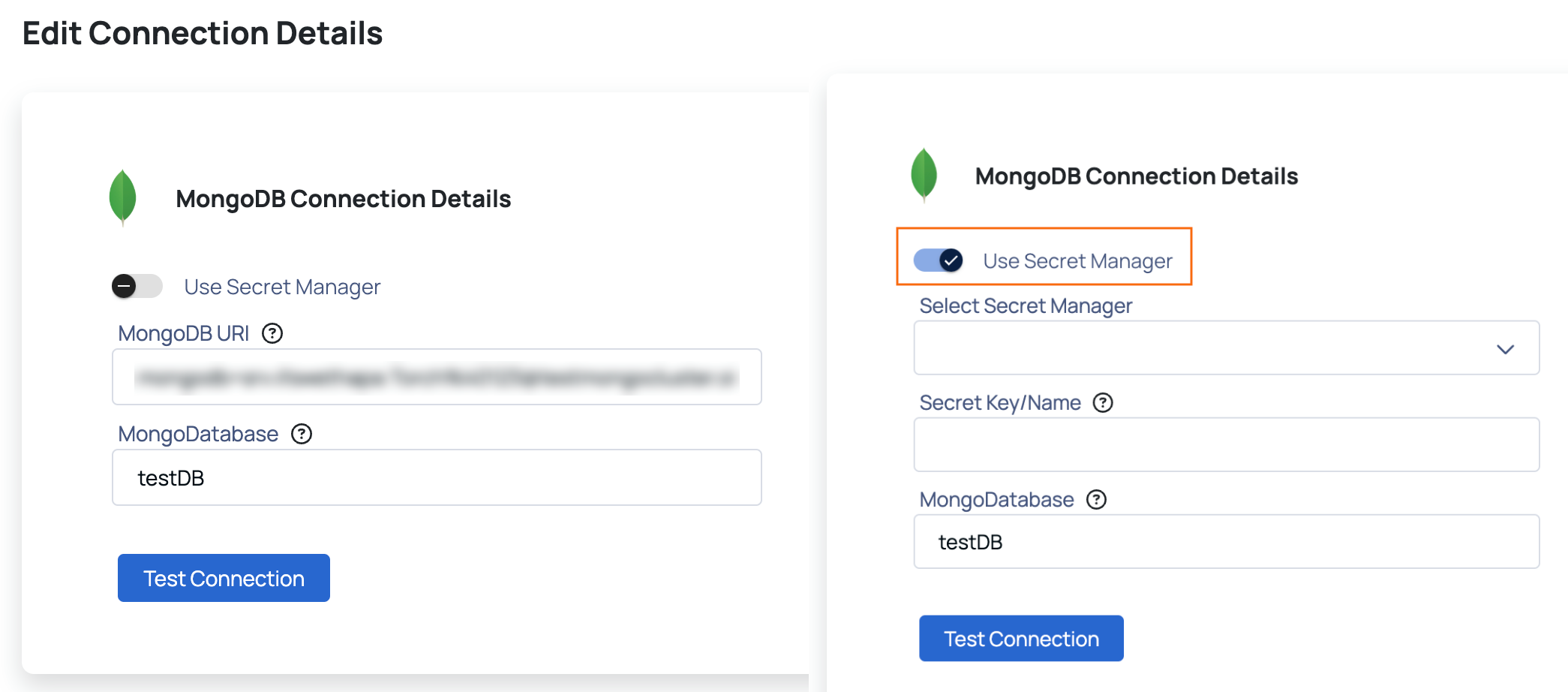

4. You can connect to your MongoDB data source using either a direct URI or through a supported secret manager:

   • Use MongoDB URI:

     • MongoDB URI: Provide the connection string for your MongoDB server.
     • MongoDatabase: Specify the name of the MongoDB database you want to connect to.

   • Use Secret Manager: Toggle on Use Secret Manager if you prefer to securely fetch the connection details from a secrets management service:

     • Select Secret Manager: Choose the configured secret manager service (such as AWS Secrets Manager, Azure, or GCS). For more information, see Secret Manager Setup for NextGen Dataplane.
     • Secret Key/Name: Enter the key or identifier used to retrieve the MongoDB connection URI from the secret manager.
     • MongoDatabase: Provide the name of the MongoDB database.

5. Click Test Connection to validate your configuration before proceeding and click Next.
6. In the Observability Setup page, provide the Database Name of the MongoDB databases to be monitored by ADOC. To add multiple databases, click +.
7. Enable Crawler Execution Schedule: Turn on this toggle switch to select a time tag and time zone to schedule the execution of crawlers for Data Reliability.
8. Click Submit to complete the integration process.

You have successfully integrated MongoDB with ADOC. You can now monitor and manage your MongoDB data efficiently using ADOC’s powerful observability tools.

After adding a new MongoDB data source, go to the Register page, click the three vertical dots, and select Start Crawler. Once crawling is complete, click the data source card to view a breakdown of the crawled data—now including both Collections and Views—along with related Data Reliability and Compute details.

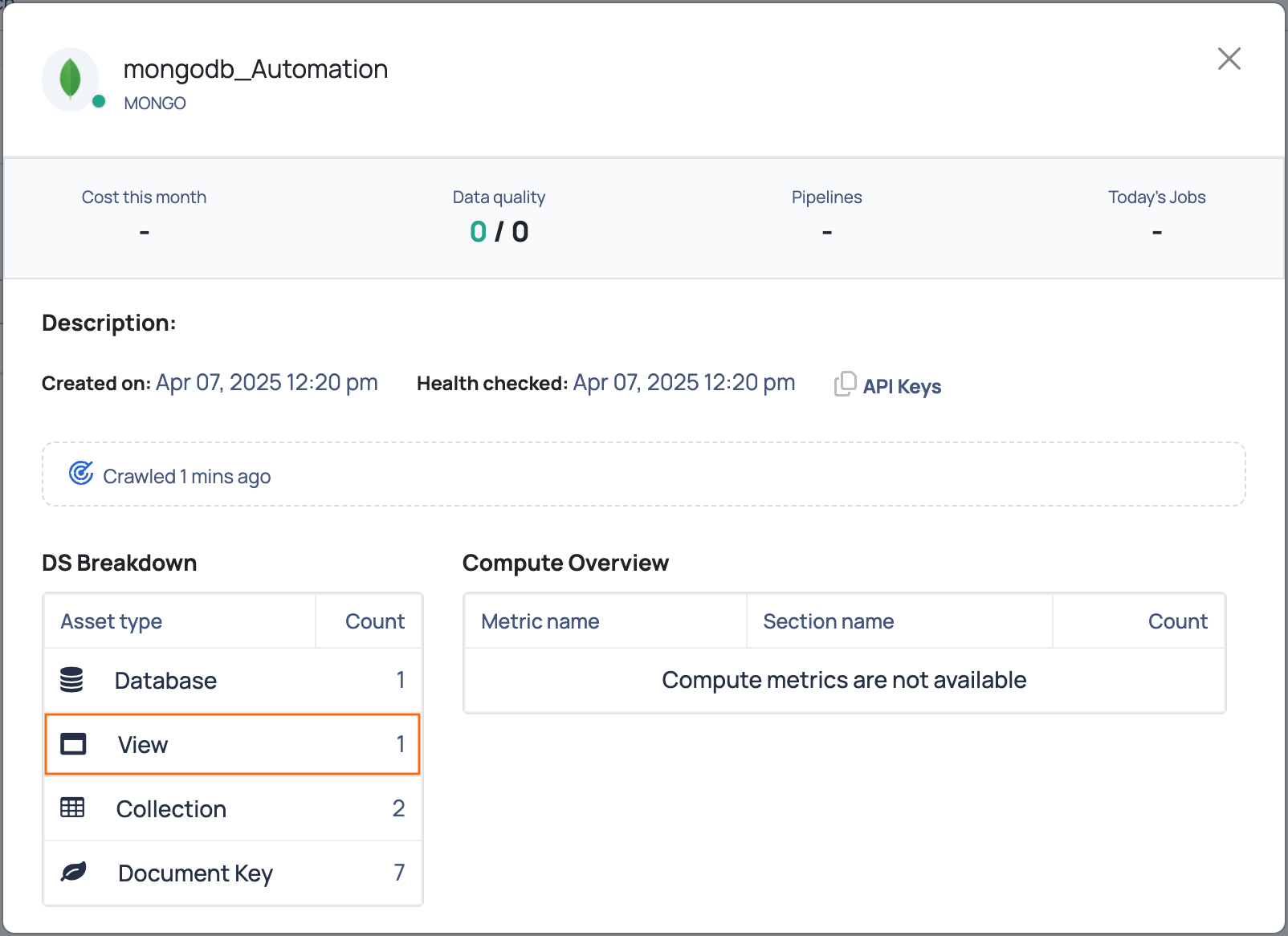

MongoDB Data Source Details

Creating SQL View for MongoDB Data Source

A custom asset in MongoDB functions similarly to a regular asset but is defined using a MongoDB aggregation pipeline query. This allows you to create SQL views on top of MongoDB collections or views, enabling custom logic to shape the data without altering the source.

For example, you can extract specific elements from arrays, rename fields, or filter data based on complex criteria. These virtual views can then be used like standard assets for data quality checks, profiling, and other processing operations.

To define a virtual asset using a MongoDB aggregation pipeline, follow these steps:

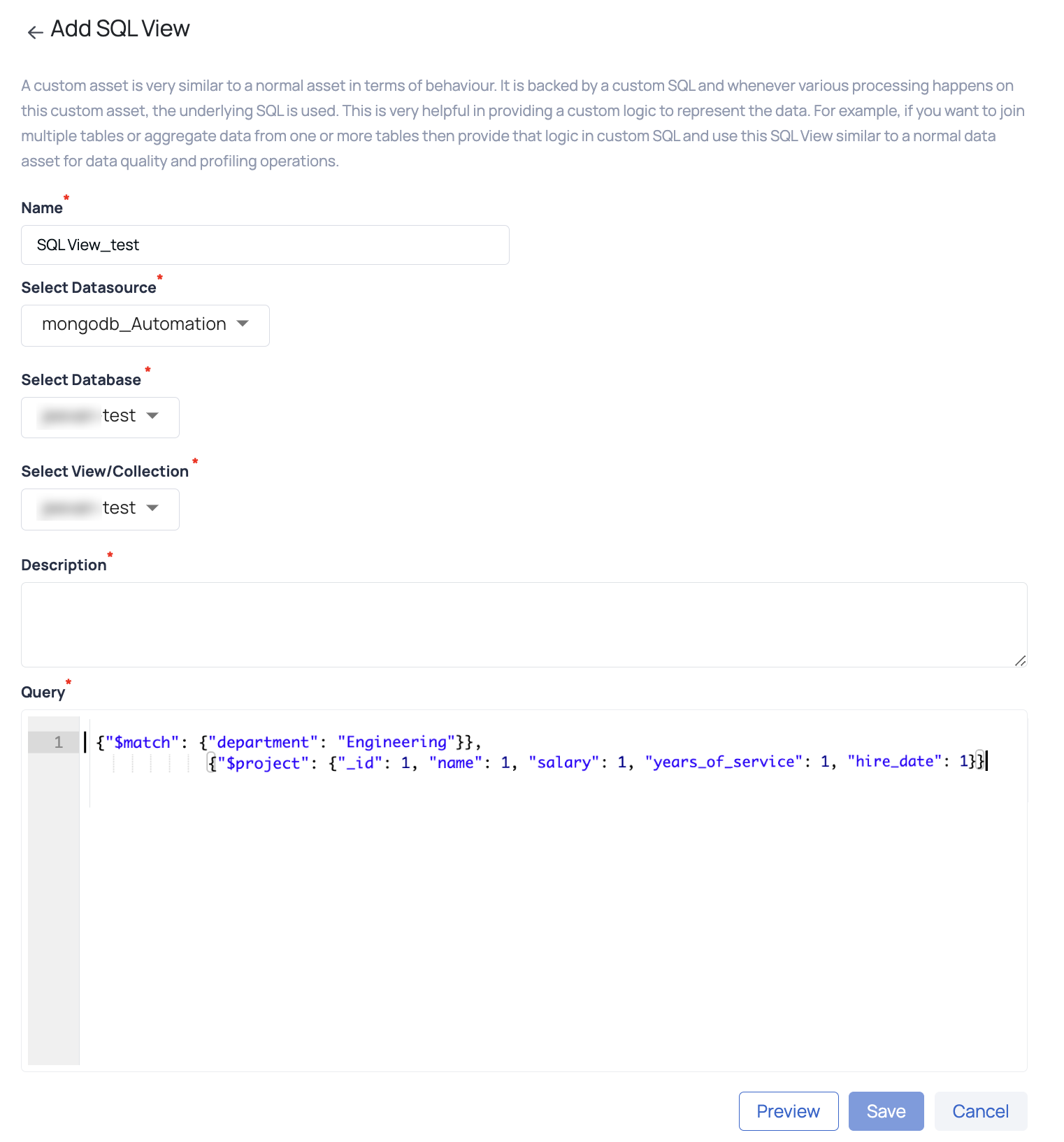

1. Navigate to the Discover Assets page in the ADOC platform.
2. Click the ⌘ (Actions) button and select Add SQL View. This opens the Add SQL View configuration page.
3. In the Name field, provide a name for your SQL View. This will represent your virtual asset within the platform.
4. Under Select Datasource, choose the appropriate MongoDB data source.
5. Select the relevant Database and the View/Collection on which you want to create the SQL View.
6. Enter a meaningful Description to help users understand the purpose or logic of the view.
7. In the Query input field, enter your MongoDB aggregation pipeline query. This query defines the logic for the virtual asset. For example:

[

  { "$match": { "department": "Engineering" } },

  { "$project": { "_id": 1, "name": 1, "salary": 1, "years_of_service": 1, "hire_date": 1 } }

]

8. Click Save to create the SQL View. Once saved, it can be used like any other data asset for data quality, profiling, or reconciliation tasks.

Control Plane Concurrent Connections and Queueing Mechanism

The ADOC Control Plane (CP) now supports a queueing mechanism for managing concurrent connections at the data source level. This feature is aimed at controlling and optimizing the execution of jobs, thereby preventing overload on customer databases and improving system performance and reliability. This guide provides an overview of how concurrent job execution is managed and queued, as well as details on the configuration process for manual and scheduled executions.

Key Features

• Concurrency Control at Datasource Level: Define the maximum number of concurrent jobs allowed for a specific data source.
• Queueing Mechanism for Jobs: Introduce a queueing mechanism to manage jobs that exceed the configured concurrency limit, ensuring smooth execution without overloading the database.
• Support for Multiple Job Types: Currently supports data quality, reconciliation, and profiling jobs.
• Flexibility in Slot Allocation: Users can set the number of available slots as per their performance needs.

Concurrency Control and Queueing Mechanism

Why Concurrency Control is Needed?

Previously, no concurrency control existed to manage numerous jobs on the Control Plane. This meant that users may submit a huge number of jobs at once, potentially overflowing their database and causing performance issues or even system breakdowns. The new concurrency management technique ensures that only a fixed number of jobs can run concurrently, with additional jobs queued.

The concurrency control and queueing mechanism has been implemented for SAP Hana data sources. The new feature allows users to set the maximum number of concurrent jobs for a particular data source. If the number of jobs triggered exceeds the defined limit, the remaining jobs are queued until a slot becomes available.

How the Mechanism Works

• Job Slots: Users can define the number of slots available for concurrent job execution for a given data source. For example, if a data source is configured with a maximum of 5 concurrent jobs, only five jobs will run simultaneously.
• Queueing Mechanism: If more than five jobs are triggered, the excess jobs are moved to a queue and marked as "waiting." As soon as a running job completes, a slot is freed, and a job from the queue is picked for execution.
• Slot Monitoring: A background service continuously monitors the availability of job slots, checking every minute to see if a queued job can be started.

Configuration

Setting Concurrent Job Limits

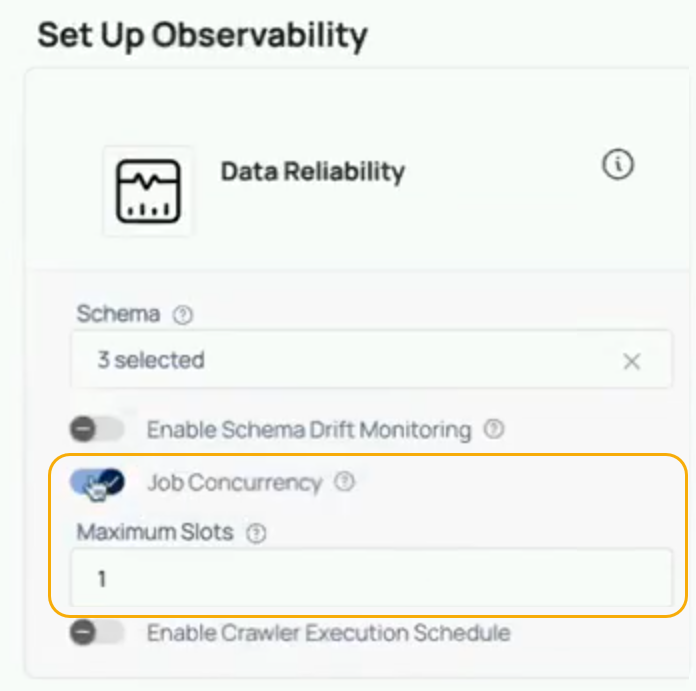

When configuring a new data source or editing an existing one, users have the option to enable job concurrency control. By default, this setting is disabled, but it can be enabled, and users can set the Maximum Slots to define how many jobs can run concurrently.

Steps to Configure Job Concurrency:

1. Navigate to the data source configuration page.
2. Enable Job Concurrency Control by toggling the setting.
3. Enter the number of slots (e.g., 1, 5, 10) that should be available for concurrent job execution.
4. Save the configuration.

Benefits

• Prevents Overload: By limiting the number of concurrent jobs, the feature helps prevent overloading of customer databases, thus maintaining performance and avoiding potential crashes.
• Flexible Configuration: Users can adjust the number of concurrent slots based on their performance needs, giving them control over the workload being processed.
• Scalable: While this feature is currently implemented for SAP Hana data sources, it can be extended to other data sources such as Snowflake with minimal changes.

The queueing method for concurrent connections at the data source level is critical for maintaining system stability and optimal performance when dealing with multiple task executions. By restricting the amount of concurrent jobs and implementing a queueing system, the Control Plane may effectively manage workloads without overflowing the database.
