Configure the Java Options for Services Using JMX Agent in Ambari

You can update the Java options for the services through the Ambari UI.

Below are detailed, service-wise details for all services supported by the JMX agent.

Prerequistes

Ensure to update the ODP Services with JMX settings before proceeding. For details, see Configure ODP Cluster Services for Pulse.

Configuration

Cruise Control

1. In the Ambari UI, go to Kafka → Advanced → cruise-control-env template.
2. Add the following line at the end of the template:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_cruise_control.xml"

Cruise Control 3

1. In the Ambari UI, go to Kafka3 → Advanced → cruise-control3-env template.
2. Add the following line at the end of the template:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_cruise_control3.xml

Hive Metastore

1. In the Ambari UI, go to Hive → Advanced → hive-env template
2. Add the following line inside the section: if [ "$SERVICE" = "metastore" ].

export HADOOP_OPTS="$HADOOP_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_hive_server.xml"

Hive Server

1. In the Ambari UI, go to Hive → Advanced → hive-env template.
2. Add the following line inside the section: if [ "$SERVICE" = "hiveserver2" ].

export HADOOP_OPTS="$HADOOP_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_hive_metastore.xml"

Kafka

If Kafka Connect is NOT enabled:

1. Go to Kafka → Advanced → kafka-env template
2. Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_kafka.xml"

If Kafka Connect is enabled:

Add the following snippet at the end of the kafka-env template:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"

if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then

    CURRENT_CMD_STRING=$(ps -p $$ -o args=)

    if [[ "$CURRENT_CMD_STRING" == *"kafka-connect"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3_connect.xml"

    elif [[ "$CURRENT_CMD_STRING" == *"kafka start"* ]] || [[ "$CURRENT_CMD_STRING" == *"kafka-server-start"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"

    fi

fi

Kafka 3

If Kafka Connect is NOT enabled:

1. Go to Kafka3 → Advanced → kafka-env template
2. Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"

If Kafka Connect is enabled:

Add the following snippet:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"

if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then

    CURRENT_CMD_STRING=$(ps -p $$ -o args=)

    if [[ "$CURRENT_CMD_STRING" == *"kafka-connect"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3_connect.xml"

    elif [[ "$CURRENT_CMD_STRING" == *"kafka3 start"* ]] || [[ "$CURRENT_CMD_STRING" == *"kafka-server-start"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"

    fi

fi

Kafka Connect

1. Go to Kafka → Advanced → kafka-env template
2. Add the following snippet at the end:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"

if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then

    CURRENT_CMD_STRING=$(ps -p $$ -o args=)

    if [[ "$CURRENT_CMD_STRING" == *"kafka-connect"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3_connect.xml"

    elif [[ "$CURRENT_CMD_STRING" == *"kafka start"* ]] || [[ "$CURRENT_CMD_STRING" == *"kafka-server-start"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"

    fi

fi

Kafka3 Connect

1. Go to Kafka3 → Advanced → kafka3-env template.
2. Add the following snippet at the end:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"

if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then

    CURRENT_CMD_STRING=$(ps -p $$ -o args=)

    if [[ "$CURRENT_CMD_STRING" == *"kafka-connect"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3_connect.xml"

    elif [[ "$CURRENT_CMD_STRING" == *"kafka3 start"* ]] || [[ "$CURRENT_CMD_STRING" == *"kafka-server-start"* ]]; then

        export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"

    fi

fi

Kafka MirrorMaker2

1. Go to Kafka → Advanced → kafka-mirrormaker2-env
2. Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_mm2.xml"

Kafka3 MirrorMaker2

1. Go to Kafka3 → Advanced → kafka-mirrormaker2-env
2. Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_kafka3mm2.xml"

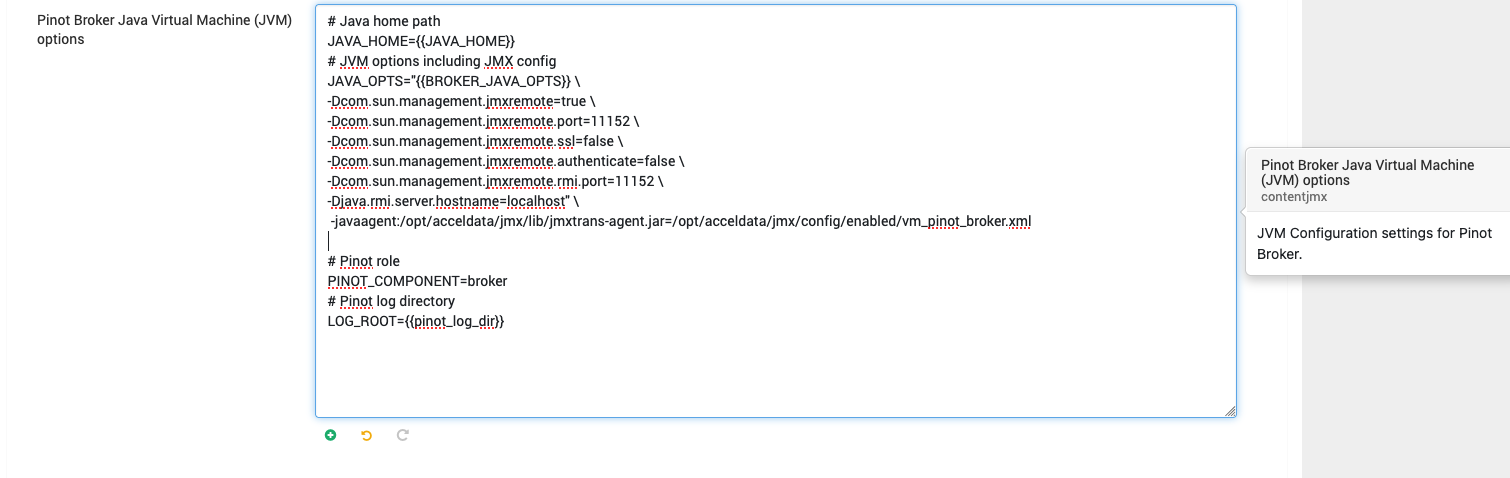

Pinot Broker

1. Go to Pinot Broker → Java Virtual Machine (JVM) Options
2. Add the following line at the end:

export JAVA_OPTS="$JAVA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_pinot_broker.xml"

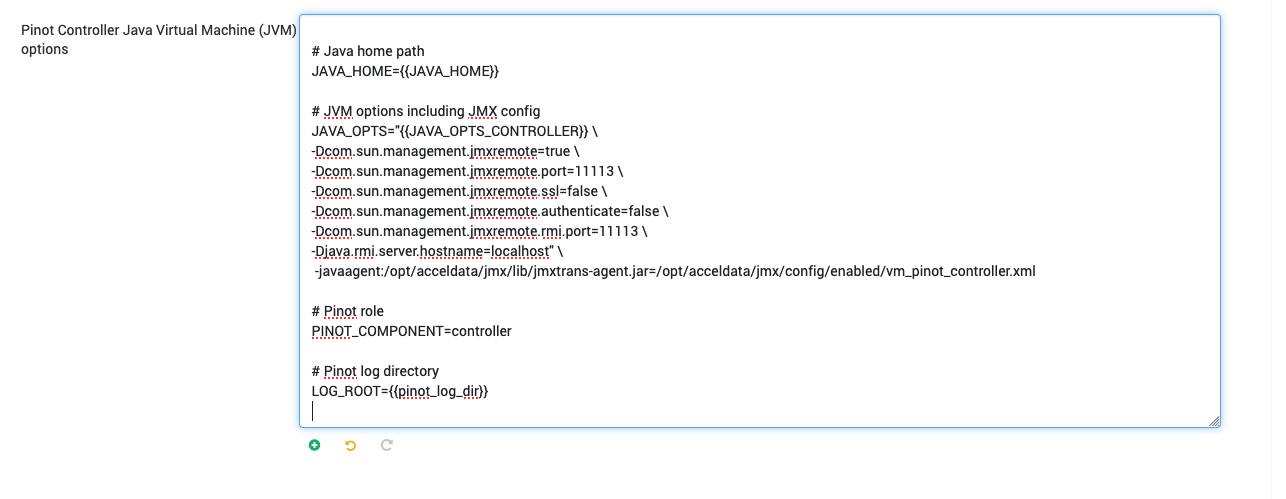

Pinot Controller

1. Go to Pinot Controller → Java Virtual Machine (JVM) Options
2. Add the following line at the end:

export JAVA_OPTS="$JAVA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_pinot_controller.xml"

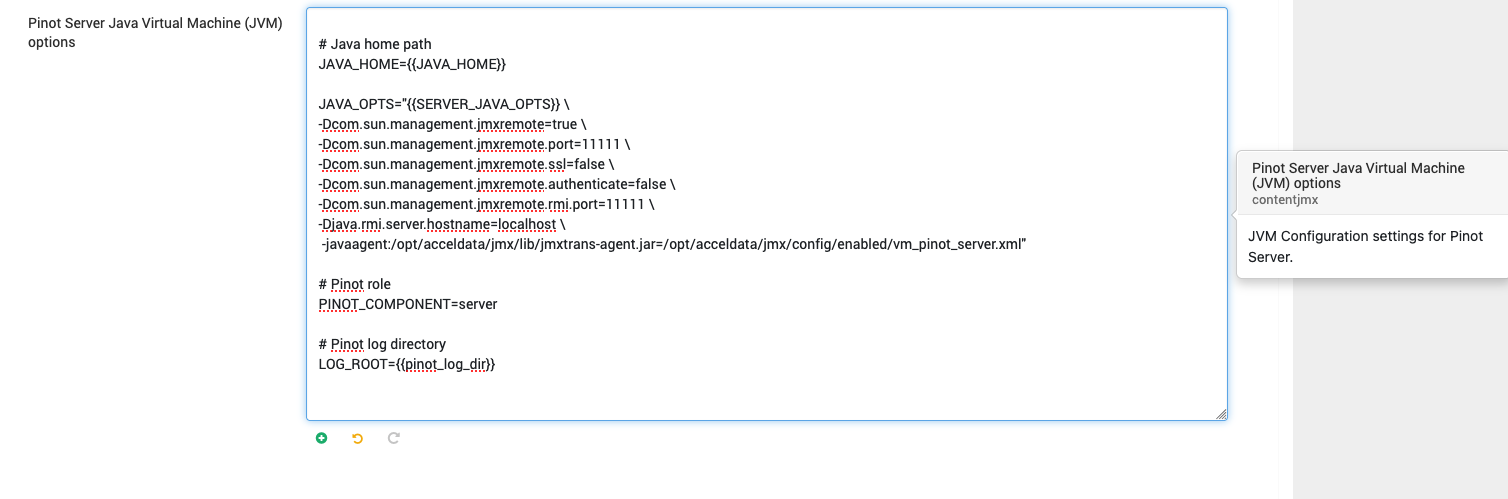

Pinot Server

1. Go to Pinot Server → Java Virtual Machine (JVM) Options
2. Add the following line at the end:

export JAVA_OPTS="$JAVA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_pinot_server.xml"

Ranger (Admin, Tagsync, Usersync)

1. Go to Ranger → Advanced → ranger-env template

Ranger Admin

Add the line below in the {% if is_ranger_admin_host %} section:

export JAVA_OPTS="${JAVA_OPTS} -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_ranger_admin.xml"

Ranger Tagsync

For Tagsync, add the below line in the {% if is_ranger_tagsync_host %} section:

export JAVA_OPTS="${JAVA_OPTS} -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_ranger_tagsync.xml"

Ranger Usersync

For Usersync, add the line below in the {% if is_ranger_usersync_host %} section:

export JAVA_OPTS=" ${JAVA_OPTS} -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_ranger_usersync.xml"

Schema Registry

1. Go to Schema Registry → registry-env template
2. Add the following line at the end:

export REGISTRY_OPTS="$REGISTRY_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_schema_registry.xml"

Trino (Coordinator and Worker)

1. Go to Trino → JVM Config file
2. Add the following snippet at the end:

{% if hostname == coordinator_host %}

-javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_trino_coordinator.xml

{% else %}

-javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_trino_worker.xml

{% endif %}

Zookeeper

1. Go to Zookeeper → Advanced → zookeeper-env template
2. Add the following line at the end:

export SERVER_JVMFLAGS="$SERVER_JVMFLAGS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_zookeeper_server.xml"

Zeppelin Master

1. Go to Zeppelin → zeppelin_env_content
2. Add the following line at the end:

export ZEPPELIN_JAVA_OPTS="$ZEPPELIN_JAVA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_zeppelin_master.xml"
