Obfuscating LDAP Bind Password for Druid

Remove the plain-text LDAP bind password from common.runtime.properties and replace it with a secure lookup mechanism using the Hadoop Credential Provider (JCEKS) and environment variables.

Scope

• Ambari-managed Druid
• LDAP authentication enabled for Druid
• Hadoop Credential Provider (JCEKS)
• Applies to production and non-production clusters

Prerequisites

• Root Access: Required to create keystores and manage file permissions
• Ambari Admin Access: Required to update Druid configurations
• Service Status: Ambari and Druid services must be running
• Hadoop CLI: Available on the node used to create credentials

Step 1: Create the Secure Keystore (JCEKS)

Store the LDAP bind password securely in an encrypted keystore.

1.1 Create the keystore directory (if missing)

mkdir -p /etc/security/credential/

1.2 Create credential alias

• Alias Name: druid.ldap.bind.password
• Provider Path: jceks://file/etc/security/credential/druid.jceks

hadoop credential create druid.ldap.bind.password \

  -provider jceks://file/etc/security/credential/druid.jceks \

  -value "YOUR_ACTUAL_LDAP_PASSWORD_HERE"

1.3 Verify credential creation

hadoop credential list \

  -provider jceks://file/etc/security/credential/druid.jceks

Expected output (example):

Listing aliases for CredentialProvider: jceks://file/etc/security/credential/druid.jceks

druid.ldap.bind.password

druid.internal.client.password

druid.metadata.storage.connector.password

Step 2: Configure Ambari druid-env (Critical)

This step ensures Druid can securely retrieve the password at startup and expose it as an environment variable.

1. Log in to Ambari UI
2. Navigate to Druid → Configs → Advanced → Advanced druid-env
3. Scroll to the druid-env template
4. Add the following line at the end:

# Export LDAP Bind Password using Ambari Credential Store

export DRUID_LDAP_BIND_PASSWORD=`{{password_command}} -a "druid.ldap.bind.password"`

5. Save the configuration

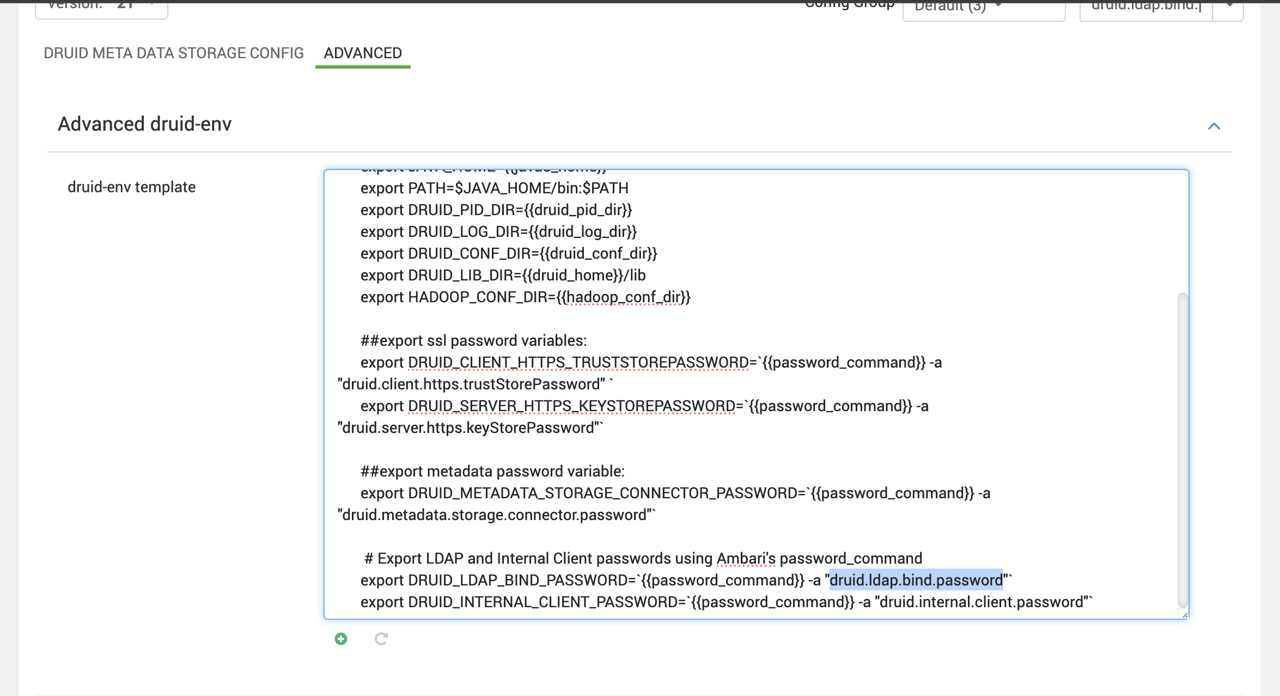

Here is a screenshot for your reference:

Step 3: Update Druid Runtime Properties

Configure Druid to use the environment variable instead of a plain-text password.

1. Navigate to Druid → Configs → Advanced → Advanced druid-common-security.
2. Locate the property:

druid.auth.authenticator.ldap.credentialsValidator.bindPassword

3. Replace the existing plain-text value with:

druid.auth.authenticator.ldap.credentialsValidator.bindPassword={"type":"environment","variable":"DRUID_LDAP_BIND_PASSWORD"}

Here is a screenshot for your reference:

Step 4: Restart and Verify

4.1 Restart Services

Restart all Druid components via Ambari:

• Broker
• Coordinator
• Historical
• Overlord (if applicable)

4.2 Validation

• Log in to Druid UI using an LDAP user

• Confirm successful authentication

• Verify no plain-text password exists in:

  • common.runtime.properties
  • Ambari configs

• Check logs for errors:

/var/log/druid/*

Outcome

• LDAP bind password removed from all plain-text configurations
• Password securely stored in Hadoop Credential Store (JCEKS)
• Druid retrieves the password securely at runtime
• Fully compliant with MSTP security hardening standards
