Set up HAProxy Load Balancer for HiveServer2

Overview

This documentation provides a comprehensive guide to setting up an HAProxy load balancer for HiveServer2 in a high-availability (HA) environment. This page covers installation, configuration, and optional Kerberos integration for secure deployments. Additionally, it addresses the necessity of using configs.py to update the Hive properties, as changes cannot be made directly via Ambari in this setup. Additionally, it highlights the importance of connecting to HiveServer2 exclusively through the load balancer due to Kerberos principal configurations.

Architecture Overview

Nodes Involved:

HiveServer2 Node 1: hive-node1.example.com
HiveServer2 Node 2: hive-node2.example.com
Load Balancer Node: lb-node.example.com

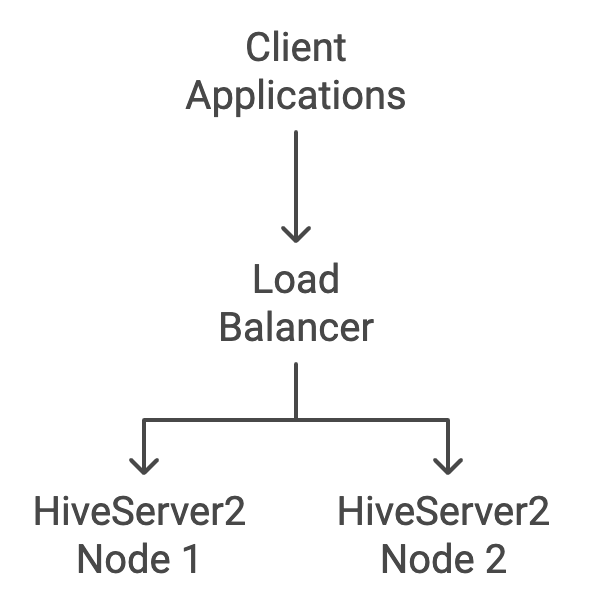

High-Level Diagram:

This diagram illustrates the flow of client requests through the load balancer to the HiveServer2 nodes.

Prerequisites

HAProxy Version: The latest version available in the repository.
Administrative Access: The root or sudo privileges.
Ambari Server Access: For updating configurations using configs.py.

Install HAProxy

Install HAProxy on the Load Balancer node (lb-node.example.com) using the following command.

Bash


sudo yum install haproxy -y
Copy

Verify the installation

Verify the HAProxy installation using the following command.

Bash


haproxy -v
Copy

You must see the HAProxy version information displayed.

Configure HAProxy

Back up the default configuration

Back up the original HAProxy configuration file before making changes.

Bash


sudo cp /etc/haproxy/haproxy.cfg /etc/haproxy/haproxy.cfg.bak
Copy

Bash


sudo truncate -s 0 /etc/haproxy/haproxy.cfg
Copy

Edit HAProxy Configuration

Open the HAProxy configuration file for editing:

Bash


sudo vi /etc/haproxy/haproxy.cfg
Copy

Add HiveServer2 Load Balancing Configuration

Insert the following configuration into the file.

Bash

​x

#----------------------------------------------------------------# Global Settings#----------------------------------------------------------------global    log /dev/log    local0    log /dev/log    local1 notice    chroot /var/lib/haproxy    pidfile /var/run/haproxy.pid    maxconn 4000    user haproxy    group haproxy    daemon​    # Enable stats socket for monitoring    stats socket /var/lib/haproxy/stats mode 660 level admin    stats timeout 30s​#----------------------------------------------------------------# Default Settings#----------------------------------------------------------------defaults    log     global    mode    tcp    option  tcplog    option  dontlognull    retries 3    timeout connect 10s    timeout client  1m    timeout server  1m    maxconn 3000​#----------------------------------------------------------------# Frontend Configuration#----------------------------------------------------------------frontend hiveserver2_front    bind *:10000    mode tcp    default_backend hiveserver2_back    stick on src    stick-table type ip size 200k expire 30m​#----------------------------------------------------------------# Backend Configuration#----------------------------------------------------------------backend hiveserver2_back    mode tcp    balance source    option tcp-check    server hive1 hive-node1.example.com:10000 check    server hive2 hive-node2.example.com:10000 check
Copy

Save and Exit

Press Esc, then type :wq and press Enter to save the changes and exit the editor.

Configuration Breakdown

Global Section:
- Sets global parameters like logging, maximum connections, and process IDs.
Defaults Section:
- Defines the default settings for all frontends and backends, such as timeouts and logging.
Frontend ( hiveserver2_front ):
- Listens on port 10000 for incoming HiveServer2 client connections.
- Uses TCP mode for handling binary protocols.
Backend ( hiveserver2_back ):
- Contains the list of HiveServer2 servers to load balance.
- Uses source IP balancing to maintain session persistence

Kerberos Integration (Optional)

If your environment uses Kerberos authentication, follow these steps to integrate Kerberos with the load-balanced HiveServer2 setup.

Create Load Balancer Principal

Connect to your Kerberos Key Distribution Center (KDC) server and add a principal for the load balancer.

Bash


kadmin.local
Copy

Within the kadmin.local prompt, execute:

Bash


addprinc -randkey hive/lb-node.example.com@EXAMPLE.COM
Copy

Replace EXAMPLE.COM with your actual Kerberos realm.

Generate Keytab for Load Balancer

Still within the kadmin.local prompt:

Bash


ktadd -norandkey -kt /etc/security/keytabs/loadbalancer.keytab hive/lb-node.example.com@EXAMPLE.COM
Copy

Merge Keytabs

Gather the HiveServer2 keytabs from both nodes and the load balancer keytab. Use ktutil to merge them.

Collect Keytabs

From hive-node1.example.com : /etc/security/keytabs/hive.service.keytab
From hive-node2.example.com : /etc/security/keytabs/hive.service.keytab (rename to hive.service.keytab_node2)
From KDC Server: /etc/security/keytabs/loadbalancer.keytab

Merge Using Ktutil

Bash


ktutilktutil:  rkt hive.service.keytabktutil:  rkt hive.service.keytab_node2ktutil:  rkt loadbalancer.keytabktutil:  wkt hive.ha.keytabktutil:  quit
Copy

Set Permissions

Bash


sudo chmod 440 hive.ha.keytabsudo chown hive:hadoop hive.ha.keytab
Copy

Distribute Merged Keytab

Copy hive.ha.keytab to /etc/security/keytabs/ on both HiveServer2 nodes.

Bash


scp hive.ha.keytab user@hive-node1.example.com:/etc/security/keytabs/scp hive.ha.keytab user@hive-node2.example.com:/etc/security/keytabs/
Copy

Update the Hive Configuration using Config.py

Directly updating the Hive properties via Ambari UI is not possible in this setup. Instead, use the configs.py script provided by Ambari to modify the configuration properties.

Locate Config.py

The configs.py script is typically located at: /var/lib/ambari-server/resources/scripts/configs.py.

Update the Hive Properties

You can use the following commands to update the Hive properties on the Ambari server.

Replace Variables

Replace admin with your Ambari admin username.
Replace admin_password with your Ambari admin password.
Replace lb-node.example.com with your Ambari server hostname.
Replace YOUR_CLUSTER_NAME with the name of your cluster.
Replace EXAMPLE.COM with your Kerberos realm.

Update Kerberos Principal

Bash


/var/lib/ambari-server/resources/scripts/configs.py \-u admin -p admin_password \-t 8080 -s http -a set \-l lb-node.example.com -n YOUR_CLUSTER_NAME -c hive-site \-k hive.server2.authentication.kerberos.principal \-v hive/lb-node.example.com@EXAMPLE.COM
Copy

Update the Kerberos Keytab Location

Bash


/var/lib/ambari-server/resources/scripts/configs.py \-u admin -p admin_password \-t 8080 -s http -a set \-l lb-node.example.com -n YOUR_CLUSTER_NAME -c hive-site \-k hive.server2.authentication.kerberos.keytab \-v /etc/security/keytabs/hive.ha.keytab
Copy

Verify the Configuration Changes

To ensure that the properties have been updated, you can retrieve the current configuration:

Bash


/var/lib/ambari-server/resources/scripts/configs.py \-u admin -p admin_password \-t 8080 -s http -a get \-l lb-node.example.com -n YOUR_CLUSTER_NAME -c hive-site \-k hive.server2.authentication.kerberos.principal​/var/lib/ambari-server/resources/scripts/configs.py \-u admin -p admin_password \-t 8080 -s http -a get \-l lb-node.example.com -n YOUR_CLUSTER_NAME -c hive-site \-k hive.server2.authentication.kerberos.keytab
Copy

Finalizing the Setup

Restart the Hive Services via Ambari UI

After updating the configurations, restart the Hive services on both nodes via the Ambari UI to apply the changes.

Access Ambari UI:
- Open a web browser and navigate to the Ambari web interface (e.g., http://lb-node.example.com:8080).
Log in to Ambari:
- Enter your Ambari admin username and password.
Navigate to the Hive Service:
- Click on the Hive service from the list of services.
Restart the Hive Service:
- Click on the Service Actions button and select Restart All.
Confirm Restart:
- Follow the prompts to confirm and initiate the restart process.

Start and Enable HAProxy

Start the HAProxy service and enable it to start on boot.

Bash


sudo systemctl start haproxy
Copy

Bash


sudo systemctl enable haproxy
Copy

Verify the HAProxy Status

Check the status to ensure it's running without issues.

Bash


sudo systemctl status haproxy
Copy

Test the Load Balancer

Use Beeline or a third-party tool to connect to HiveServer2 via the load balancer.

Beeline Example

Bash


beeline -u "jdbc:hive2://lb-node.example.com:10000/default;principal=hive/lb-node.example.com@EXAMPLE.COM"
Copy

Replace EXAMPLE.COM with your Kerberos realm, if applicable.

Due to Kerberos configuration, the HiveServer2 principal is updated to use the load balancer's hostname (lb-node.example.com). Therefore, direct connections to the individual HiveServer2 nodes (hive-node1.example.com or hive-node2.example.com) will not work with third-party tools or Beeline. Always connect to HiveServer2 through the load balancer (lb-node.example.com). All client applications must be configured to communicate exclusively with the load balancer to ensure proper load distribution and high availability.
