Handling HDFS and YARN Permissions

To enable seamless interaction between JupyterHub, HDFS, and YARN in a Hadoop cluster, certain configurations must be applied.

1. Update core-site.xml: Modify the Hadoop configuration file core-site.xml to allow the JupyterHub user to act as a proxy. Add the following properties:

xxxxxxxxxx

<property>

  <name>hadoop.proxyuser.jupyterhub.groups</name>

  <value>*</value>

</property>

<property>

  <name>hadoop.proxyuser.jupyterhub.hosts</name>

  <value>*</value>

</property>

<property>

  <name>hadoop.proxyuser.jupyterhub.users</name>

  <value>*</value>

</property>

2. Permissions for YARN

If Yarnspawner is being used, you have to do one of the following steps to allow JupyterHub to submit applications in Yarn.

If the Ranger plugin for yarn is not enabled or ranger is not installed

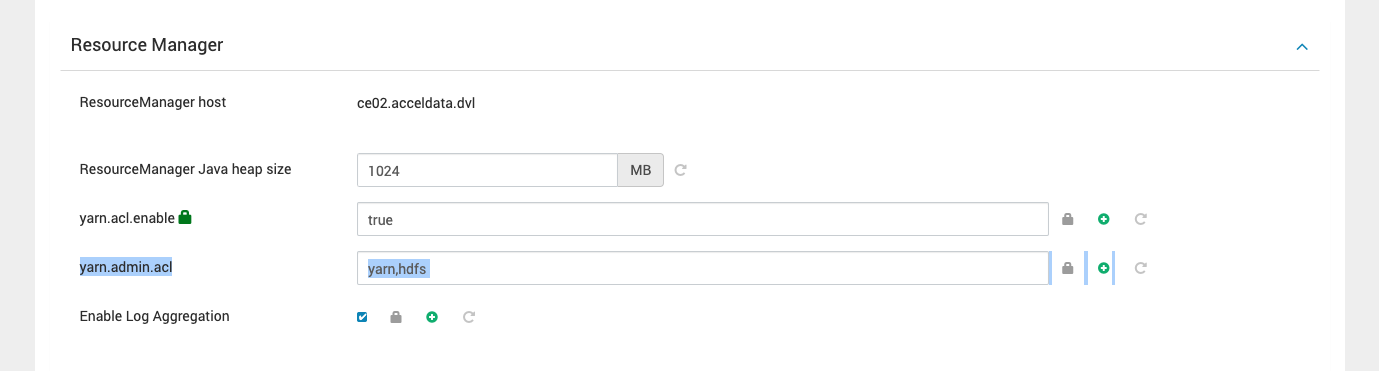

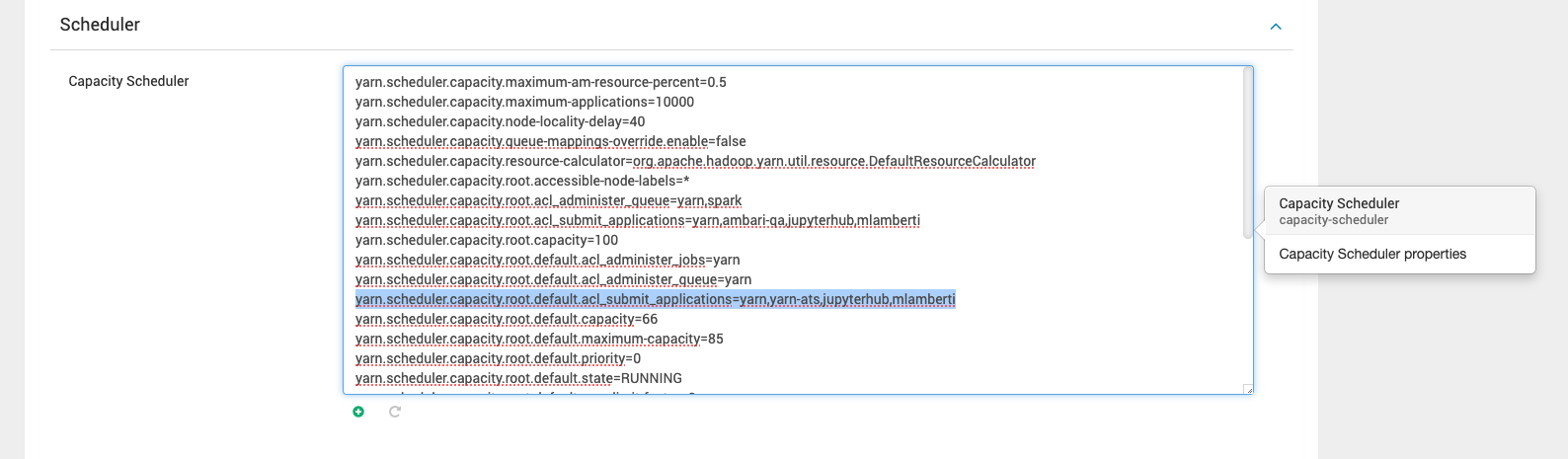

Ensure the YARN queue has the necessary access control lists (ACLs) to permit the JupyterHub user to submit jobs. This can be configured in the YARN ResourceManager settings or queue configuration files.

If Ranger is installed

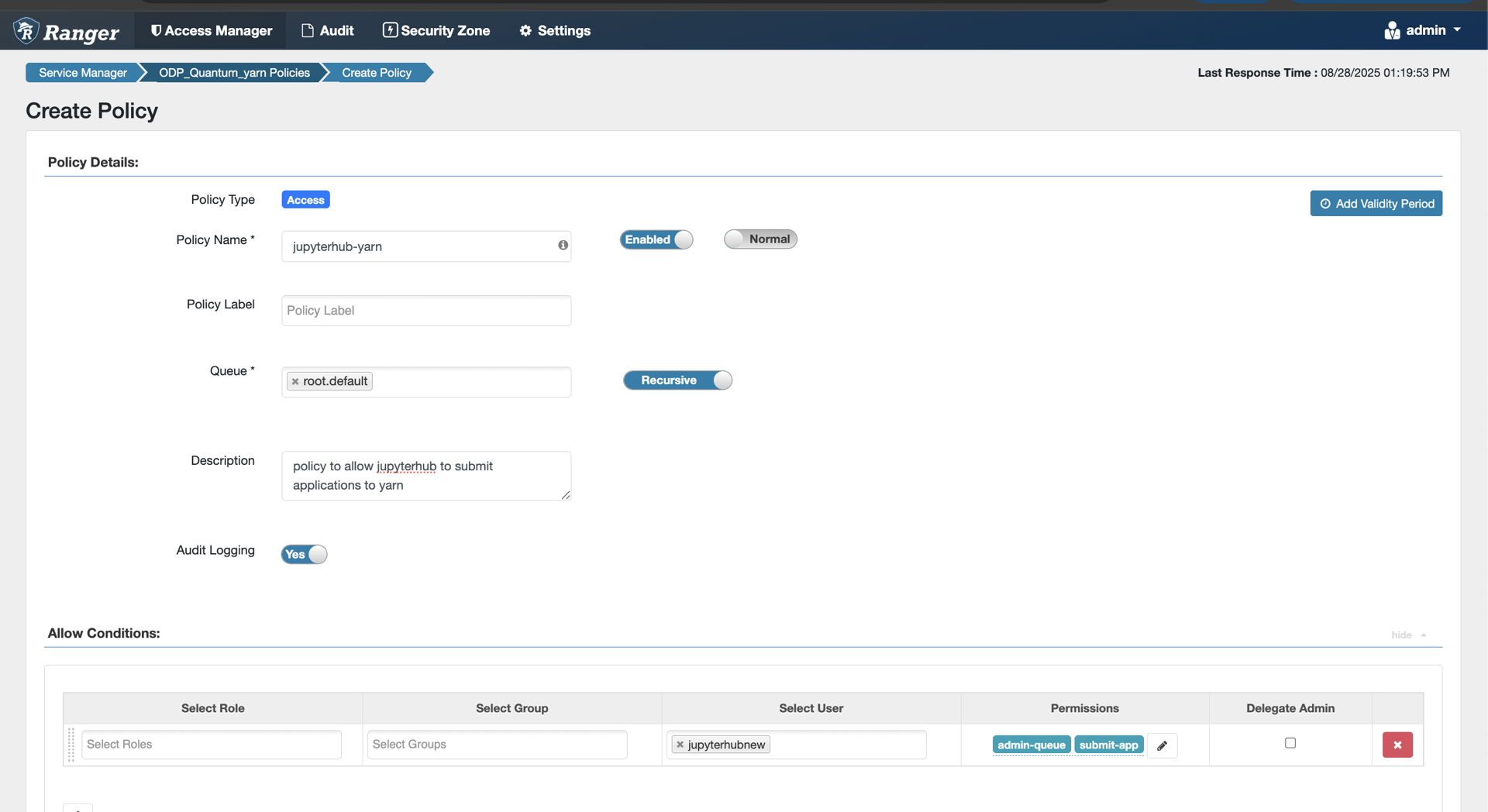

Create a policy to allow JupyterHub users to submit applications to Yarn. Select the queue and permissions as per the requirement.

Why These Steps Are Important?

1. Access Control:

   • Configuring proxy permissions in core-site.xml allows JupyterHub to interact with HDFS on behalf of its users.
   • YARN ACLs ensure users can submit jobs through YarnSpawner without encountering permission issues.

2. Seamless Execution:

   • These configurations eliminate interruptions when users access files stored in HDFS or submit Spark jobs via YARN.
   • Streamlined permissions simplify the setup and improve the user experience.

This document serves as a foundation for setting up JupyterHub in a distributed Hadoop environment. Following these steps ensures scalability, security, and smooth integration with essential components like HDFS and YARN.
