Upgrade Ambari Server

Follow the steps below to upgrade the Ambari version.

Info

If you are upgrading from ODP version 3.3.6.3-1 or later to ODP version 3.3.6.4-1, you can skip the Java 17 and Ambari Server upgrade steps, as they are already included in the source version and do not require any additional action.

Stop Infra-solr Service

Stop the Infra-solr Service from Ambari-UI.

Stop Ambari Server and Agents

Stop Ambari Server

Info

Take the backup of ambari-server configs.

/etc/ambari-server/conf/

ambari-server stop

Stop Agents

Stop Ambari-agent on every cluster node.

ambari-agent stop

Back up Ambari Database

Take the ambari-server backend database backup from the server host.

DB Backup Commands

mkdir /tmp/ambari-server_db_bckp mysqldump --databases ambari > /tmp/ambari-server_db_bckp/ambari_mysql_bckp.sql

The upgraded version Ambari-2.7.8.2-3 supports only Python 3.11. Ensure that Python 3.11 is installed and configured on all the cluster nodes before proceeding with the upgrade.

Add Ambari Repo on Cluster Nodes

Back up the Old Ambari Repository

Run the following command:

mv /etc/yum.repos.d/ambari.repo /tmp/

Retrieve the latest Ambari repository details from Accessing Acceldata Repositories and add it to all cluster nodes.

List the existing Ambari packages

On RHEL:

rpm -qa | grep ambari

On Ubuntu:

apt list ambari-*

Example Output (if the current Ambari version is 3.0.0.0-1):

ambari-infra-solr-3.0.0.0-1.noarch ambari-agent-3.0.0.0-1.x86_64 ambari-server-3.0.0.0-1.x86_64 ambari-infra-solr-client-3.0.0.0-1.noarch

Remove existing Ambari rpm’s

From the Ambari Server node, remove the installed packages before upgrading:

On RHEL:

yum remove ambari-server

On Ubuntu:

apt remove ambari-server

Note

Adjust the package names based on the installed versions on each node.
You can verify the installed packages before removing them using:

On RHEL:

rpm -qa | grep ambari

On Ubuntu:

apt list ambari-*

Make sure the Amabri packages are not installed.

Install Ambari packages

Info

If you are upgrading from any Python 2 based ODP version, make sure to perform the below additional steps to install Python 3.11 and its dependencies on all the hosts before proceeding with the next step.

For Ubuntu 20/22:

apt install software-properties-common add-apt-repository ppa:deadsnakes/ppa apt update apt-get install python3.11 curl https://bootstrap.pypa.io/get-pip.py -o get-pip.py /usr/bin/python3.11 get-pip.py pip3.11 install distro lxml rpm

For RHEL 8:

yum install python3.11 python3.11-pip pip3.11 install distro lxml rpm

Install the latest Ambari-server only on ambari-server node.

Server Node

On RHEL:

yum clean all yum install ambari-server -y

On Ubuntu:

apt clean apt update apt install ambari-server -y

Set up Java 17

Info

Make sure to install and update the default Java version as 17 on all the cluster nodes.

For RHEL:

yum install java-17-openjdk.x86_64 -y yum install java-17-openjdk-devel.x86_64 -y

For Ubuntu:

apt-get install openjdk-17-jdk openjdk-17-jdk-headless -y

Warning

Ensure not to remove the jdk8 packages at this state.

update-alternatives --config java There are 2 choices for the alternative java (providing /usr/bin/java). Selection Path Priority Status ------------------------------------------------------------ * 0 /usr/lib/jvm/java-17-openjdk-amd64/bin/java 1111 auto mode 1 /usr/lib/jvm/java-11-openjdk-amd64/bin/java 1111 manual mode 2 /usr/lib/jvm/java-8-openjdk-amd64/jre/bin/java 1081 manual mode Press <enter> to keep the current choice[*], or type selection number: 1

Set up Python 3.11

yum install python3.11 -y

Make sure to install and update the default Python version as 3.11 on all the cluster nodes.

update-alternatives --config python There are 4 programs which provide 'python'. Selection Command ----------------------------------------------- * 1 /usr/libexec/no-python 2 /usr/bin/python3 3 /usr/bin/python2 + 4 /usr/bin/python3.11 Enter to keep the current selection[+], or type selection number: 4

Update JSVC

Make sure to Instal the latest version of the bigtop-jsvc-1.2.4 on all the cluster nodes.

For RHEL:

yum install bigtop-jsvc* -y

For Ubuntu:

apt install bigtop-jsvc -y

Restore Config Files

Restore the ambari.properties and password.dat files, which are backed up at this step: Configuration Backup on this page.

Restore the ambari.properties file

cp /etc/ambari-server/conf_bkp/ambari.properties /etc/ambari-server/conf/

Please override the file by prompting 'y'.

Restore the password.dat file

cp /etc/ambari-server/conf_bkp/password.dat /etc/ambari-server/conf/

Update the java.home and stack.java.home

In this case, set JAVA_HOME to /usr/lib/jvm/java-17-openjdk

File path - /etc/ambari-server/conf/ambari.properties | grep -i java.home

java.home=/usr/lib/jvm/java-17-openjdk stack.java.home=/usr/lib/jvm/java-17-openjdk ambari.java.home=/usr/lib/jvm/java-17-openjdk mpacks-v2.staging.path=/var/lib/ambari-server/resources/mpacks-v2

Update the Ambari Database with New Tables and Columns

MySQL

mysql -u ambari -pambari USE ambari; CREATE TABLE IF NOT EXISTS registries( id BIGINT NOT NULL, registy_name VARCHAR(255) NOT NULL, registry_type VARCHAR(255) NOT NULL, registry_uri VARCHAR(255) NOT NULL, CONSTRAINT PK_registries PRIMARY KEY (id)); CREATE TABLE IF NOT EXISTS mpacks( id BIGINT NOT NULL, mpack_name VARCHAR(255) NOT NULL, mpack_version VARCHAR(255) NOT NULL, mpack_uri VARCHAR(255), registry_id BIGINT, CONSTRAINT PK_mpacks PRIMARY KEY (id), CONSTRAINT uni_mpack_name_version UNIQUE(mpack_name, mpack_version), CONSTRAINT FK_registries FOREIGN KEY (registry_id) REFERENCES registries(id)); ALTER TABLE stack ADD COLUMN mpack_id BIGINT NULL; ALTER TABLE stack ADD CONSTRAINT FK_mpacks FOREIGN KEY (mpack_id) REFERENCES mpacks(id); ALTER TABLE upgrade ADD COLUMN upgrade_package_stack VARCHAR(255) NOT NULL;

MariaDB

-- 0) Use Ambari schema USE ambari; -- 1) (Optional) Confirm current FK names on affected tables SELECT TABLE_NAME, CONSTRAINT_NAME FROM information_schema.TABLE_CONSTRAINTS WHERE CONSTRAINT_SCHEMA = DATABASE() AND CONSTRAINT_TYPE = 'FOREIGN KEY' AND TABLE_NAME IN ('servicecomponentdesiredstate', 'hostcomponentdesiredstate', 'hostcomponentstate') ORDER BY TABLE_NAME, CONSTRAINT_NAME; -- 2) Drop child FKs first, then parent FK ALTER TABLE hostcomponentdesiredstate DROP FOREIGN KEY hstcmpnntdesiredstatecmpnntnme; ALTER TABLE hostcomponentstate DROP FOREIGN KEY hstcomponentstatecomponentname; ALTER TABLE servicecomponentdesiredstate DROP FOREIGN KEY srvccmponentdesiredstatesrvcnm; -- 3) Alter service_name columns to VARCHAR(255) ALTER TABLE servicecomponentdesiredstate MODIFY COLUMN service_name VARCHAR(255) NOT NULL; ALTER TABLE hostcomponentdesiredstate MODIFY COLUMN service_name VARCHAR(255) NOT NULL; ALTER TABLE hostcomponentstate MODIFY COLUMN service_name VARCHAR(255) NOT NULL; -- 4) Recreate FKs ALTER TABLE servicecomponentdesiredstate ADD CONSTRAINT srvccmponentdesiredstatesrvcnm FOREIGN KEY (service_name, cluster_id) REFERENCES clusterservices (service_name, cluster_id); ALTER TABLE hostcomponentdesiredstate ADD CONSTRAINT hstcmpnntdesiredstatecmpnntnme FOREIGN KEY (component_name, service_name, cluster_id) REFERENCES servicecomponentdesiredstate (component_name, service_name, cluster_id); ALTER TABLE hostcomponentstate ADD CONSTRAINT hstcomponentstatecomponentname FOREIGN KEY (component_name, service_name, cluster_id) REFERENCES servicecomponentdesiredstate (component_name, service_name, cluster_id); -- 5) Verify column definitions SHOW COLUMNS FROM servicecomponentdesiredstate LIKE 'service_name'; SHOW COLUMNS FROM hostcomponentdesiredstate LIKE 'service_name'; SHOW COLUMNS FROM hostcomponentstate LIKE 'service_name';

Oracle 19C

sqlplus / as sysdba ALTER SESSION SET CONTAINER=<DB Name>; ALTER SESSION SET CURRENT_SCHEMA = <UserName>; CREATE TABLE registries( id NUMBER(19) NOT NULL, registy_name VARCHAR2(255) NOT NULL, registry_type VARCHAR2(255) NOT NULL, registry_uri VARCHAR2(255) NOT NULL, CONSTRAINT PK_registries PRIMARY KEY (id) ); CREATE TABLE mpacks( id NUMBER(19) NOT NULL, mpack_name VARCHAR2(255) NOT NULL, mpack_version VARCHAR2(255) NOT NULL, mpack_uri VARCHAR2(255), registry_id NUMBER(19), CONSTRAINT PK_mpacks PRIMARY KEY (id), CONSTRAINT uni_mpack_name_version UNIQUE(mpack_name, mpack_version), CONSTRAINT FK_registries FOREIGN KEY (registry_id) REFERENCES registries(id) ); ALTER TABLE stack ADD mpack_id NUMBER(19) NULL; ALTER TABLE stack ADD CONSTRAINT FK_mpacks FOREIGN KEY (mpack_id) REFERENCES mpacks(id);

Ambari Server Schema Upgrade

Before upgrading, ensure a database backup has been taken (as mentioned in Step 6).

Run the Ambari Server upgrade command:

ambari-server upgrade -v

If you encounter the following error:

python version after sym links /usr/bin/python3.11 Using python /usr/bin/python3.11 Upgrading ambari-server Traceback (most recent call last): File "/usr/sbin/ambari-server.py", line 28, in <module> from ambari_commons.exceptions import FatalException, NonFatalException File "/usr/lib/ambari-server/lib/ambari_commons/__init__.py", line 21, in <module> from ambari_commons.os_check import OSCheck, OSConst File "/usr/lib/ambari-server/lib/ambari_commons/os_check.py", line 25, in <module> import distro ModuleNotFoundError: No module named 'distro'

Set up the Distro Module

Install the required dependencies on the ambari-server and ambari-agent nodes.

On RHEL:

yum install python3.11-pip -y

pip3.11 install distro lxml

On Ubuntu:

apt-get update apt-get install python3-pip pip3 install distro

Retry the Upgrade again

ambari-server upgrade -v

Response when prompted:

Ambari Server configured for MySQL. Confirm you have made a backup of the Ambari Server database [y/n] (n)? y Enter 'y' to confirm.

After the successful completion, you must see the following message.

Ambari Server 'upgrade' completed successfully.

Start Ambari-server

ambari-server start

Once started, verify that the Ambari UI is accessible using the same URL as before.

Verify Ambari Version

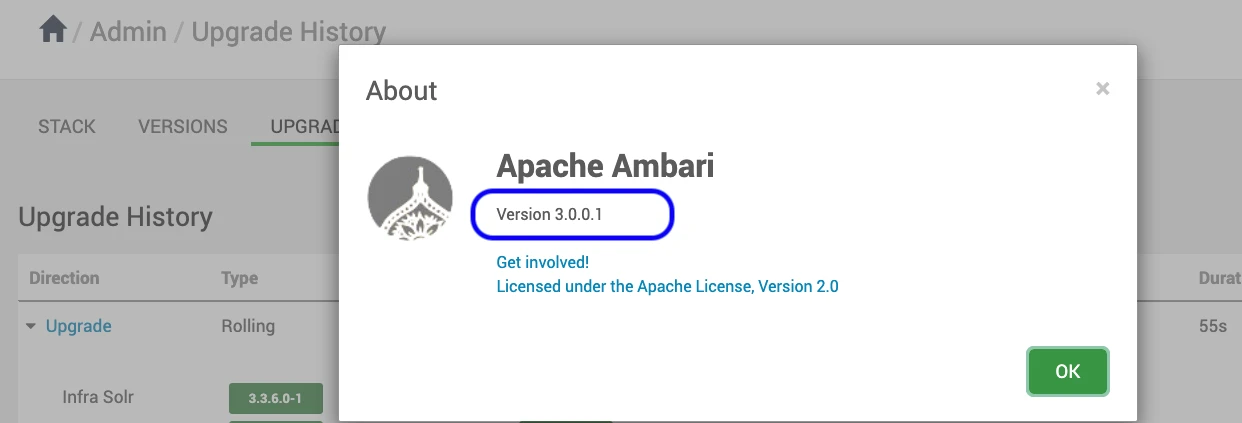

Verify the upgraded Ambari version in admin->about on the top right corner in Ambari UI.

The Ambari version is upgraded successfully.

Upgrade Known Issues

During the migration, the existing GROUPS table in the Ambari database might cause conflicts due to its name. As a result, the Ambari UI might fail to start and throw the following error when attempting to log in.

Internal Exception: java.sql.SQLSyntaxErrorException: Table 'ambari.groups_info' doesn't exist Error Code: 1146 Call: SELECT group_id, group_name, group_type, ldap_group, principal_id FROM groups_info WHERE (group_id = ?) bind => [1 parameter bound] Query: ReadObjectQuery(name="group" referenceClass=GroupEntity )

To resolve this issue, rename the GROUPS table to groups_info in the Ambari backend database.

For MySQL

mysql> use ambari;

mysql> show tables lIKE 'groups';

The response is as follows.

+---------------------------+ | Tables_in_ambari (groups) | +---------------------------+ | groups | +---------------------------+

Verify the data.

mysql> select * from `groups`;

Rename the table groups to groups_info using the following command.

mysql> RENAME TABLE `groups` TO groups_info;

Verify the same data as it was in groups table earlier. It must have the same data as it was earlier in groups table.

mysql> select * from groups_info;

For Oracle

Log into the Oracle server hosting the Ambari database.
Verify the existing GROUPS table.

SELECT table_name FROM user_tables WHERE table_name LIKE '%GROUPS%';

The response is as follows.

TABLE_NAME -------------------------------------------------------------------------------------------------------------------------------- GROUPS

Rename the table groups to groups_info using the following command.

SQL> RENAME GROUPS TO GROUPS_INFO ;

The successful rename operation results the output as TABLE Renamed.

Verify the data once renaming is completed.

For Postgres

Log in to the Postgres server hosting the Ambari database.
Verify the existing GROUPS table.

ambari=> \dt+

The response is as follows.

Rename the table groups to groups_info using the following command.

ambari=> ALTER TABLE groups RENAME TO groups_info;
