Druid

The Druid Service Integration feature is only compatible with the latest version of Acceldata’s Open Source Data Platform.

Cluster Configuration

To activate Druid JMX and SYS metrics, you must specify where the data should be sent by informing the Druid Service Components.

Proceed with the following steps to enable Druid Metrics:

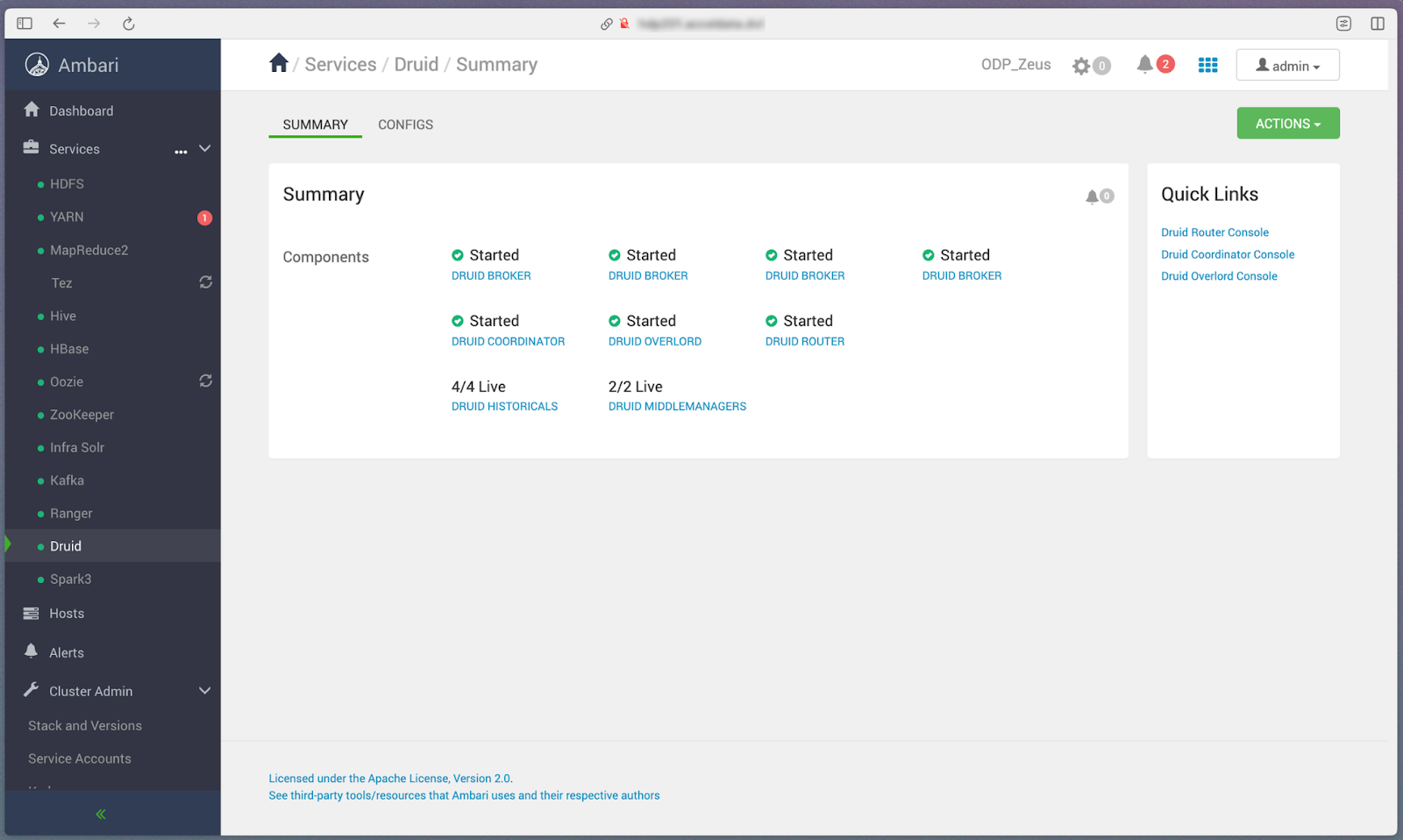

Launch Ambari.

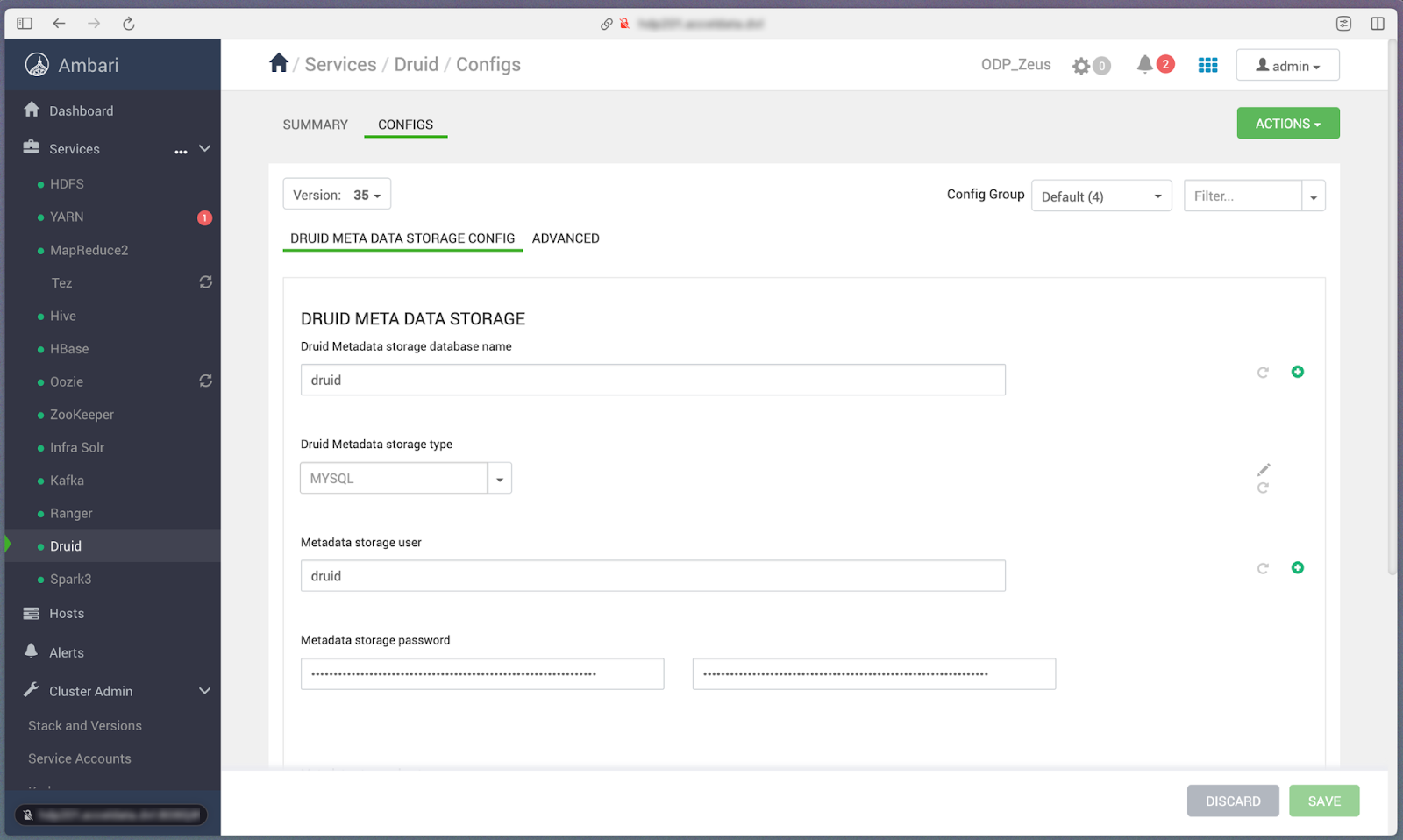

Navigate to Configs:

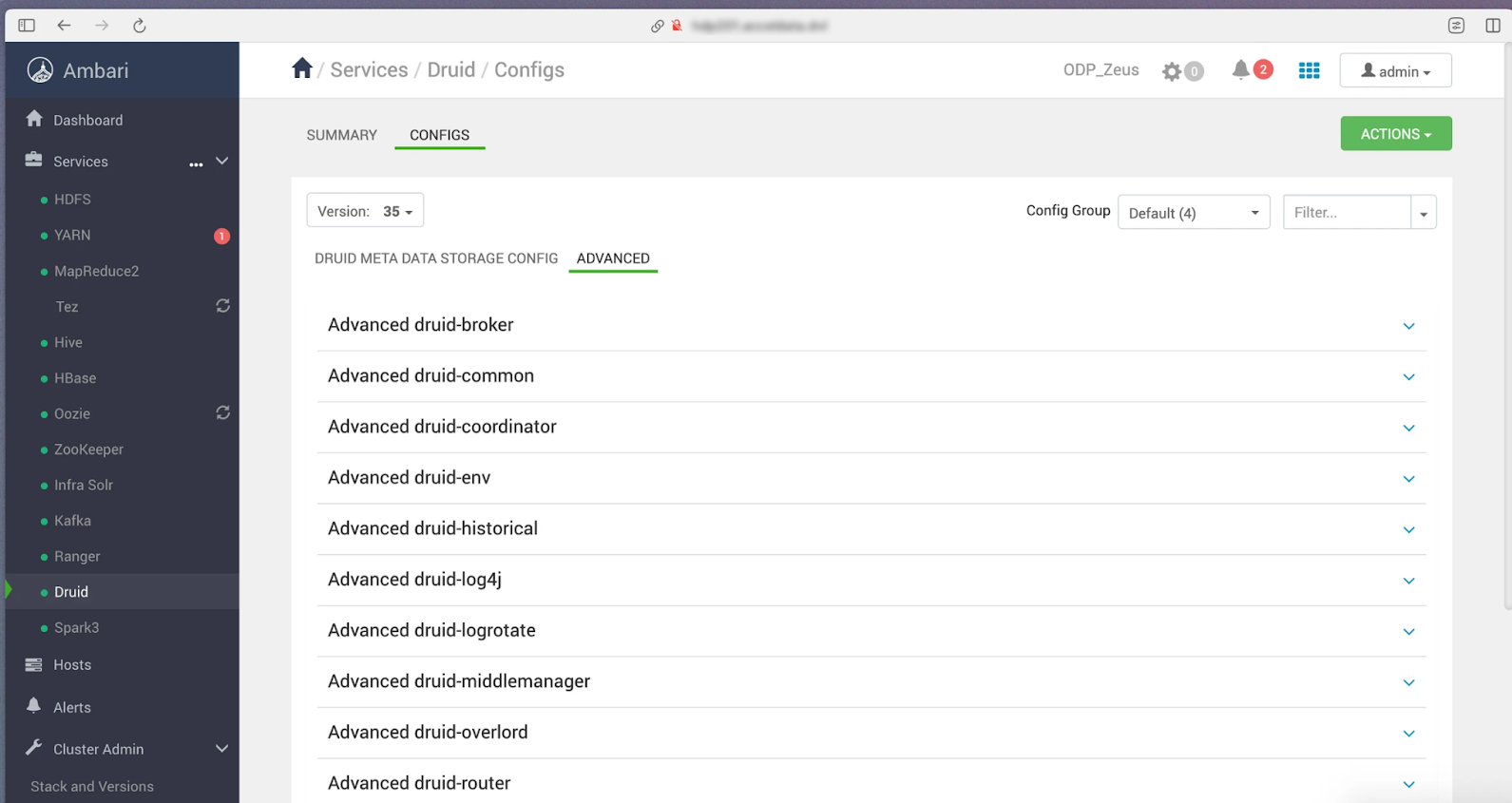

Access the Advanced Settings.

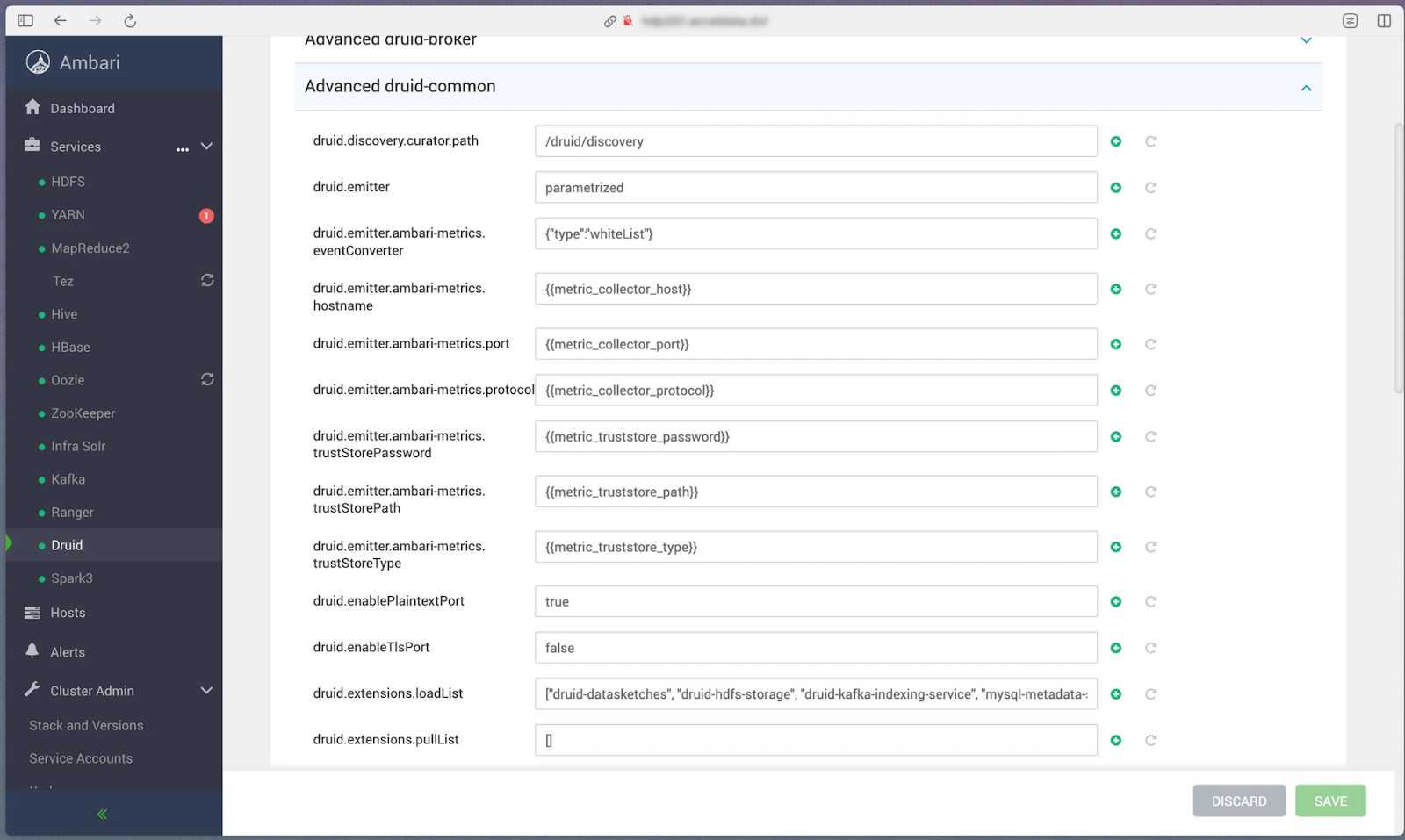

Navigate to the Advanced druid-common section.

Within druid.monitoring.metrics, include the following classes:

Bash

["org.apache.druid.java.util.metrics.JvmMonitor", "org.apache.druid.java.util.metrics.JvmThreadsMonitor", "org.apache.druid.java.util.metrics.SysMonitor"]
Copy

In the druid.emitter field, add the parameterized option:

Bash


parametrized
Copy

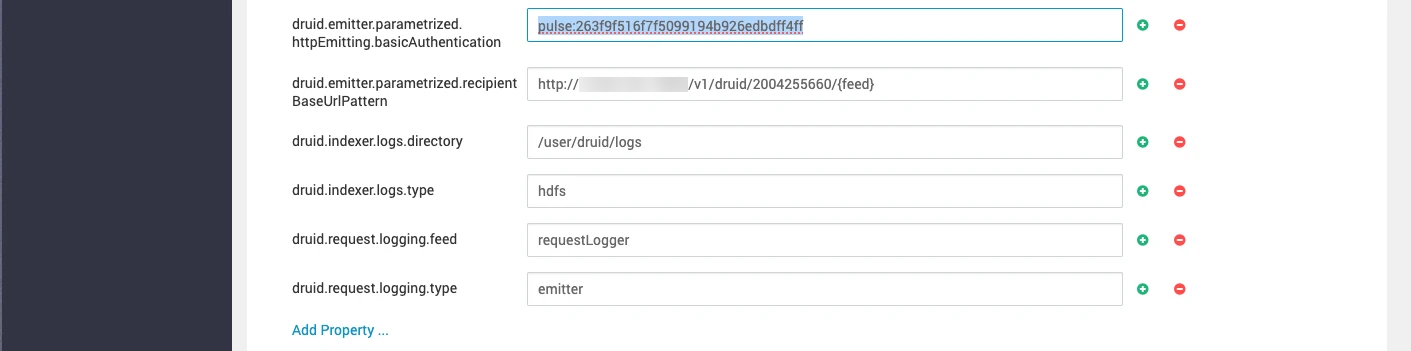

In the Custom Druid Common section, append the following fields and values:

Bash

​x

druid.emitter.parametrized.recipientBaseUrlPattern = http://<Pulse Server Hostname>:19090/v1/druid/<ClusterHash>/{feed}​Replace the <> with appropriate values.​druid.request.logging.feed = requestLoggerdruid.request.logging.type = emitterdruid.emitter.parametrized.httpEmitting.basicAuthentication=pulse:263f9f516f7f5099194b926edbdff4ff
Copy

For the Kubernetes based deployment, append the following field and value:

Bash

druid.emitter.parametrized.recipientBaseUrlPattern = http://<Pulse server hostname>:30000/ad-druid-analyzer/v1/druid/<ClusterHash>/{feed}
Copy

Save the configurations.
Restart the Druid Service.

Pulse Server Changes

To deploy the Druid Analyzer in the Pulse server node, perform the following:

Run accelo deploy addons and select Druid Analyzer:

Bash

[root@sac04:~ (ad-default)]$ accelo deploy addonsWARN: Gauntlet is running in dry run mode. Disable this to delete indices from elastic and purge data from mongo DBINFO: Active Cluster:  zeus? Select the components you would like to install:   [Use arrows to move, space to select, <right> to all, <left> to none, type to filter]  [x]  Core Connectors  [x]  Dashplot  [x]  Director (Agents MUST be configured)> [x]  Druid Analyzer  [ ]  FS Analytics V2  [ ]  FS Elastic  [x]  Facelift UI
Copy

Expected Output:

Bash

[root@sac04:~ (ad-default)]$ accelo deploy addonsWARN: Gauntlet is running in dry run mode. Disable this to delete indices from elastic and purge data from mongo DBINFO: Active Cluster:  zeus? Select the components you would like to install:  Actions Service, Core Connectors, Dashplot, Director (Agents MUST be configured), Druid Analyzer, Facelift UI, HYDRA, LogSearchNow, trying to logon to the AccelData registry... : SUCCESS ✓Starting the deployment ..Completed [========================================================================================================================================] 100.00% 20s✓ Done, Addons deployment completed.
Copy

Check the Docker logs by running docker logs -f ad-druid-analyzer_default:

Bash


[root@sac04:~ (ad-default)]$ docker logs -f ad-druid-analyzer_default2024-04-23 00:07:21,480 INFO supervisord started with pid 12024-04-23 00:07:21,480 INFO supervisord started with pid 12024-04-23 00:07:22,485 INFO spawned: 'druid-analyzer' with pid 72024-04-23 00:07:22,485 INFO spawned: 'druid-analyzer' with pid 72024-04-23 00:07:22,524 DEBG 'druid-analyzer' stdout output:2024-04-23T00:07:22.523+0530    INFO    app/app.go:48   Loading config from env​2024-04-23 00:07:22,524 DEBG 'druid-analyzer' stdout output:2024-04-23T00:07:22.523+0530    INFO    app/app.go:48   Loading config from env​2024-04-23 00:07:22,525 DEBG 'druid-analyzer' stdout output:2024-04-23T00:07:22.524+0530    INFO    app/app.go:114  Druid Analyser Starting!!​2024-04-23 00:07:22,525 DEBG 'druid-analyzer' stdout output:2024-04-23T00:07:22.524+0530    INFO    app/app.go:114  Druid Analyser Starting!!​2024-04-23 00:07:22,532 DEBG 'druid-analyzer' stdout output:2024-04-23T00:07:22.532+0530    INFO    app/app.go:192  Starting metrics consumers​2024-04-23 00:07:22,532 DEBG 'druid-analyzer' stdout output:2024-04-23T00:07:22.532+0530    INFO    app/app.go:192  Starting metrics consumers​2024-04-23 00:07:22,533 DEBG 'druid-analyzer' stdout output:2024-04-23T00:07:22.532+0530    INFO    app/app.go:153  Starting producers2024-04-23T00:07:22.532+0530    INFO    producer/producer.go:24 Druid Analyser Producer Starting!!
Copy

Miscellaneous

To generate the Docker yaml config for ad-druid-analyzer, run the following command:

Bash


accelo admin makeconfig ad-druid-analyzer_default
Copy

Expected Output:

Bash


[root@sac04:~ (ad-default)]$ accelo admin makeconfig ad-druid-analyzerWARN: Gauntlet is running in dry run mode. Disable this to delete indices from elastic and purge data from mongo DB✓ Done, Configuration file generatedIMPORTANT: Please edit/verify the file '/data01/acceldata/config/docker/addons/ad-druid-analyzer.yml'.If the addon is already up and running, use './accelo deploy addons' to remove and recreate the addon service.
Copy

The Docker yaml file should like as shown below:

YAML


[root@sac04:~ (ad-default)]$ cat /data01/acceldata/config/docker/addons/ad-druid-analyzer.ymlversion: "2"services:  ad-druid-analyzer:    image: ad-druid-analyzer    container_name: ""    environment:    - STREAM_NAME=druid_metrics    - VMDB_URL=http://ad-vminsert:8480/insert    - NATS_URL=http://ad-events:4222    - DRUID_ANALYSER_PORT=19090    - POLL_DURATION_TIME=20    - MAX_BATCH_SIZE=1000    - FLUSH_INTERVAL=60    - LOG_LEVEL=error    volumes:    - /etc/localtime:/etc/localtime:ro    ulimits: {}    ports:    - 19090:19090    depends_on: []    opts: {}    restart: ""    extra_hosts: []    network_alias: []label: Druid Analyzer
Copy

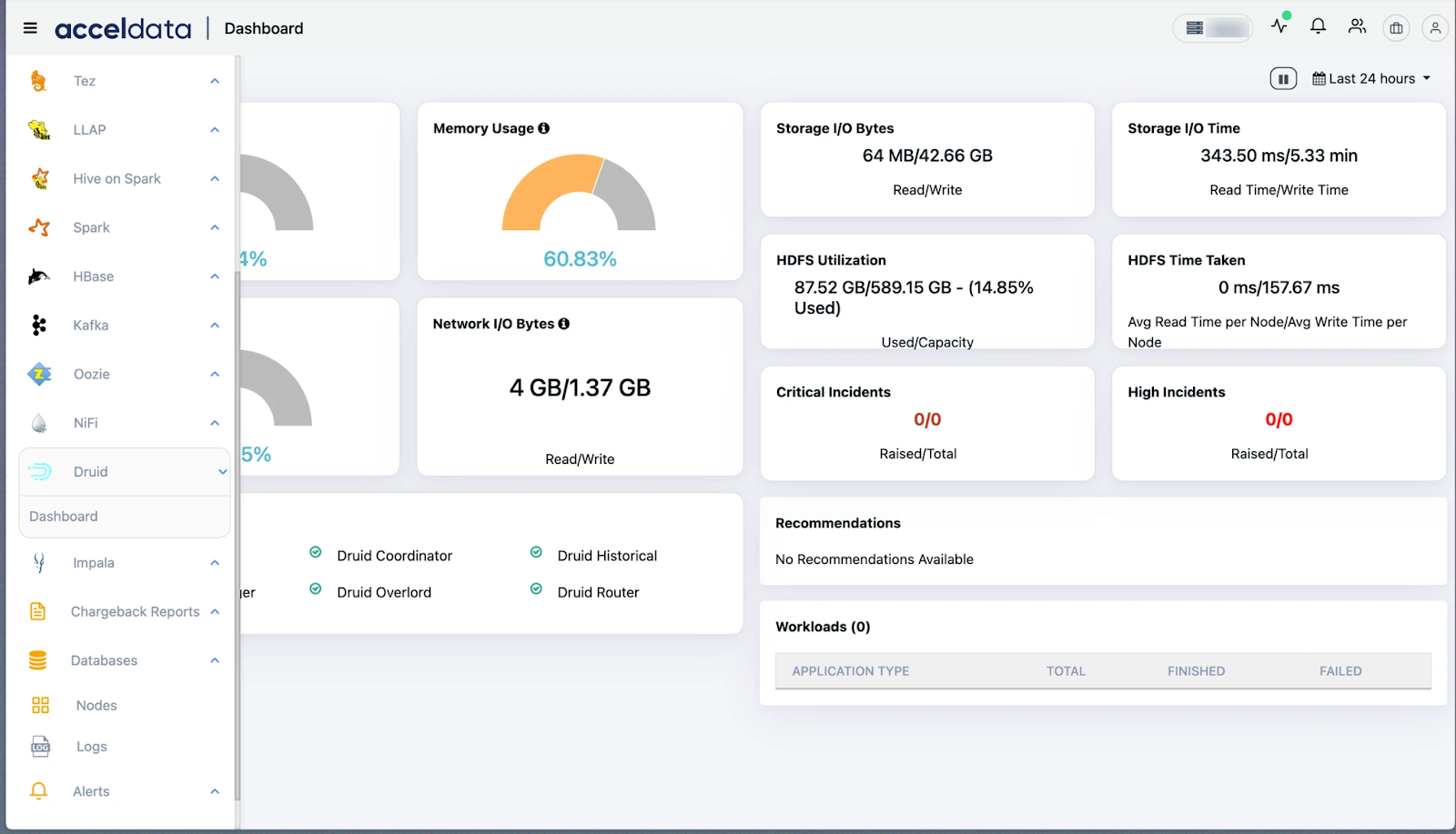

View Druid on Pulse UI

To view the Druid dashboard on the Pulse UI, perform the following:

Select Druid while generating the license file for the required version of Pulse:
Place the license file in the correct location:

Bash


$AcceloHome/work/license
Copy

Restart the ad-graphql service:

Bash


accelo restart ad-graphql
Copy

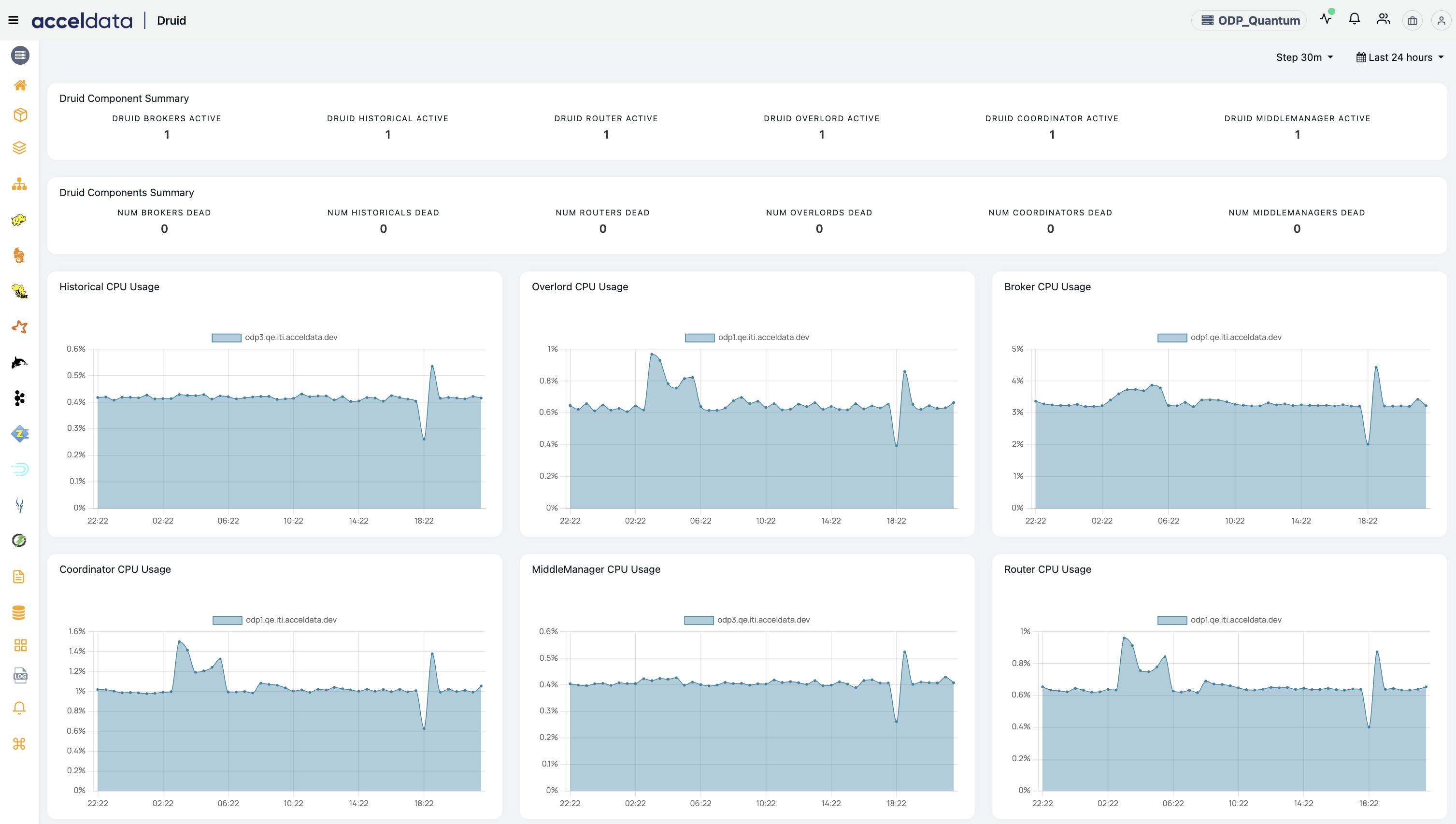

Druid Dashboard

The following charts are displayed in the Druid Dashboard:

Chart Name	Description
Druid Component Summary (Active)	Shows the summary of all active Druid components (e.g., Brokers, Historicals, Router, Overlord).
Druid Component Summary (Dead)	Shows the summary of all dead Druid components (e.g., Brokers, Historicals, Router, Overlord).
Historical CPU Usage	Displays the CPU usage for the Historical node over time.
Overlord CPU Usage	Displays the CPU usage for the Overlord node over time.
Broker CPU Usage	Displays the CPU usage for the Broker node over time.
Coordinator CPU Usage	Displays the CPU usage for the Coordinator node over time.
MiddleManager CPU Usage	Displays the CPU usage for the MiddleManager node over time.
Router CPU Usage	Displays the CPU usage for the Router node over time.
Average Druid JVM Heap Memory	Shows the average JVM heap memory usage across different Druid services (e.g., Broker, Historical).
Druid Connections Growth Percent	Displays the growth percentage of connections across various Druid components.
Open Connections Count	Shows the count of open connections across different Druid services over time.
Disk I/O Size	Shows the disk input/output size across various Druid components (e.g., Broker, Historical).
Disk I/O Component	Displays the disk input/output operations for different Druid components (e.g., Router, Coordinator).

Druid Endpoint Alerts

To enable Druid Endpoint alerts, perform the following:

Navigate to the left menu and click Alerts.
Filter the Alert type as Druid. The list of Druid alerts are displayed.
Select the checkboxes for the endpoints that you would like to enable the alert > Click the Action for Selected Alerts button > Enable Alerts option from the drop-down list.
On enabling the alerts, the alerts are displayed in the Service Status section of the Dashboard page.
