Adding a New Node to the ODP Cluster

You can follow the below steps to add a new node to the ODP cluster.

Add the Amabri Repository

It must be the same as the existing cluster.

cat /etc/yum.repos.d/ambari.repo

Bash


[ambari]async = 1baseurl = https://mirror.odp.acceldata.dev/AMBARI/RHEL/2.7.9.2-1/gpgcheck = 0name = ambari Version - ambari-2.7.9.2.1
Copy

Add Prerequisites

Make sure to meet the following prerequisites on each cluster node.

Make sure to link ODP on Hetzner.

Configure the host file using the following command.

Bash


vim /etc/hosts
Copy

Set the hostname using the following command.

Bash


hostnamectl set-hostname ce05.acceldata.dvl
Copy

Run the command vim /etc/resolv.conf and configure as below.

Bash


search acceldata.dvlnameserver <ip-address>
Copy

Run the command vim /etc/selinux/config and disable SELinux.

Bash


SELINUX=disabled
Copy

Install the Agent

Bash


yum clean all  yum install ambari-agent* -y
Copy

Add the Server details to Agent

vim /etc/ambari-agent/conf/ambari-agent.ini

Bash


[server]hostname=ce04.acceldata.dvl
Copy

Install Java

Bash


yum install java-11*
Copy

Install Python

Bash


[root@ce16 ~]# python -V-bash: python: command not found
Copy

Bash


yum install python3.11 -y
Copy

Bash


update-alternatives --config python
Copy

Bash


[root@ce16 ~]# update-alternatives --config pythonThere are 3 programs which provide 'python'.  Selection    Command-----------------------------------------------*  1           /usr/libexec/no-python   2           /usr/bin/python3 + 3           /usr/bin/python3.11Enter to keep the current selection[+], or type selection number: 3Skip Users and Group creation
Copy

Skip Users and Group Creation

Follow from the Ambari server node:

Template:

Bash

​x

/var/lib/ambari-server/resources/scripts/configs.py --unsafe --user=[user-name] --password=[password] --port=[PORT] --protocol=[http | https] --action=get --host=[Ambari-server-hostname-FQDN] --cluster=[CLUSTER_NAME]  --config-type=cluster-env​/var/lib/ambari-server/resources/scripts/configs.py  --unsafe --user=[user-name] --password=[password] --port=[PORT] --protocol=[http | https] --action=set --host=[Ambari-server-hostname-FQDN] --cluster=[CLUSTER_NAME]  --config-type=cluster-env --key=sysprep_skip_create_users_and_groups --value=false​/var/lib/ambari-server/resources/scripts/configs.py --unsafe  --user=[user-name] --password=[password] --port=[PORT] --protocol=[http | https] --action=set --host=[Ambari-server-hostname-FQDN] --cluster=[CLUSTER_NAME]  --config-type=cluster-env --key=ignore_groupsusers_create --value=false
Copy

Example:

Bash

/var/lib/ambari-server/resources/scripts/configs.py --unsafe --user=admin --password=admin --port=8080 --protocol=http --action=get --host=ce04.acceldata.dvl --cluster=ODP_322_darth --config-type=cluster-env​/var/lib/ambari-server/resources/scripts/configs.py --unsafe --user=admin --password=admin --port=8080 --protocol=http --action=set --host=ce04.acceldata.dvl --cluster=ODP_322_darth --config-type=cluster-env --key=sysprep_skip_create_users_and_groups --value=false​/var/lib/ambari-server/resources/scripts/configs.py --unsafe --user=admin --password=admin --port=8080 --protocol=http --action=set --host=ce04.acceldata.dvl --cluster=ODP_322_darth --config-type=cluster-env --key=ignore_groupsusers_create --value=false
Copy

Response:

Bash

[root@ce04 resources]# /var/lib/ambari-server/resources/scripts/configs.py --unsafe --user=admin --password=admin --port=8080 --protocol=http --action=set --host=ce04.acceldata.dvl --cluster=ODP_322_darth --config-type=cluster-env --key=sysprep_skip_create_users_and_groups --value=false2024-09-19 13:00:12,742 INFO ### Performing "set":2024-09-19 13:00:12,742 INFO ### new property - "sysprep_skip_create_users_and_groups":"false"2024-09-19 13:00:12,755 INFO ### on (Site:cluster-env, Tag:70e63be9-dc4e-4116-a2f7-58911eea52e5)2024-09-19 13:00:12,762 INFO ### PUTting json into: doSet_version1726743612762815.json2024-09-19 13:00:12,778 INFO ### NEW Site:cluster-env, Tag:version1726743612762815
Copy

and

Bash

[root@ce04 resources]# /var/lib/ambari-server/resources/scripts/configs.py --unsafe --user=admin --password=admin --port=8080 --protocol=http --action=set --host=ce04.acceldata.dvl --cluster=ODP_322_darth --config-type=cluster-env --key=ignore_groupsusers_create --value=false2024-09-19 13:00:29,339 INFO ### Performing "set":2024-09-19 13:00:29,339 INFO ### new property - "ignore_groupsusers_create":"false"2024-09-19 13:00:29,351 INFO ### on (Site:cluster-env, Tag:70e63be9-dc4e-4116-a2f7-58911eea52e5)2024-09-19 13:00:29,358 INFO ### PUTting json into: doSet_version1726743629358720.json2024-09-19 13:00:29,368 INFO ### NEW Site:cluster-env, Tag:version1726743629358720
Copy

Install ODP Select manually on a New Host

Add the ODP-Repository

cat /etc/yum.repos.d/ambari-odp-1.repo

Bash


[ODP-3.6-repo-1]name=ODP-3.6-repo-1baseurl=https://mirror.odp.acceldata.dev/ODP/centos/3.3.6.2-1/​path=/enabled=1gpgcheck=0[ODP-UTILS-1.1.0.22-repo-1]name=ODP-UTILS-1.1.0.22-repo-1baseurl=https://mirror.odp.acceldata.dev/ODP/centos/ODP-UTILS-1.1.0.22/rhel8/9/​path=/enabled=1
Copy

Install the ODP-Select

Bash


yum install odp-select* -y
Copy

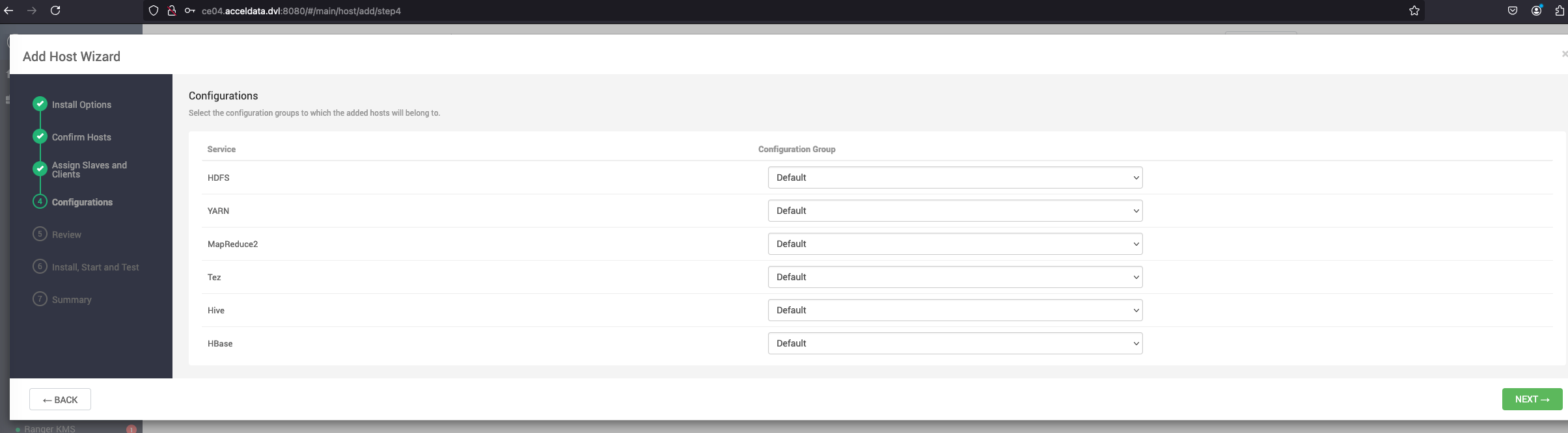

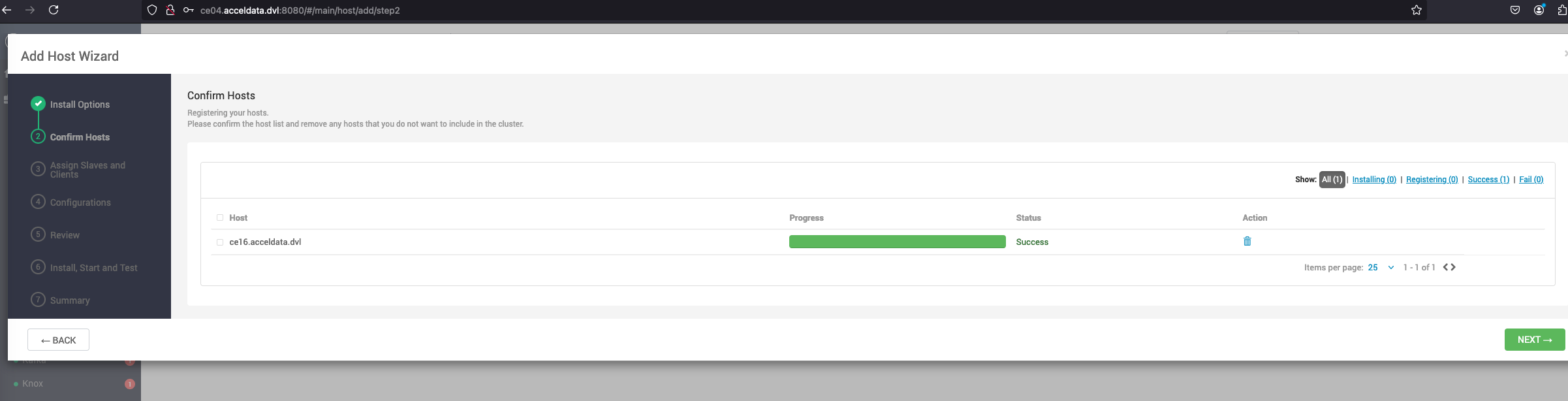

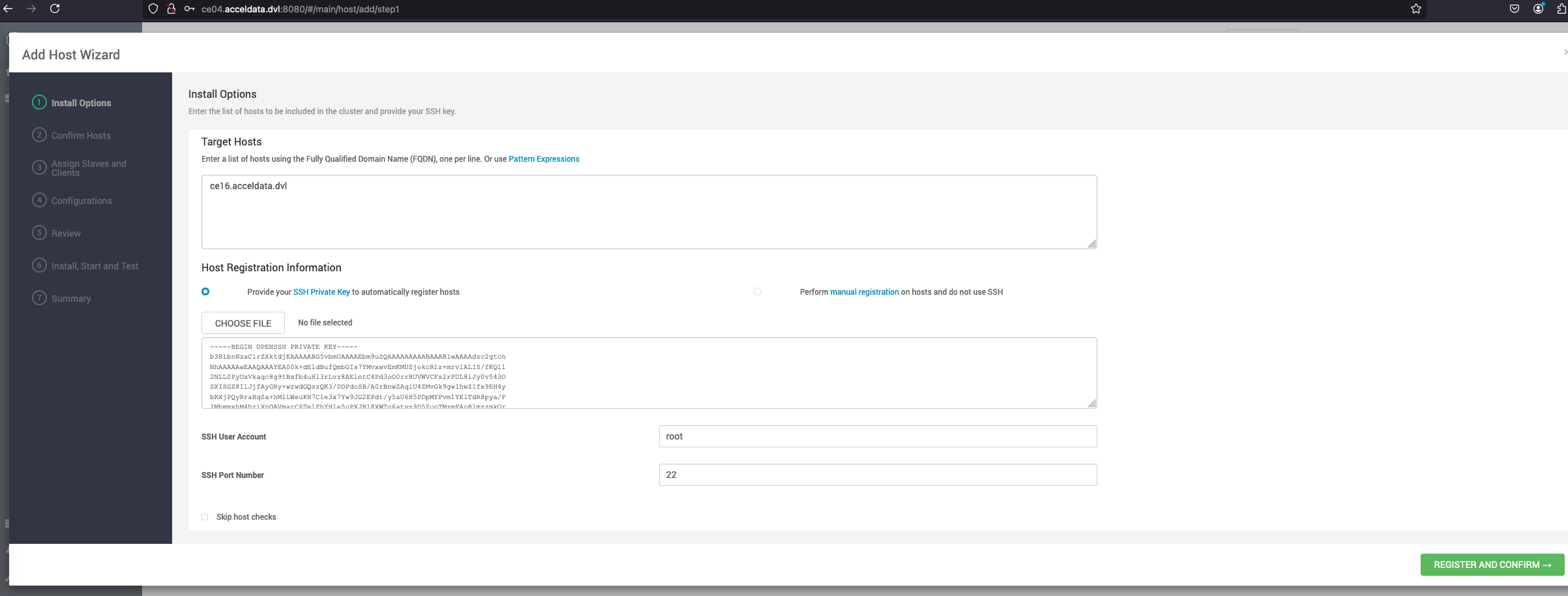

Add an Agent from the Amabri UI

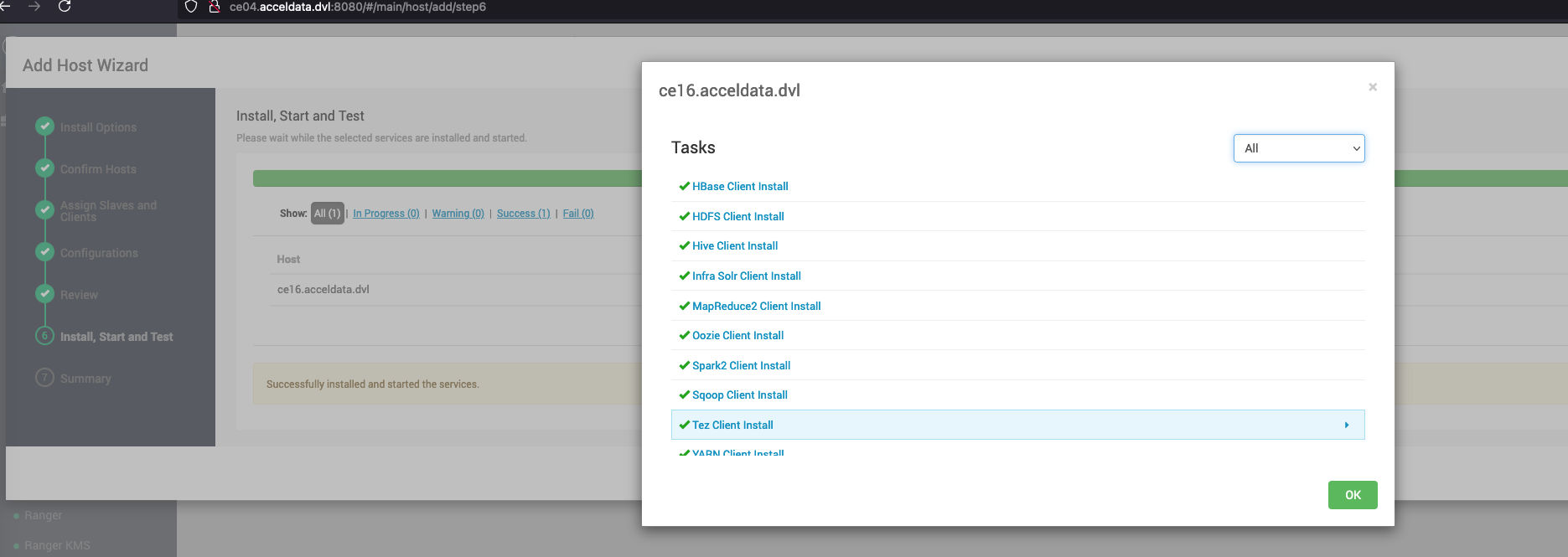

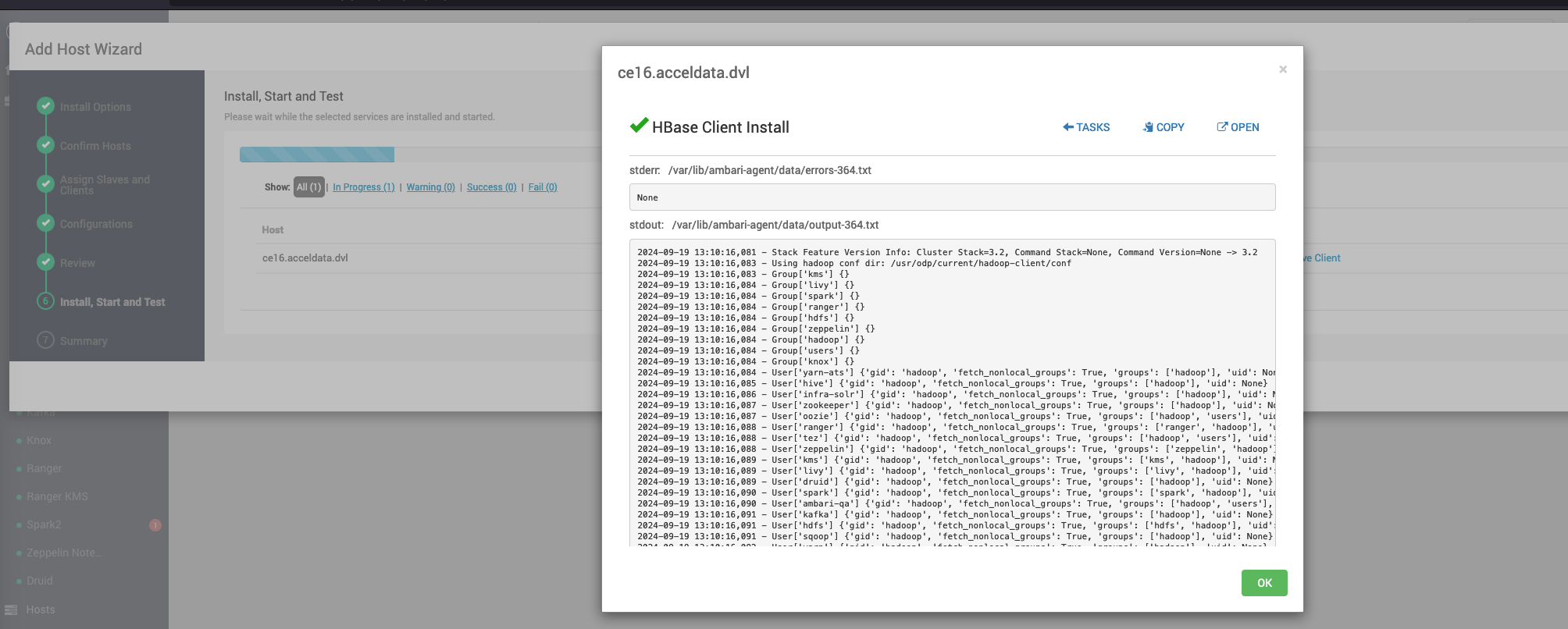

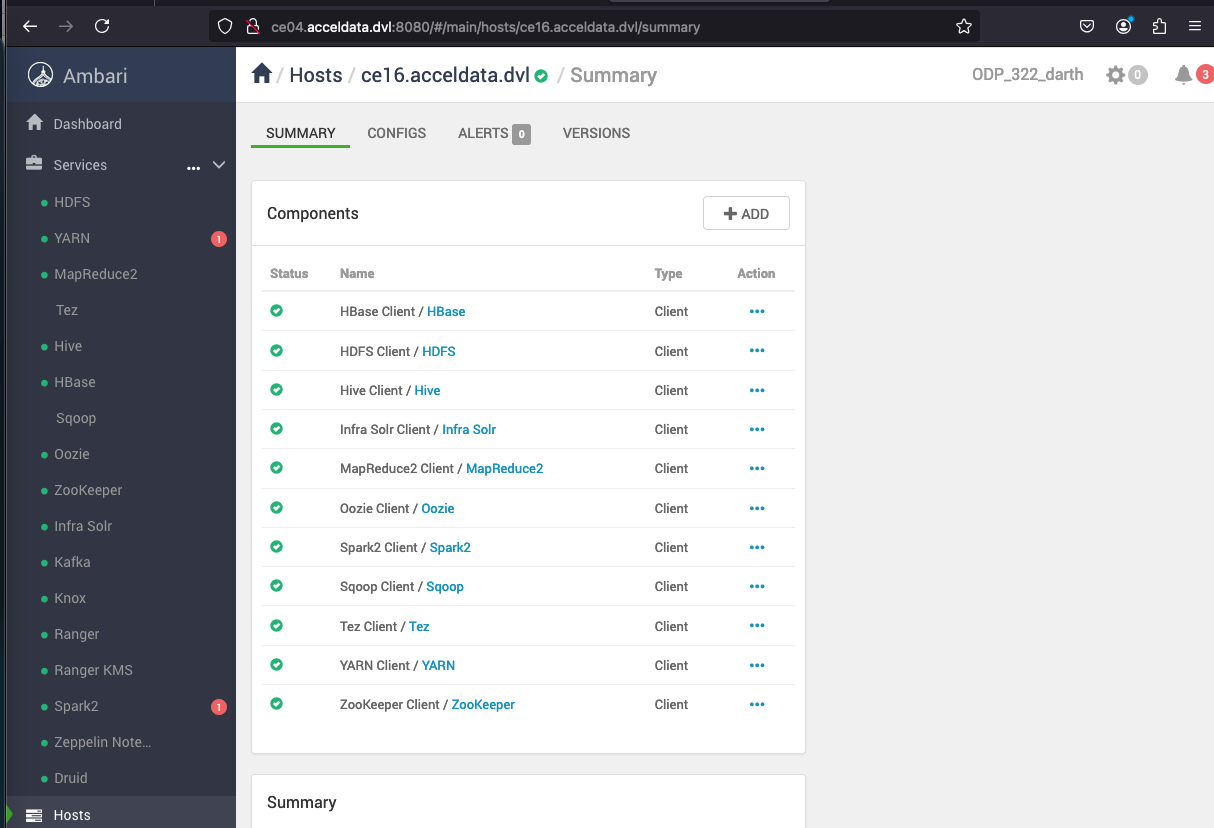

Install the Clients

Troubleshooting Steps

Issue-1

If the user and group creation skipping is not performed, the following error appears.

File "/var/lib/ambari-agent/cache/stack-hooks/before-ANY/scripts/shared_initialization.py", line 50, in setup_users groups = params.user_to_groups_dict[user], KeyError: hbase' Error: Error: Unable to run the custom hook script ['/usr/bin/python', '/var/lib/ambari-agent/cache/stack-hooks/before-ANY/scripts/hook.py', 'ANY', '/var/lib/ambari-agent/data/command-63224.json', '/var/lib/ambari-agent/cache/stack-hooks/before-ANY', '/var/lib/ambari-agent/data/structured-out-63224.json', 'INFO', '/var/lib/ambari-agent/tmp', 'PROTOCOL_TLSv1_ 2', '']

Solution: Perform as suggested in Skip Users and Group Creation.

Issue-2

If odp-select is installed on new node before adding it to the cluster, the following error appears.

Unable to query for supported packages using /usr/bin/odp-select.

Solution: Add a repository as mentioned in Install ODP Select Manually on a New Host.\

Issue-3

Distro Module adding

Bash


====================Traceback (most recent call last):  File "/usr/lib/ambari-agent/lib/ambari_agent/main.py", line 33, in <module>    from ambari_agent import AmbariConfig  File "/usr/lib/ambari-agent/lib/ambari_agent/AmbariConfig.py", line 30, in <module>    from ambari_commons.os_family_impl import OsFamilyFuncImpl, OsFamilyImpl  File "/usr/lib/ambari-agent/lib/ambari_commons/init.py", line 21, in <module>    from ambari_commons.os_check import OSCheck, OSConst  File "/usr/lib/ambari-agent/lib/ambari_commons/os_check.py", line 25, in <module>    import distroModuleNotFoundError: No module named 'distro'
Copy

Solution:

Bash

curl https://bootstrap.pypa.io/get-pip.py -o get-pip.py /usr/bin/python3.11 get-pip.py /usr/bin/python3.11 -m pip install distro /usr/bin/python3.11 -c "import distro"
Copy

Last updated on Aug 5, 2025
