Namespace

The Namespace page provides detailed insights into Kubernetes namespaces, including CPU and memory usage trends, along with a comprehensive namespace summary.

In the Pulse UI, select the Kubernetes cluster. Then, from the left-side menu, navigate to Kubernetes Dashboard > Namespace.

Charts

The charts display memory and CPU usage for each namespace.

Metric

Description

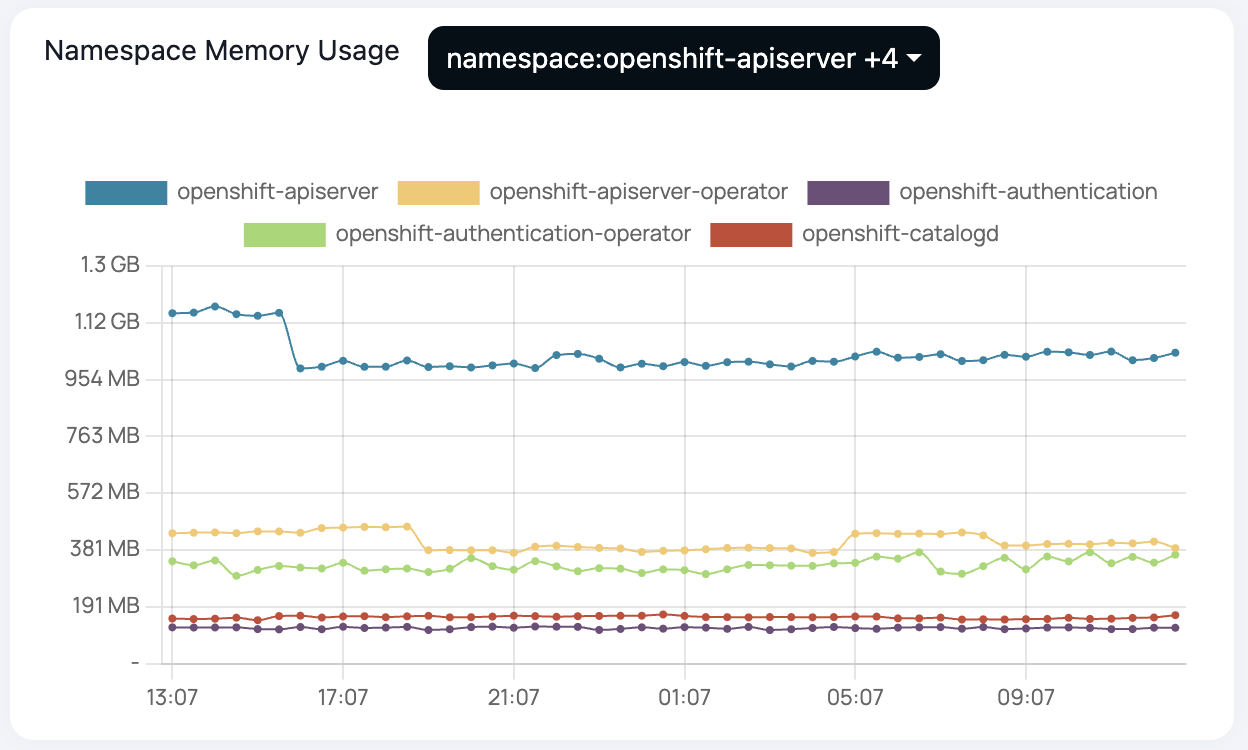

Namespace Memory Usage

Shows memory consumption per namespace.

In the example below, openshift-apiserver consistently consumes the most memory, while openshift-authentication uses the least.

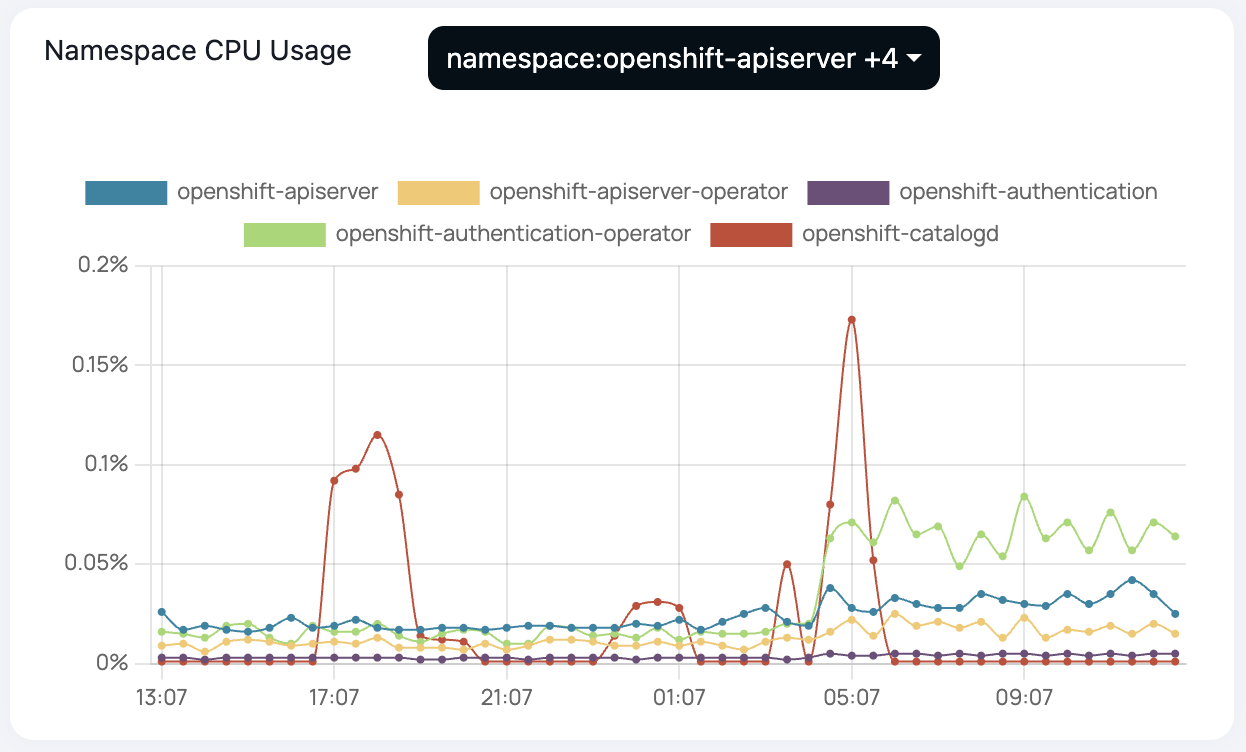

Namespace CPU Usage

Shows CPU usage trends across different OpenShift namespaces.

In the below example, the openshift-catalogd namespace shows the highest CPU spikes, while openshift-authentication consistently records the lowest usage.

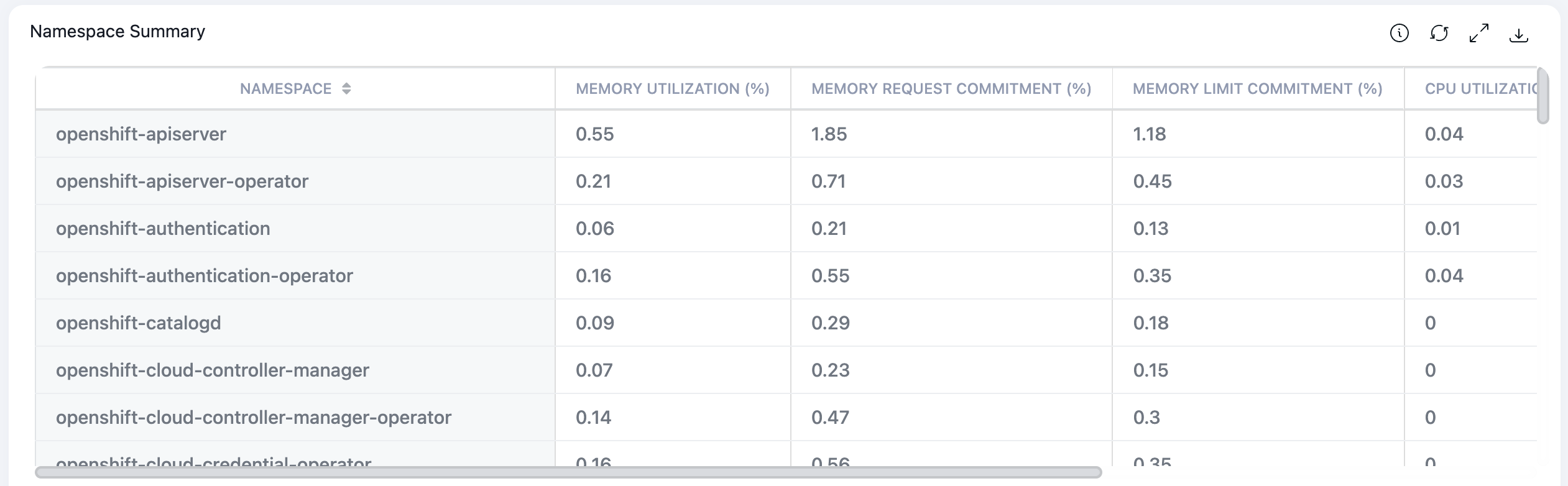

Namespace Summary

The namespace summary displays a list of namespaces along with their CPU and memory usage percentages.

Metric	Description
Namespace	The name of the namespace.
Memory Utilization (%)	The percentage of memory being utilized by the namespace.
Memory Request Commitment (%)	The percentage of memory requested by pods in the namespace.
Memory Limit Commitment (%)	The maximum percentage of total memory the pods are allowed to use in the namespace.
CPU Utilization (%)	The percentage of CPU being utilized by the namespace.
CPU Request Commitment (%)	The percentage of CPU requested by pods in the namespace.
CPU Limit Commitment (%)	The maximum percentage of total CPU the pods are allowed to use in the namespace.
