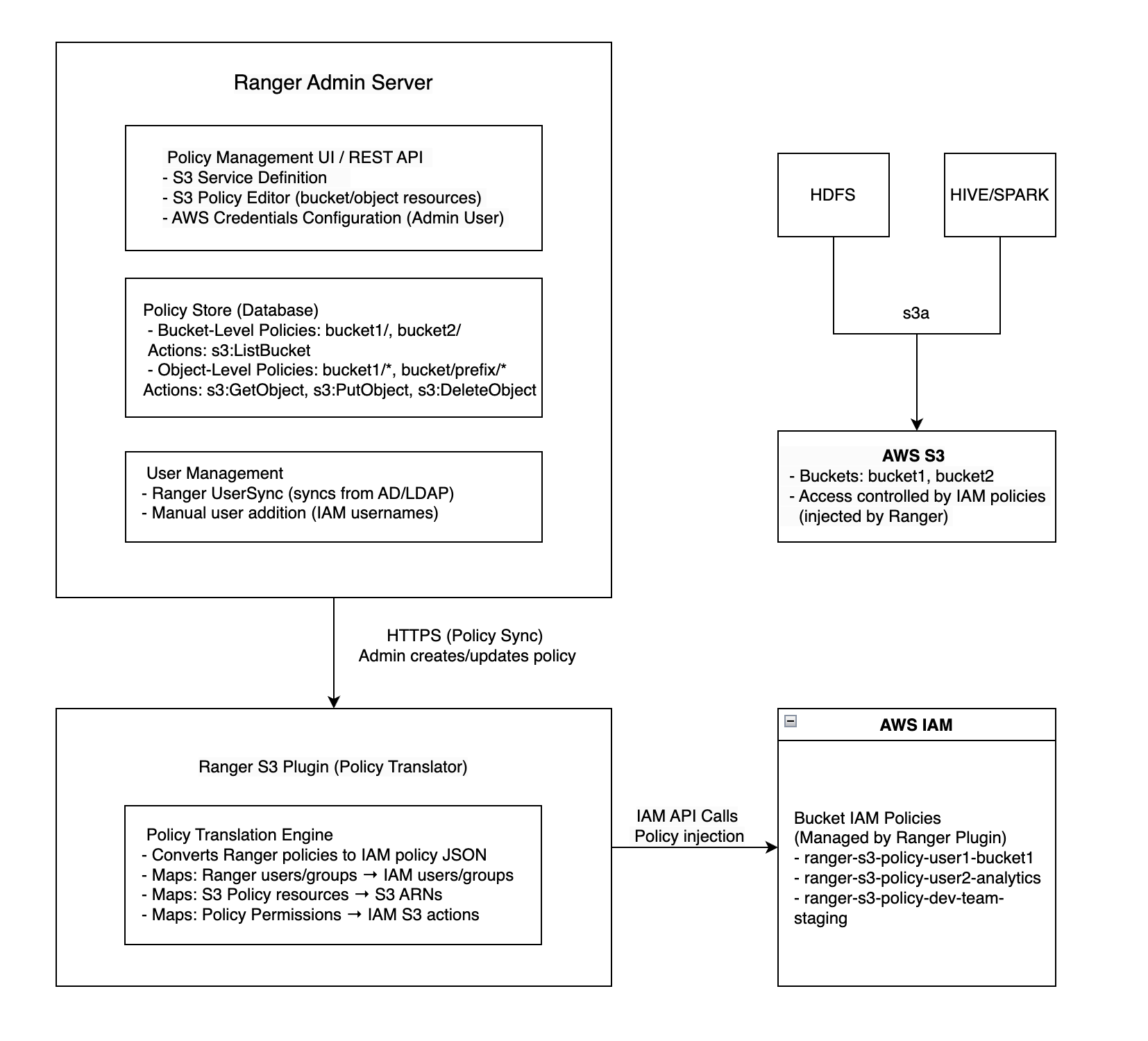

S3 Plugin Implementation Architecture

This page lists the high-level architecture of the Ranger.

Policy Management UI / REST API

S3 Service Definition: Defines S3 as a manageable service type in Ranger
S3 Policy Editor:
- Allows creation of bucket-level and object-level policies
- Supports resource patterns: bucket1/, bucket1/*, bucket1/prefix/*
- Supports S3-specific actions
AWS Credentials Configuration: Admin user configures AWS access credentials for IAM policy injection

The user is required to create separate policies for buckets and objects with respective permissions.

User Management

Ranger UserSync: Automatically synchronizes users from AD/LDAP into Ranger
- Assumes these users also exist in AWS IAM with matching usernames
- Maintains user identity consistency across Ranger and AWS
Manual User Addition: Admin can manually add IAM usernames to Ranger users
- Used when AD/LDAP sync not available
- Required when IAM usernames differ from AD/LDAP usernames
