YARN

Update the Java 17 flags as mentioned below.


Update 1: Advanced yarn-hbase-env -> hbase-env

Update the YARN Java 17 flags as shown below.

File location: Log in to the Ambari UI and navigate to YARNConfigsAdvancedAdvanced yarn-hbase-envhbase-env template.

export SERVER_GC_OPTS="-verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -Xloggc:{{yarn_hbase_log_dir}}/gc.log-`date +'%Y%m%d%H%M'`"

Replace it with the updated code block below.

# Set environment variables here. # The java implementation to use. Java 1.6 required. export JAVA_HOME={{java64_home}} # HBase Configuration directory export HBASE_CONF_DIR=${HBASE_CONF_DIR:-{{yarn_hbase_conf_dir}}} # Extra Java CLASSPATH elements. Optional. export HBASE_CLASSPATH=${HBASE_CLASSPATH} # The maximum amount of heap to use. Default is left to JVM default. # export HBASE_HEAPSIZE=4G # Extra Java runtime options. # Below are what we set by default. May only work with SUN JVM. # For more on why as well as other possible settings, # see http://wiki.apache.org/hadoop/PerformanceTuning {% if java_version == 8 %} # For Java 8 export SERVER_GC_OPTS="-verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -Xloggc:{{yarn_hbase_log_dir}}/gc.log-`date +'%Y%m%d%H%M'`" {% else %} # For Java 11 and above export SERVER_GC_OPTS="-Xlog:gc*,gc+heap=debug,gc+phases=debug:file={{yarn_hbase_log_dir}}/gc.log-`date +'%Y%m%d%H%M'`:time,level,tags" {% endif %} # Uncomment below to enable java garbage collection logging. # export HBASE_OPTS="$HBASE_OPTS -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -Xloggc:$HBASE_HOME/logs/gc-hbase.log" # Uncomment and adjust to enable JMX exporting # See jmxremote.password and jmxremote.access in $JRE_HOME/lib/management to configure remote password access. # More details at: http://java.sun.com/javase/6/docs/technotes/guides/management/agent.html # # export HBASE_JMX_BASE="-Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.authenticate=false" # If you want to configure BucketCache, specify '-XX: MaxDirectMemorySize=' with proper direct memory size # export HBASE_THRIFT_OPTS="$HBASE_JMX_BASE -Dcom.sun.management.jmxremote.port=10103" # export HBASE_ZOOKEEPER_OPTS="$HBASE_JMX_BASE -Dcom.sun.management.jmxremote.port=10104" # File naming hosts on which HRegionServers will run. $HBASE_HOME/conf/regionservers by default. export HBASE_REGIONSERVERS=${HBASE_CONF_DIR}/regionservers # Extra ssh options. Empty by default. # export HBASE_SSH_OPTS="-o ConnectTimeout=1 -o SendEnv=HBASE_CONF_DIR" # Where log files are stored. $HBASE_HOME/logs by default. export HBASE_LOG_DIR=${HBASE_LOG_DIR:-{{yarn_hbase_log_dir}}} # A string representing this instance of hbase. $USER by default. # export HBASE_IDENT_STRING=$USER # The scheduling priority for daemon processes. See 'man nice'. # export HBASE_NICENESS=10 # The directory where pid files are stored. /tmp by default. export HBASE_PID_DIR=${HBASE_PID_DIR:-{{yarn_hbase_pid_dir}}} # Seconds to sleep between slave commands. Unset by default. This # can be useful in large clusters, where, e.g., slave rsyncs can # otherwise arrive faster than the master can service them. # export HBASE_SLAVE_SLEEP=0.1 # Tell HBase whether it should manage it's own instance of Zookeeper or not. export HBASE_MANAGES_ZK=false {% if java_version < 8 %} JDK_DEPENDED_OPTS="-XX:PermSize=128m -XX:MaxPermSize=128m" {% endif %} {% if java_version == 8 %} # For Java 8 export HBASE_OPTS="$HBASE_OPTS -XX:+UseConcMarkSweepGC -XX:ErrorFile=$HBASE_LOG_DIR/hs_err_pid%p.log -Djava.io.tmpdir={{yarn_hbase_java_io_tmpdir}}" export HBASE_REGIONSERVER_OPTS="$HBASE_REGIONSERVER_OPTS -XX:CMSInitiatingOccupancyFraction=70 -XX:ReservedCodeCacheSize=256m -Xms{{yarn_hbase_regionserver_heapsize}} -Xmx{{yarn_hbase_regionserver_heapsize}} $JDK_DEPENDED_OPTS" {% else %} # For Java 11 and above export HBASE_OPTS="$HBASE_OPTS -XX:+UseG1GC -XX:ErrorFile=$HBASE_LOG_DIR/hs_err_pid%p.log -Djava.io.tmpdir={{yarn_hbase_java_io_tmpdir}}" export HBASE_REGIONSERVER_OPTS="$HBASE_REGIONSERVER_OPTS -XX:InitiatingHeapOccupancyPercent=70 -XX:ReservedCodeCacheSize=256m -Xms{{yarn_hbase_regionserver_heapsize}} -Xmx{{yarn_hbase_regionserver_heapsize}} $JDK_DEPENDED_OPTS" {% endif %} export HBASE_MASTER_OPTS="$HBASE_MASTER_OPTS -Xmx{{yarn_hbase_master_heapsize}} $JDK_DEPENDED_OPTS" {% if security_enabled %} export HBASE_MASTER_OPTS="$HBASE_MASTER_OPTS -Djava.security.auth.login.config={{yarn_hbase_master_jaas_file}}" export HBASE_REGIONSERVER_OPTS="$HBASE_REGIONSERVER_OPTS -Djava.security.auth.login.config={{yarn_hbase_regionserver_jaas_file}}" {% endif %}

Update 2: Advanced yarn-env -> yarn-env

File location: Log in to the Ambari UI and navigate to YARN → Configs → Advanced→ Advanced yarn-env -> yarn-env.

export HADOOP_YARN_HOME={{hadoop_yarn_home}} export HADOOP_LOG_DIR={{yarn_log_dir}} export HADOOP_SECURE_LOG_DIR={{yarn_log_dir}} export HADOOP_PID_DIR={{yarn_pid_dir}} export HADOOP_SECURE_PID_DIR={{yarn_pid_dir}} export HADOOP_LIBEXEC_DIR={{hadoop_libexec_dir}} export JAVA_HOME={{java64_home}} export JAVA_LIBRARY_PATH="${JAVA_LIBRARY_PATH}:{{hadoop_java_io_tmpdir}}" # We need to add the EWMA and RFA appender for the yarn daemons only; # however, HADOOP_ROOT_LOGGER is shared by the yarn client and the # daemons. This is restrict the EWMA appender to daemons only. export HADOOP_LOGLEVEL=${HADOOP_LOGLEVEL:-INFO} export HADOOP_ROOT_LOGGER=${HADOOP_ROOT_LOGGER:-INFO,console} export HADOOP_DAEMON_ROOT_LOGGER=${HADOOP_DAEMON_ROOT_LOGGER:-${HADOOP_LOGLEVEL},EWMA,RFA} # User for YARN daemons export HADOOP_YARN_USER=${HADOOP_YARN_USER:-yarn} # some Java parameters # export JAVA_HOME=/home/y/libexec/jdk1.6.0/ if [ "$JAVA_HOME" != "" ]; then #echo "run java in $JAVA_HOME" JAVA_HOME=$JAVA_HOME fi if [ "$JAVA_HOME" = "" ]; then echo "Error: JAVA_HOME is not set." exit 1 fi JAVA=$JAVA_HOME/bin/java JAVA_HEAP_MAX=-Xmx1000m # For setting YARN specific HEAP sizes please use this # Parameter and set appropriately YARN_HEAPSIZE={{yarn_heapsize}} # check envvars which might override default args if [ "$YARN_HEAPSIZE" != "" ]; then JAVA_HEAP_MAX="-Xmx""$YARN_HEAPSIZE""m" fi # Resource Manager specific parameters # Specify the max Heapsize for the ResourceManager using a numerical value # in the scale of MB. For example, to specify an jvm option of -Xmx1000m, set # the value to 1000. # This value will be overridden by an Xmx setting specified in either HADOOP_OPTS # and/or YARN_RESOURCEMANAGER_OPTS. # If not specified, the default value will be picked from either YARN_HEAPMAX # or JAVA_HEAP_MAX with YARN_HEAPMAX as the preferred option of the two. export YARN_RESOURCEMANAGER_HEAPSIZE={{resourcemanager_heapsize}} # Specify the JVM options to be used when starting the ResourceManager. # These options will be appended to the options specified as HADOOP_OPTS # and therefore may override any similar flags set in HADOOP_OPTS {% if security_enabled %} export YARN_RESOURCEMANAGER_OPTS="-Djava.security.auth.login.config={{yarn_jaas_file}}" {% endif %} {% if java_version|int > 11 %} export YARN_RESOURCEMANAGER_OPTS="$YARN_RESOURCEMANAGER_OPTS {{jvm_flags}}" {% endif %} # Node Manager specific parameters # Specify the max Heapsize for the NodeManager using a numerical value # in the scale of MB. For example, to specify an jvm option of -Xmx1000m, set # the value to 1000. # This value will be overridden by an Xmx setting specified in either HADOOP_OPTS # and/or YARN_NODEMANAGER_OPTS. # If not specified, the default value will be picked from either YARN_HEAPMAX # or JAVA_HEAP_MAX with YARN_HEAPMAX as the preferred option of the two. export YARN_NODEMANAGER_HEAPSIZE={{nodemanager_heapsize}} # Specify the max Heapsize for the timeline server using a numerical value # in the scale of MB. For example, to specify an jvm option of -Xmx1000m, set # the value to 1024. # This value will be overridden by an Xmx setting specified in either HADOOP_OPTS # and/or YARN_TIMELINESERVER_OPTS. # If not specified, the default value will be picked from either YARN_HEAPMAX # or JAVA_HEAP_MAX with YARN_HEAPMAX as the preferred option of the two. export YARN_TIMELINESERVER_HEAPSIZE={{apptimelineserver_heapsize}} {% if security_enabled %} export YARN_TIMELINESERVER_OPTS="-Djava.security.auth.login.config={{ yarn_ats_jaas_file }}" {% endif %} {% if java_version|int > 11 %} export YARN_TIMELINESERVER_OPTS="$YARN_TIMELINESERVER_OPTS {{jvm_flags}}" {% endif %} {% if security_enabled %} export YARN_TIMELINEREADER_OPTS="-Djava.security.auth.login.config={{yarn_ats_jaas_file}}" {% endif %} {% if java_version|int > 11 %} export YARN_TIMELINEREADER_OPTS="$YARN_TIMELINEREADER_OPTS {{jvm_flags}}" {% endif %} {% if security_enabled %} export YARN_REGISTRYDNS_OPTS="-Djava.security.auth.login.config={{yarn_registry_dns_jaas_file}}" {% endif %} {% if java_version|int > 11 %} export YARN_REGISTRYDNS_OPTS="$YARN_REGISTRYDNS_OPTS {{jvm_flags}}" {% endif %} # Specify the JVM options to be used when starting the NodeManager. # These options will be appended to the options specified as HADOOP_OPTS # and therefore may override any similar flags set in HADOOP_OPTS {% if security_enabled %} export YARN_NODEMANAGER_OPTS="-Djava.security.auth.login.config={{yarn_nm_jaas_file}} -Dsun.security.krb5.rcache=none" {% endif %} {% if java_version|int > 11 %} export YARN_NODEMANAGER_OPTS="$YARN_NODEMANAGER_OPTS {{jvm_flags}}" {% endif %} # so that filenames w/ spaces are handled correctly in loops below IFS= # default log directory and file if [ "$HADOOP_LOG_DIR" = "" ]; then HADOOP_LOG_DIR="$HADOOP_YARN_HOME/logs" fi if [ "$HADOOP_LOGFILE" = "" ]; then HADOOP_LOGFILE='yarn.log' fi # default policy file for service-level authorization if [ "$YARN_POLICYFILE" = "" ]; then YARN_POLICYFILE="hadoop-policy.xml" fi # restore ordinary behaviour unset IFS # YARN now uses specific subcommand options of the pattern (command)_(subcommand)_OPTS for every # component. Because of this, HADDOP_OPTS is now used as a simple way to specify common properties # between all YARN components. HADOOP_OPTS="$HADOOP_OPTS -Dyarn.id.str=$YARN_IDENT_STRING" HADOOP_OPTS="$HADOOP_OPTS -Dyarn.policy.file=$YARN_POLICYFILE" HADOOP_OPTS="$HADOOP_OPTS -Djava.io.tmpdir={{hadoop_java_io_tmpdir}}" {% if security_enabled %} HADOOP_OPTS="$HADOOP_OPTS -Djavax.security.auth.useSubjectCredsOnly=false" {% endif %} {% if rm_security_opts is defined %} YARN_RESOURCEMANAGER_OPTS="{{rm_security_opts}} $YARN_RESOURCEMANAGER_OPTS" {% endif %} export YARN_NODEMANAGER_OPTS="$YARN_NODEMANAGER_OPTS -Dnm.audit.logger=INFO,NMAUDIT" export YARN_RESOURCEMANAGER_OPTS="$YARN_RESOURCEMANAGER_OPTS -Dyarn.server.resourcemanager.appsummary.logger=INFO,RMSUMMARY -Drm.audit.logger=INFO,RMAUDIT" {% if registry_dns_needs_privileged_access %} # If the DNS server is configured to use the standard privileged port 53, # the environment variables YARN_REGISTRYDNS_SECURE_USER and # YARN_REGISTRYDNS_SECURE_EXTRA_OPTS must be set. export YARN_REGISTRYDNS_SECURE_USER={{yarn_user}} export YARN_REGISTRYDNS_SECURE_EXTRA_OPTS="-jvm server" {% endif %}

Update 3: Custom yarn-site -> jvm_flags

File location: Log in to the Ambari UI and navigate to YARN → Configs → Advanced→ Custom yarn-site -> jvm_flags

--add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.net=ALL-UNNAMED --add-opens=java.base/java.util.concurrent=ALL-UNNAMED --add-opens=java.base/java.util.concurrent.atomic=ALL-UNNAMED --add-opens=java.base/java.nio=ALL-UNNAMED --add-opens=java.base/java.util=ALL-UNNAMED --add-opens=java.base/java.math=ALL-UNNAMED --add-opens=java.base/java.text=ALL-UNNAMED

Update 3

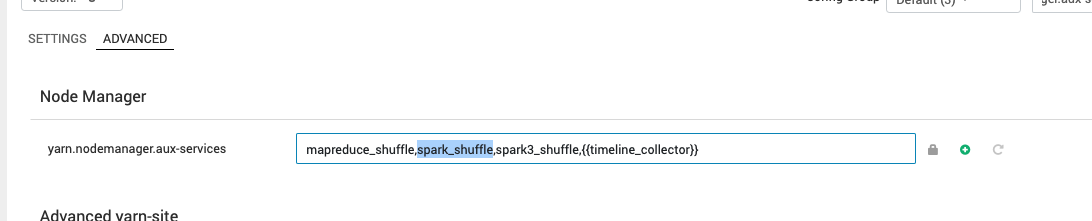

Remove the following from yarn configurations:

  • spark_shuffle from yarn.nodemanager.aux-services


Update 4

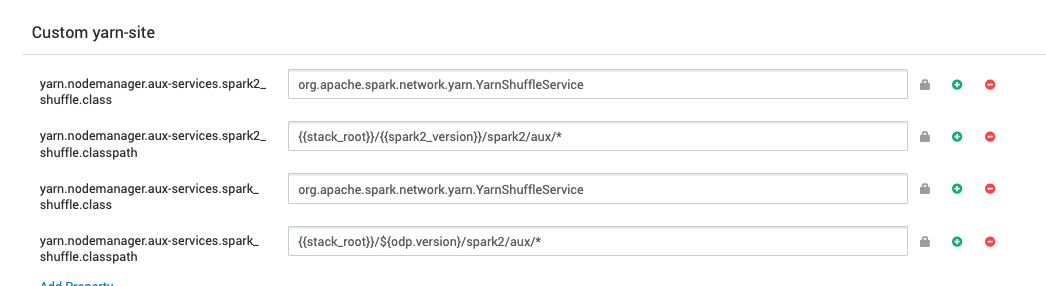

Remove the following from Custom yarn-site:

yarn.nodemanager.aux-services.spark2_shuffle.class yarn.nodemanager.aux-services.spark2_shuffle.classpath yarn.nodemanager.aux-services.spark_shuffle.classpath yarn.nodemanager.aux-services.spark_shuffle.class


Remove all these configurations and save it.
