Configure the Java Options for Services Using JMX Agent in Ambari

You can update the Java options for the services through the Ambari UI.

Below are detailed, service-wise details for all services supported by the JMX agent.

Prerequistes

Ensure to update the ODP Services with JMX settings before proceeding. For details, see Configure ODP Cluster Services for Pulse.

Note

Before configuring the JMX Trans Agent for a service, verify that the required service-specific XML configuration file exists in /opt/acceldata/jmx/config/enabled.

For example, for Cruise Control, verify that vm_cruise_control.xml exists in this directory. If the required XML file is missing, adding the JMX configuration and restarting the service may cause the service to fail to start.

Configuration

Cruise Control

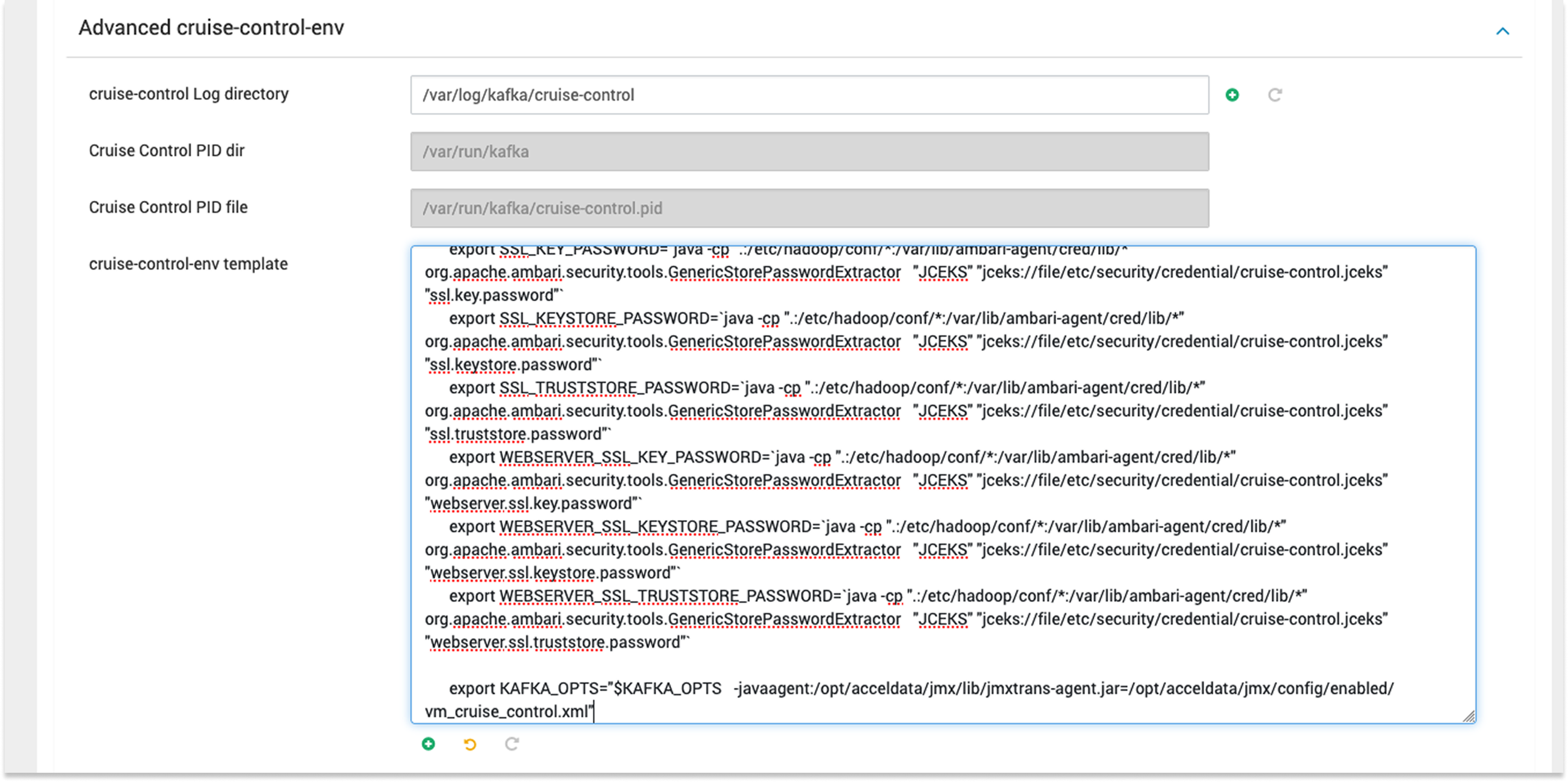

In the Ambari UI, go to Kafka → Advanced → cruise-control-env template.
Add the following line at the end of the template:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_cruise_control.xml"

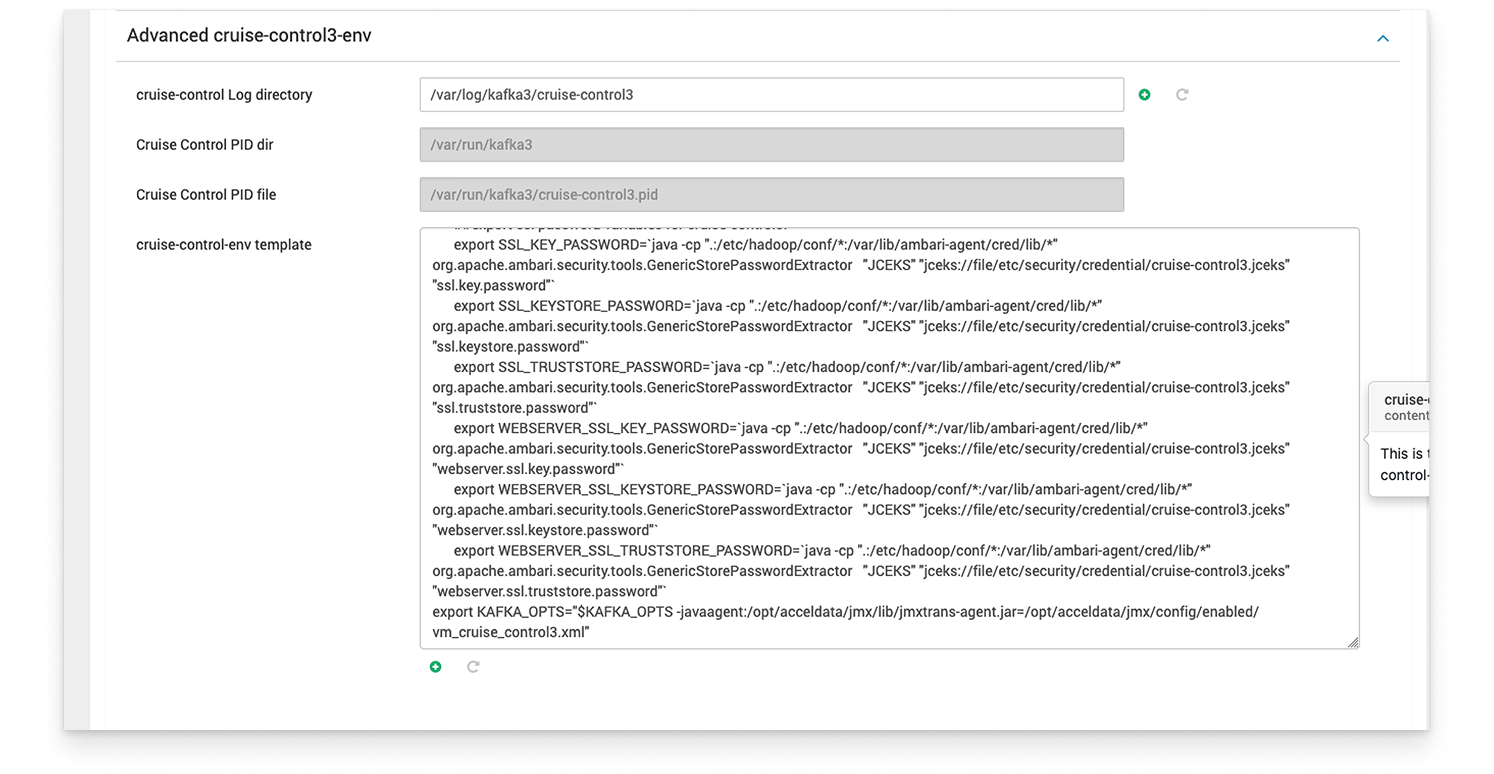

Cruise Control 3

In the Ambari UI, go to Kafka3 → Advanced → cruise-control3-env template.
Add the following line at the end of the template:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_cruise_control3.xml

Hive Metastore

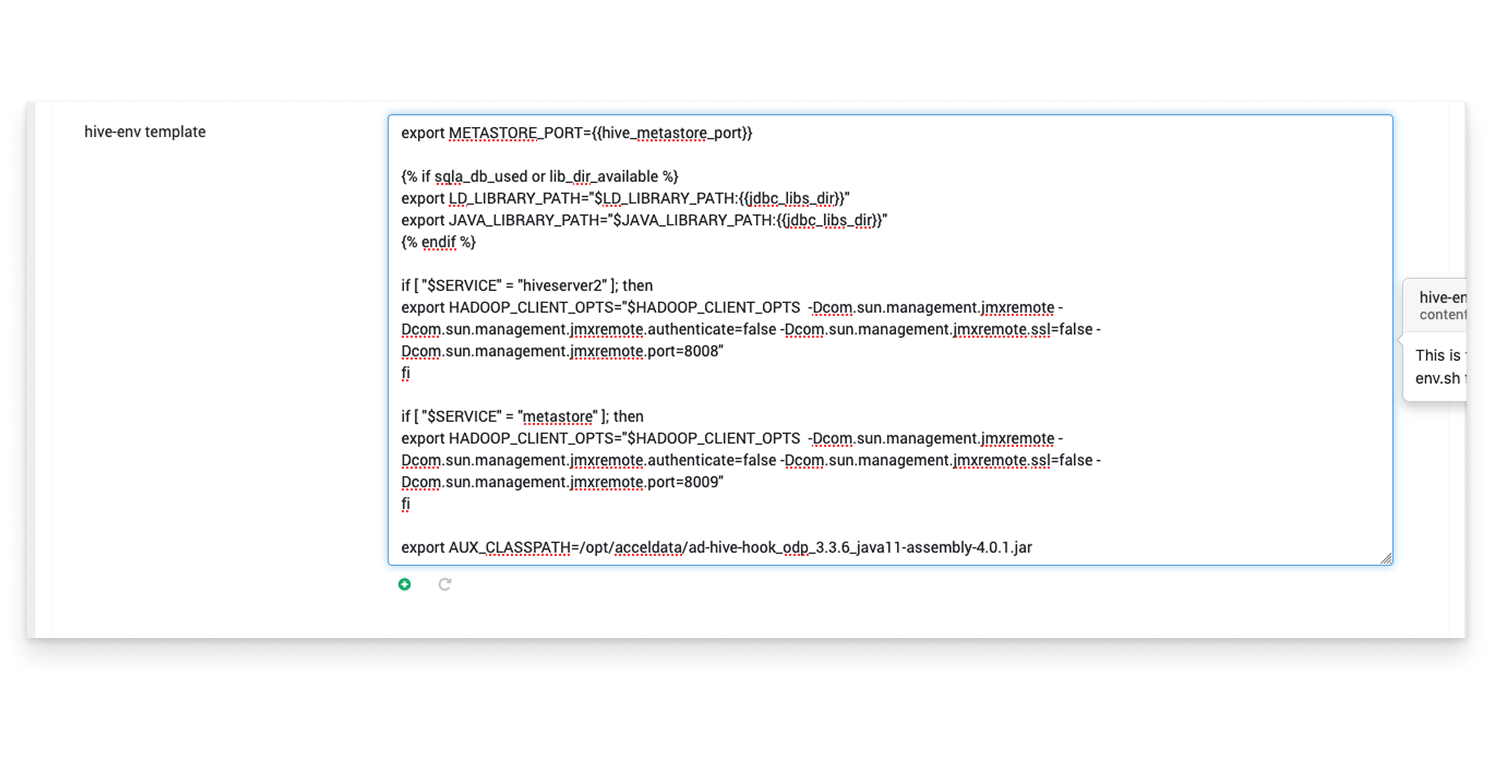

In the Ambari UI, go to Hive → Advanced → hive-env template
Add the following line inside the section: if [ "$SERVICE" = "metastore" ].

export HADOOP_OPTS="$HADOOP_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_hive_metastore.xml"

Hive Server

In the Ambari UI, go to Hive → Advanced → hive-env template.
Add the following line inside the section: if [ "$SERVICE" = "hiveserver2" ].

export HADOOP_OPTS="$HADOOP_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_hive_server.xml"

Kafka

If Kafka Connect is NOT enabled:

Go to Kafka → Advanced → kafka-env template
Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_kafka.xml"

If Kafka Connect is enabled:

Add the following snippet at the end of the kafka-env template:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"
if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then
 if [[ "$KAFKA_LOG4J_OPTS" == *"connect-log4j.properties"* ]]; then
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka_connect.xml"
 else
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka.xml"
 fi
fi

Kafka 3

If Kafka Connect is NOT enabled:

Go to Kafka3 → Advanced → kafka-env template
Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"

If Kafka Connect is enabled:

Add the following snippet:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"
if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then
 CURRENT_CMD_STRING=$(ps -p $$ -o args=)
 if [[ "$CURRENT_CMD_STRING" == *"kafka-connect"* ]]; then
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3_connect.xml"
 elif [[ "$CURRENT_CMD_STRING" == *"kafka3 start"* ]] || [[ "$CURRENT_CMD_STRING" == *"kafka-server-start"* ]]; then
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"
 fi
fi

Kafka Connect

Go to Kafka → Advanced → kafka-env template
Add the following snippet at the end:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"
if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then
 if [[ "$KAFKA_LOG4J_OPTS" == *"connect-log4j.properties"* ]]; then
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka_connect.xml"
 else
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka.xml"
 fi
fi

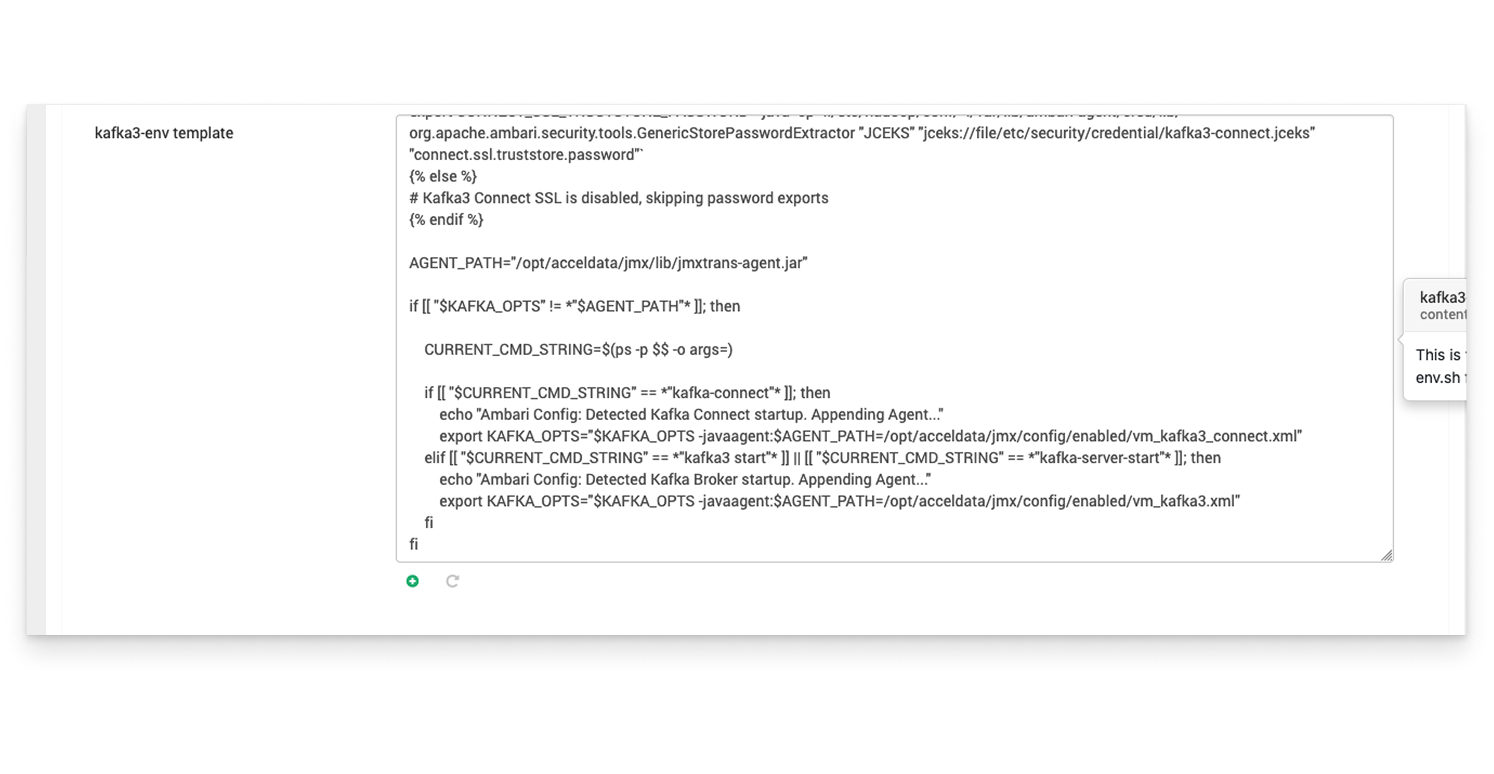

Kafka3 Connect

Go to Kafka3 → Advanced → kafka3-env template.
Add the following snippet at the end:

AGENT_PATH="/opt/acceldata/jmx/lib/jmxtrans-agent.jar"
if [[ "$KAFKA_OPTS" != *"$AGENT_PATH"* ]]; then
 CURRENT_CMD_STRING=$(ps -p $$ -o args=)
 if [[ "$CURRENT_CMD_STRING" == *"kafka-connect"* ]]; then
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3_connect.xml"
 elif [[ "$CURRENT_CMD_STRING" == *"kafka3 start"* ]] || [[ "$CURRENT_CMD_STRING" == *"kafka-server-start"* ]]; then
 export KAFKA_OPTS="$KAFKA_OPTS -javaagent:$AGENT_PATH=/opt/acceldata/jmx/config/enabled/vm_kafka3.xml"
 fi
fi

Kafka MirrorMaker2

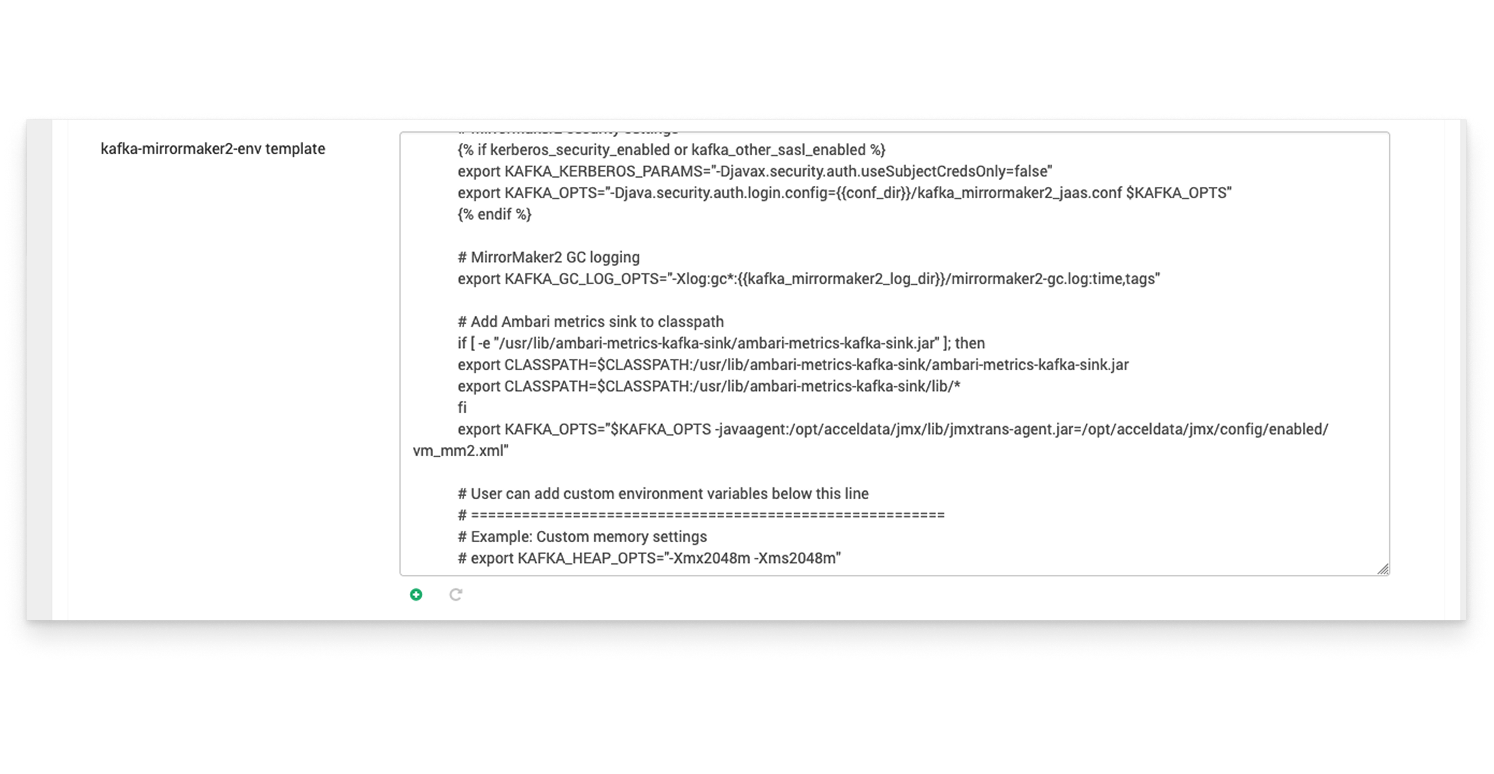

Go to Kafka → Advanced → kafka-mirrormaker2-env
Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_mm2.xml"

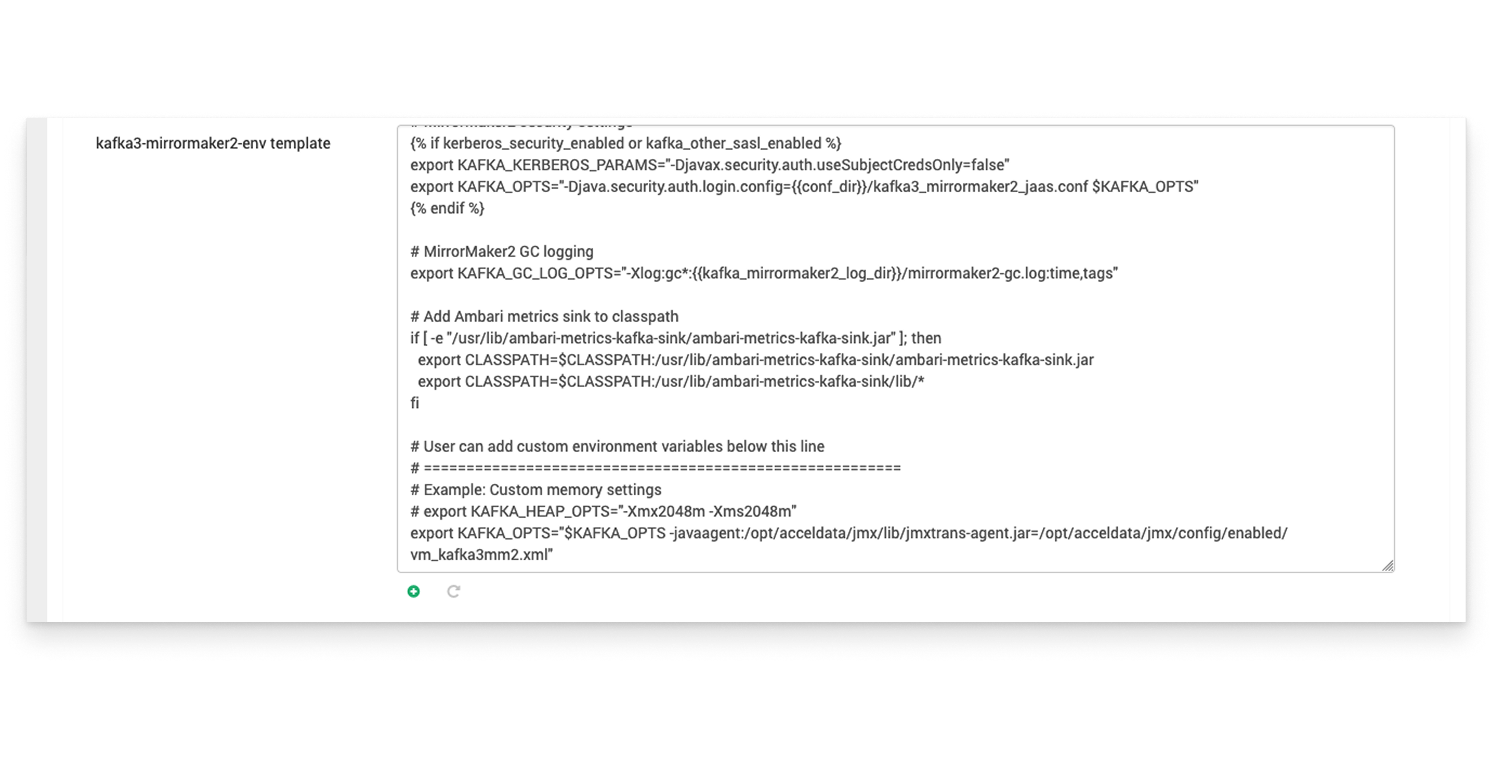

Kafka3 MirrorMaker2

Go to Kafka3 → Advanced → kafka-mirrormaker2-env
Add the following line at the end:

export KAFKA_OPTS="$KAFKA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_kafka3mm2.xml"

Pinot Broker

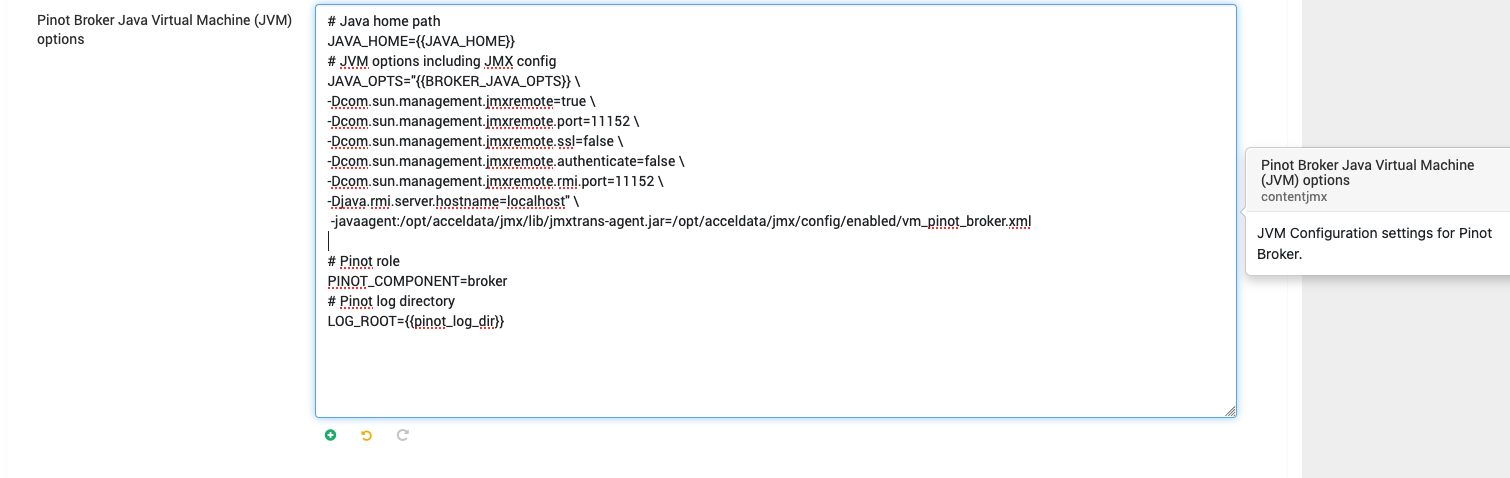

Go to Pinot Broker → Java Virtual Machine (JVM) Options
Add the below line to existing java opts.

-javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_pinot_broker.xml

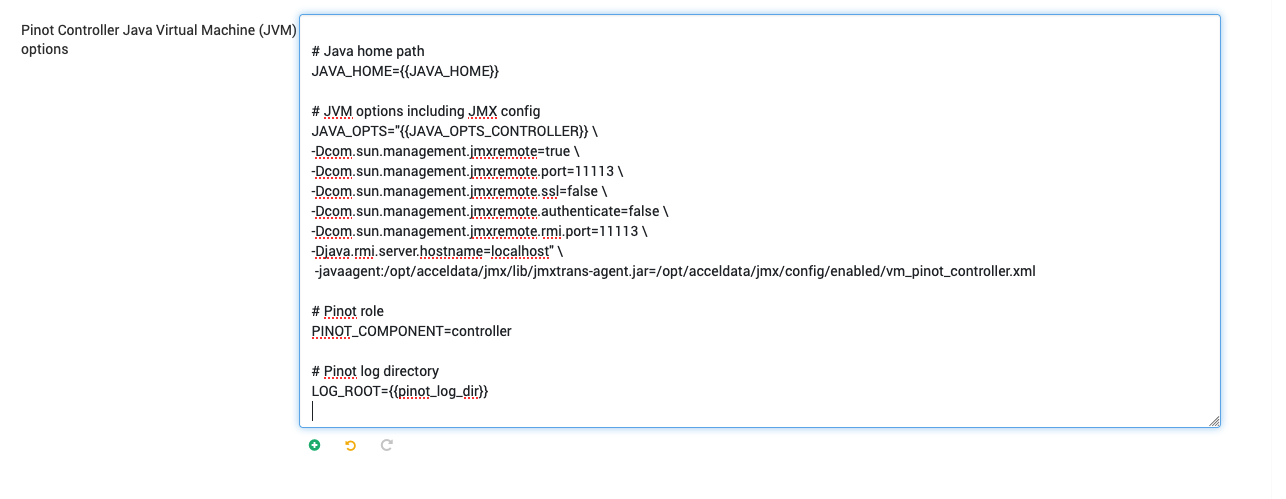

Pinot Controller

Go to Pinot Controller → Java Virtual Machine (JVM) Options
Add the below line to existing java opts.

-javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_pinot_controller.xml

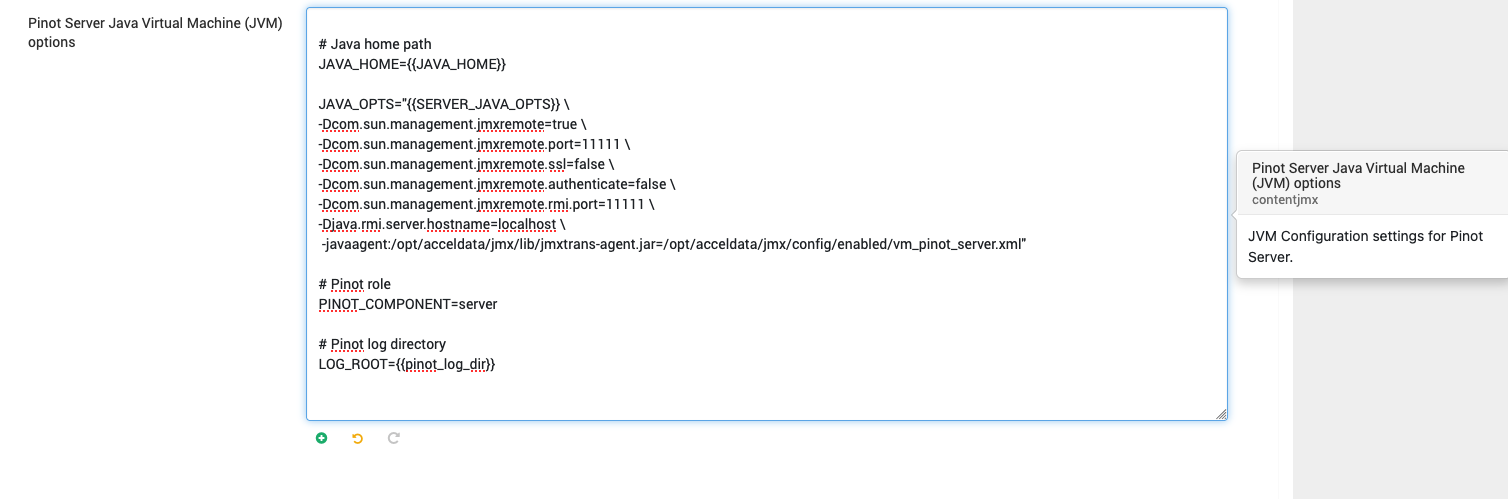

Pinot Server

Go to Pinot Server → Java Virtual Machine (JVM) Options
Add the below line to existing java opts.

-javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_pinot_server.xml

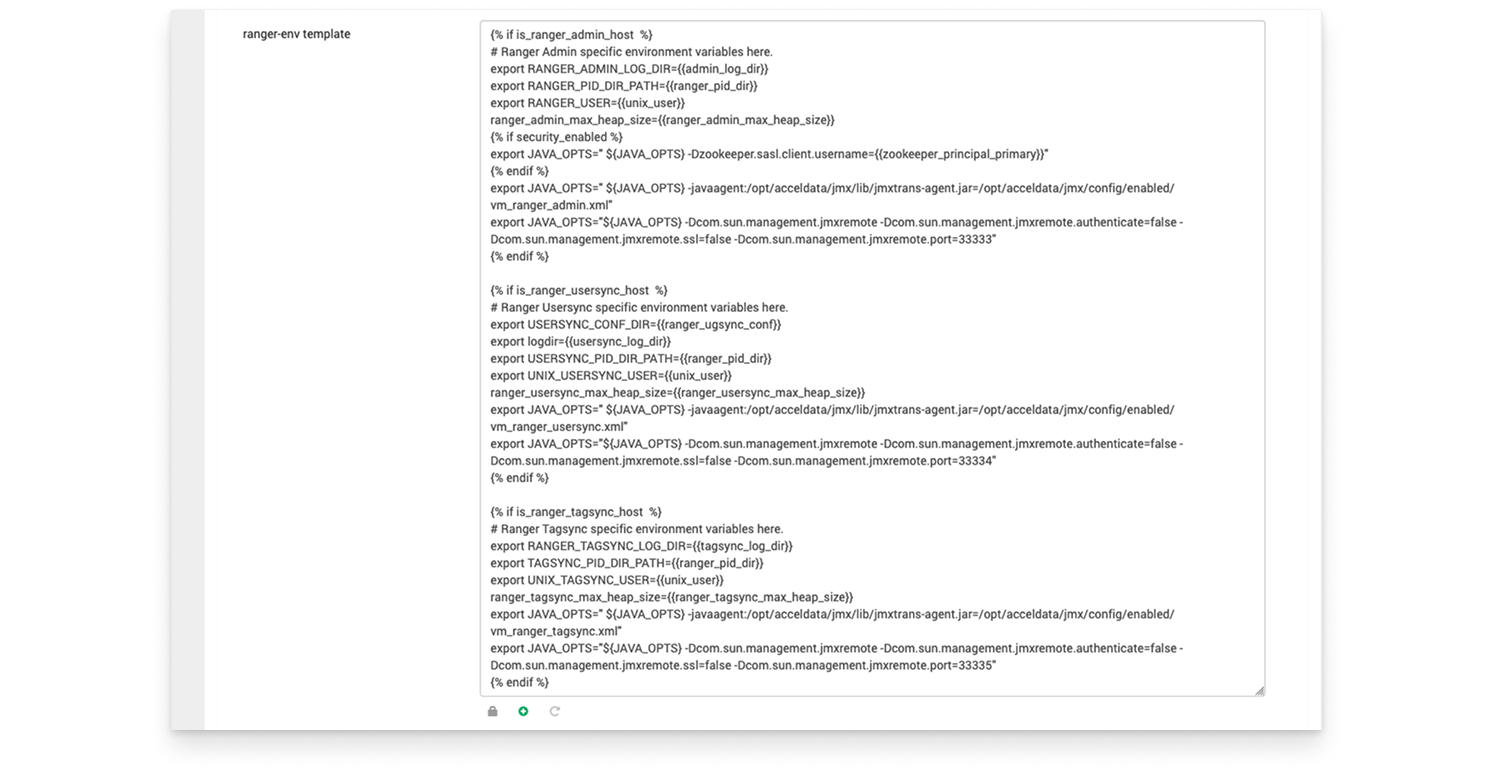

Ranger (Admin, Tagsync, Usersync)

Go to Ranger → Advanced → ranger-env template

Ranger Admin

Add the line below in the {% if is_ranger_admin_host %} section:

export JAVA_OPTS="${JAVA_OPTS} -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_ranger_admin.xml"

Ranger Tagsync

For Tagsync, add the below line in the {% if is_ranger_tagsync_host %} section:

export JAVA_OPTS="${JAVA_OPTS} -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_ranger_tagsync.xml"

Ranger Usersync

For Usersync, add the line below in the {% if is_ranger_usersync_host %} section:

export JAVA_OPTS=" ${JAVA_OPTS} -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_ranger_usersync.xml"

RangerKMS

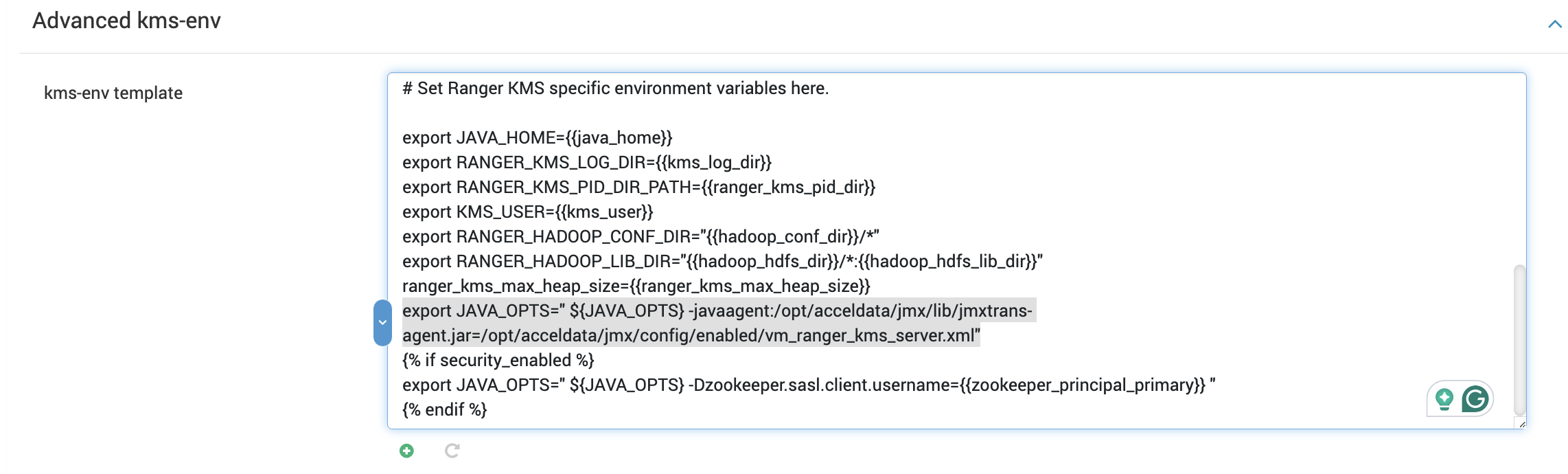

In the Ambari UI, go to Ranger KMS → Advanced kms-env-> kms-env template
Update the kms-env template with the following values.

export JAVA_OPTS=" ${JAVA_OPTS} -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_ranger_kms_server.xml"

Schema Registry

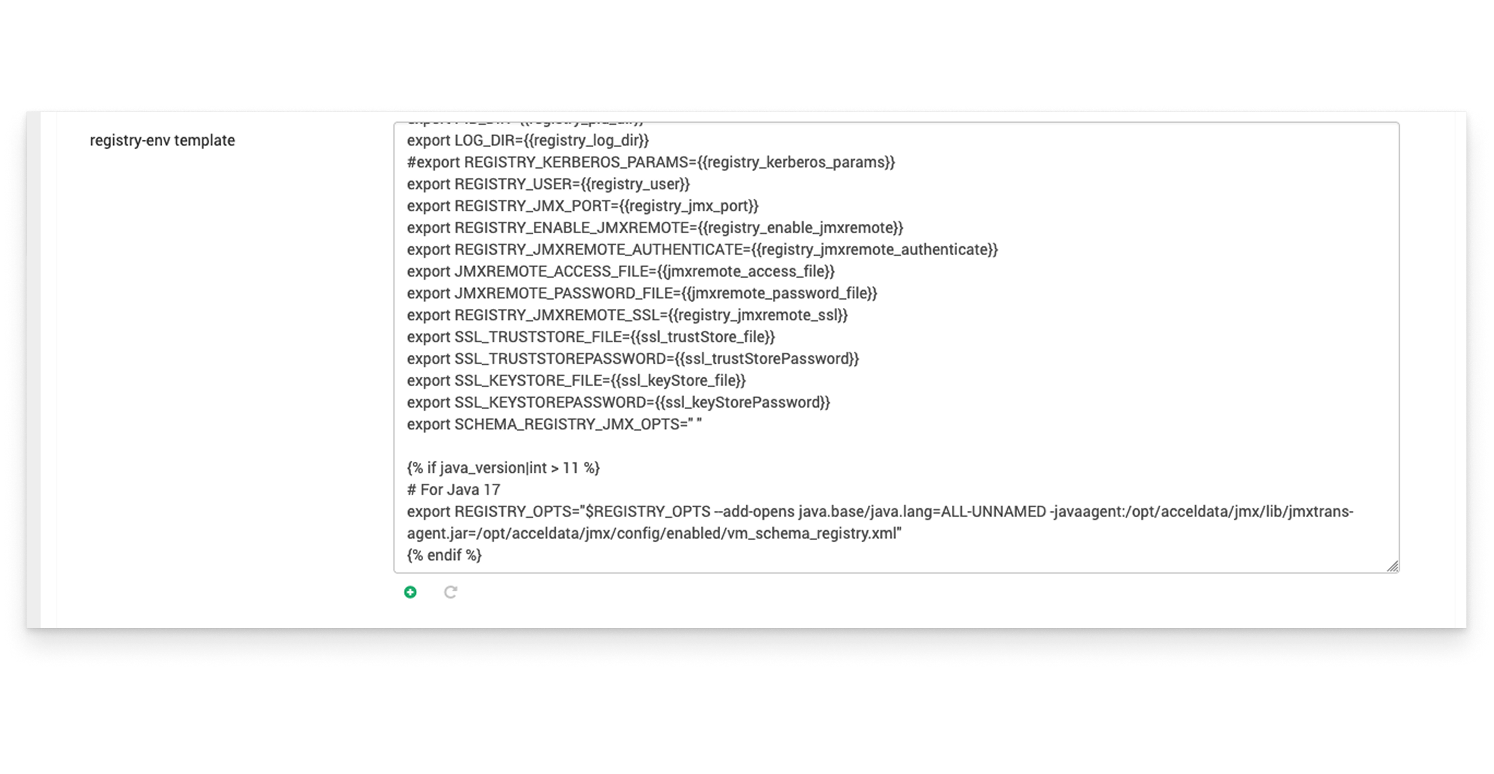

Go to Schema Registry → registry-env template
Add the following line at the end:

export REGISTRY_OPTS="$REGISTRY_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_schema_registry.xml"

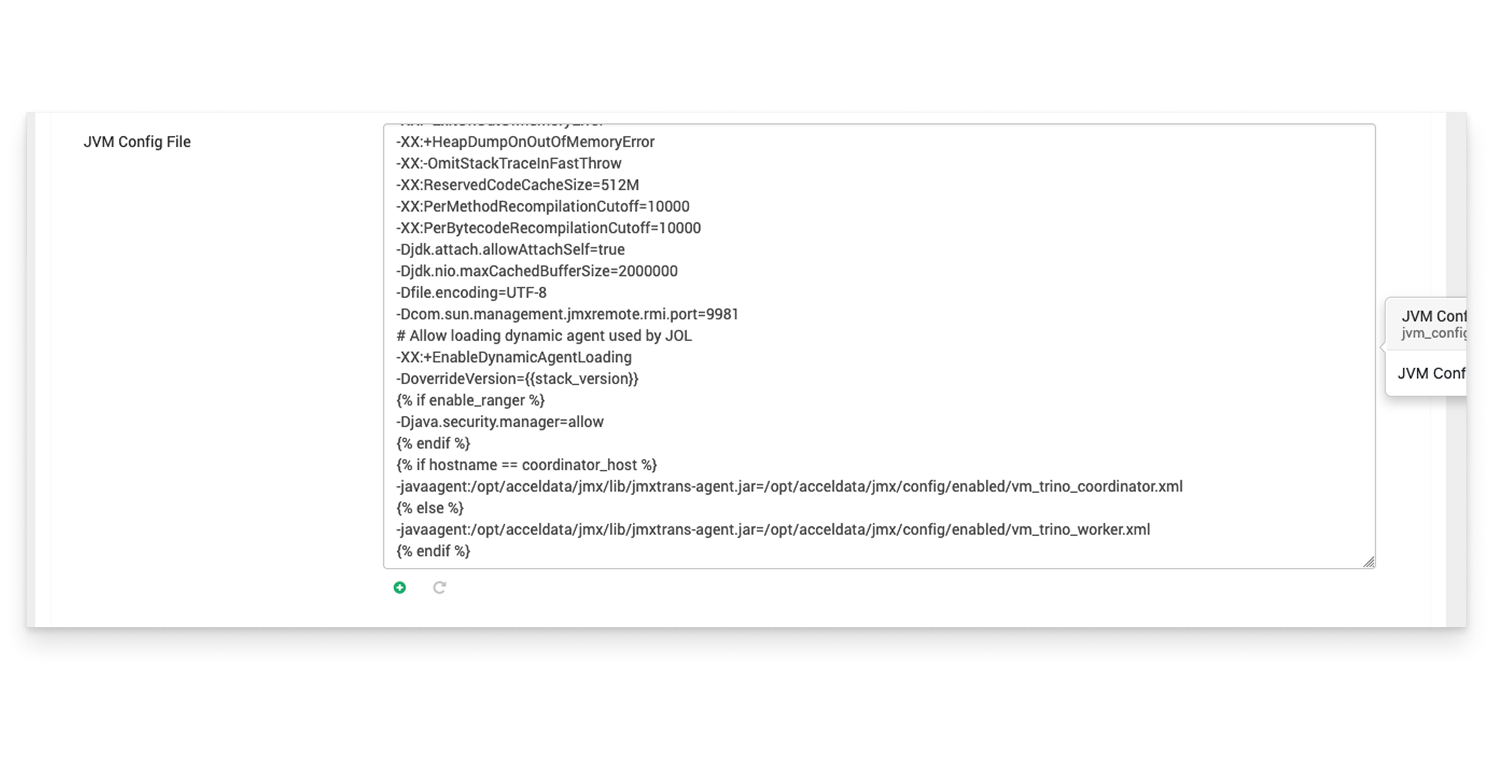

Trino (Coordinator and Worker)

Go to Trino → JVM Config file
Add the following snippet at the end:

{% if hostname == coordinator_host %}
-javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_trino_coordinator.xml
{% else %}
-javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_trino_worker.xml
{% endif %}

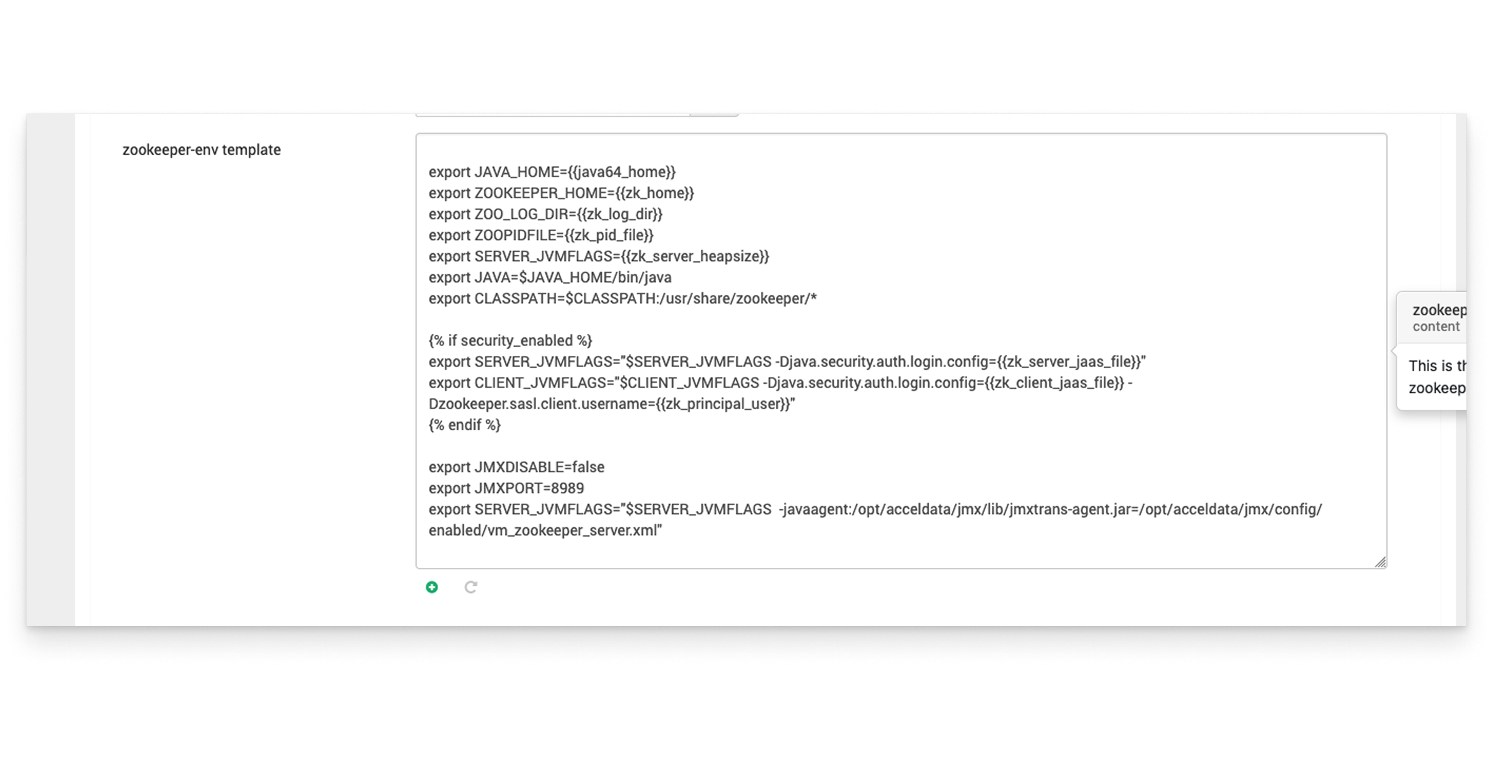

Zookeeper

Go to Zookeeper → Advanced → zookeeper-env template
Add the following line at the end:

export SERVER_JVMFLAGS="$SERVER_JVMFLAGS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_zookeeper_server.xml"

Zeppelin Master

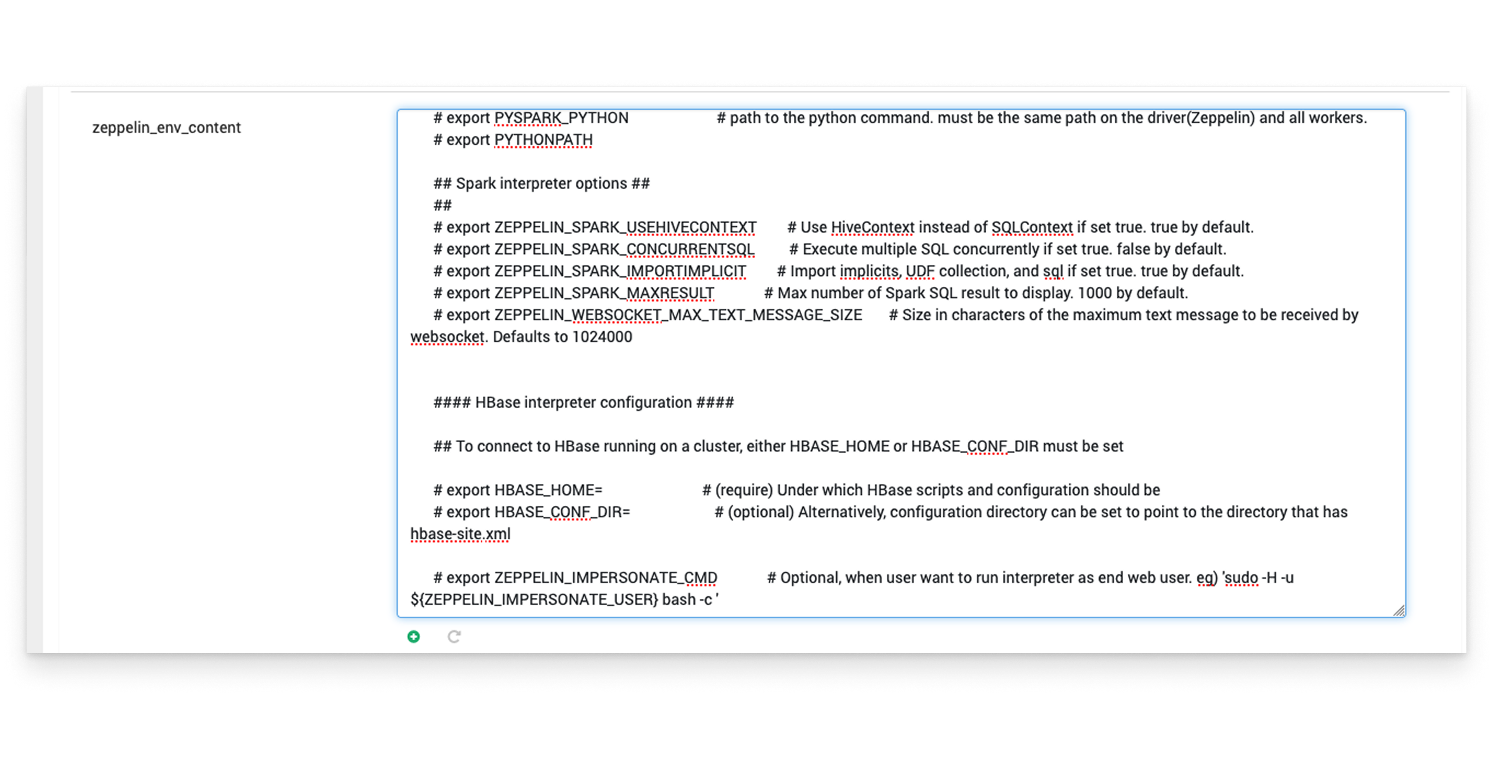

Go to Zeppelin → zeppelin_env_content
Add the following line at the end:

export ZEPPELIN_JAVA_OPTS="$ZEPPELIN_JAVA_OPTS -javaagent:/opt/acceldata/jmx/lib/jmxtrans-agent.jar=/opt/acceldata/jmx/config/enabled/vm_zeppelin_master.xml"
