Routing Rules

Enabling Routing Rules

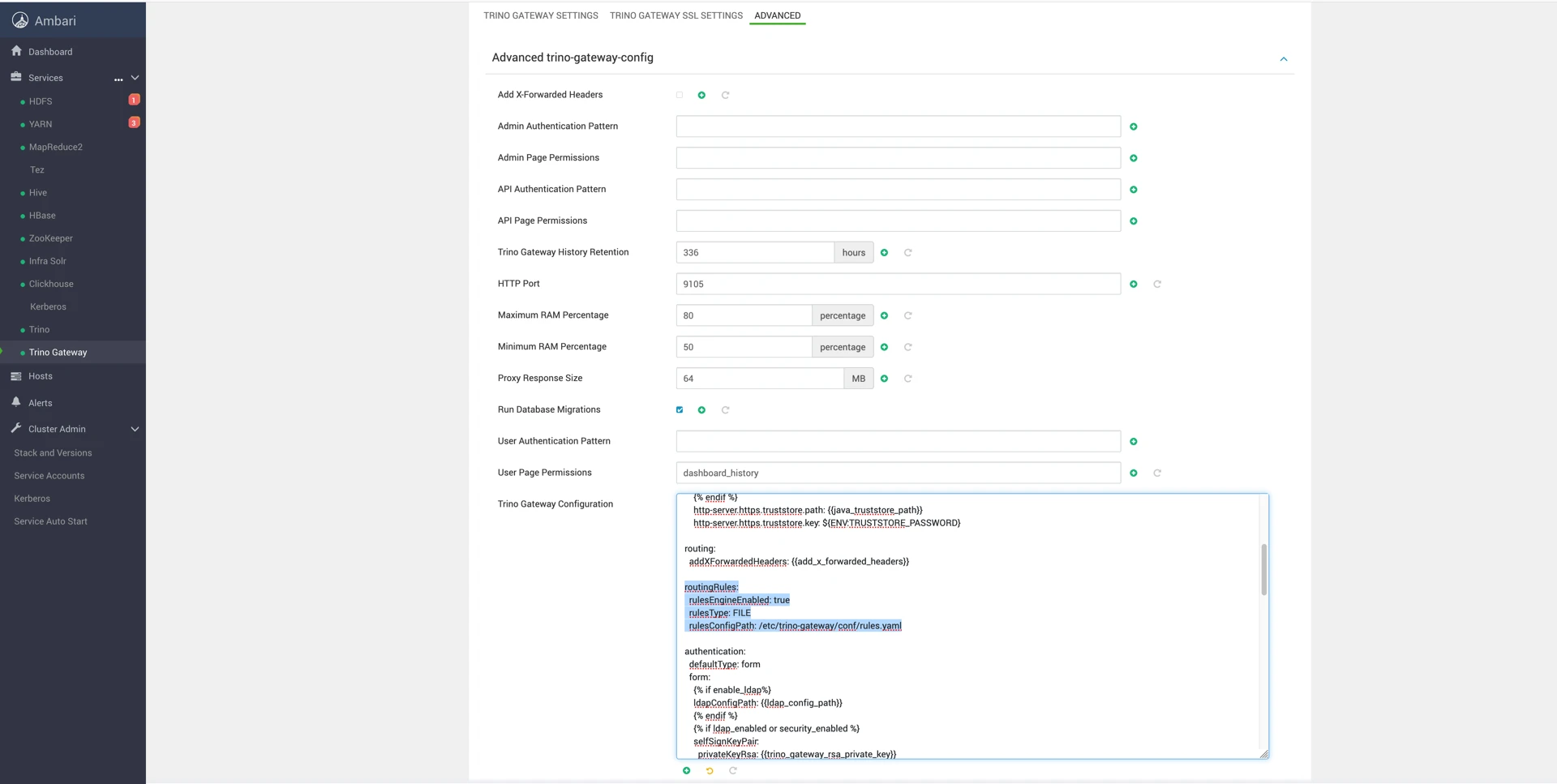

Add the following configuration to:

Trino Gateway Configuration

xxxxxxxxxx

routingRules:

  rulesEngineEnabled: true

  rulesType: FILE

  rulesConfigPath: /etc/trino-gateway/conf/rules.yaml

The path you provide must be read and writable by the Trino Gateway user as defined in the mpack. The path defined in the above example is a likely safe place to store it.

You can then add routing rules to the YAML configuration file.

Example Routing Rule

xxxxxxxxxx

---

name: "airflow"

description: "if query from airflow, route to etl group"

condition: 'request.getHeader("X-Trino-Source") == "airflow"'

actions:

  - 'result.put("routingGroup", "etl")'

---

This rule routes all queries containing:

xxxxxxxxxx

X-Trino-Source: airflow

to the etl routing group.

Queries without matching rules are routed to the adhoc group.

Rule Management Notes

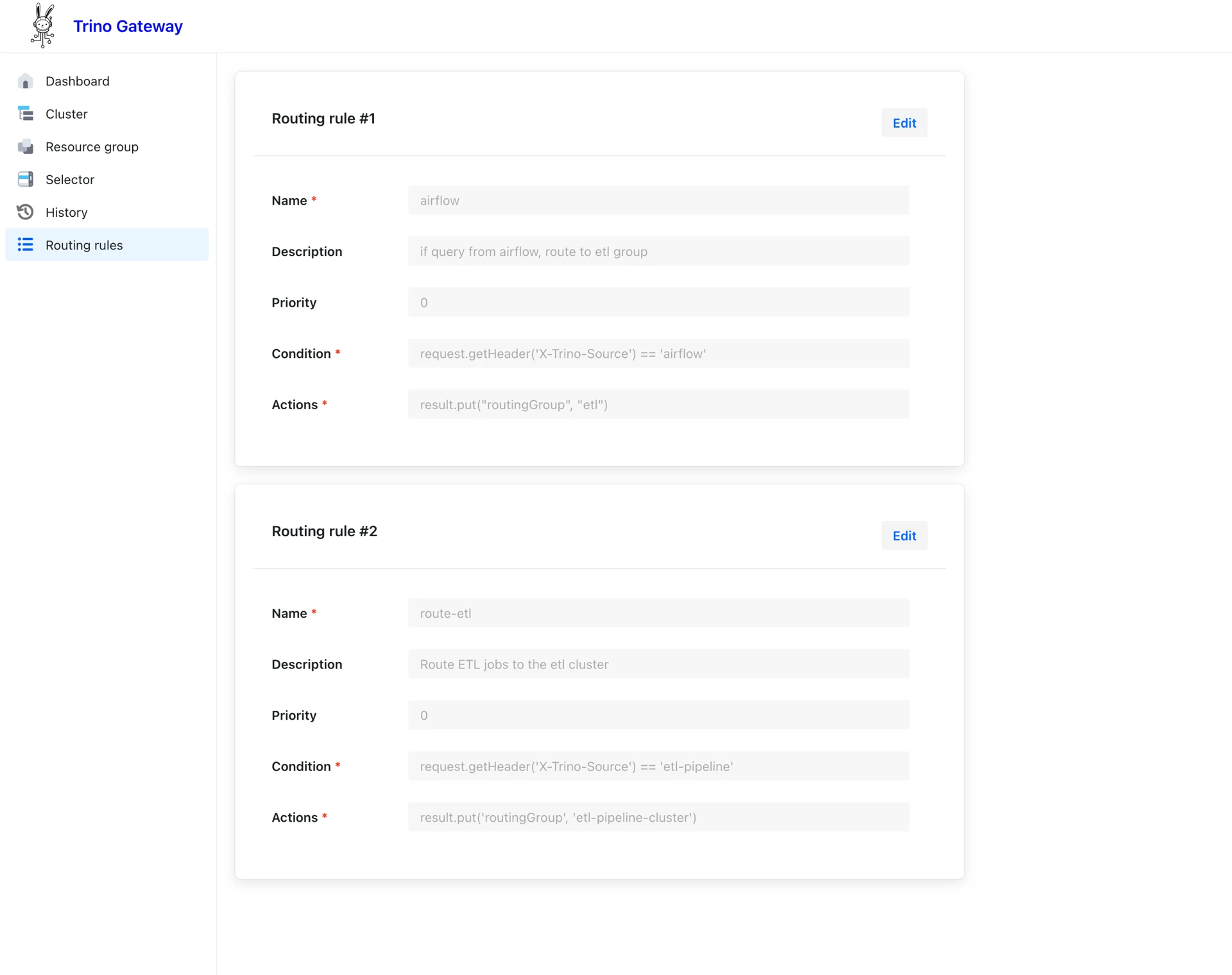

• Once you have created the YAML file with your rules, you can view and edit them in the UI.

• New rules cannot currently be created from the UI.
