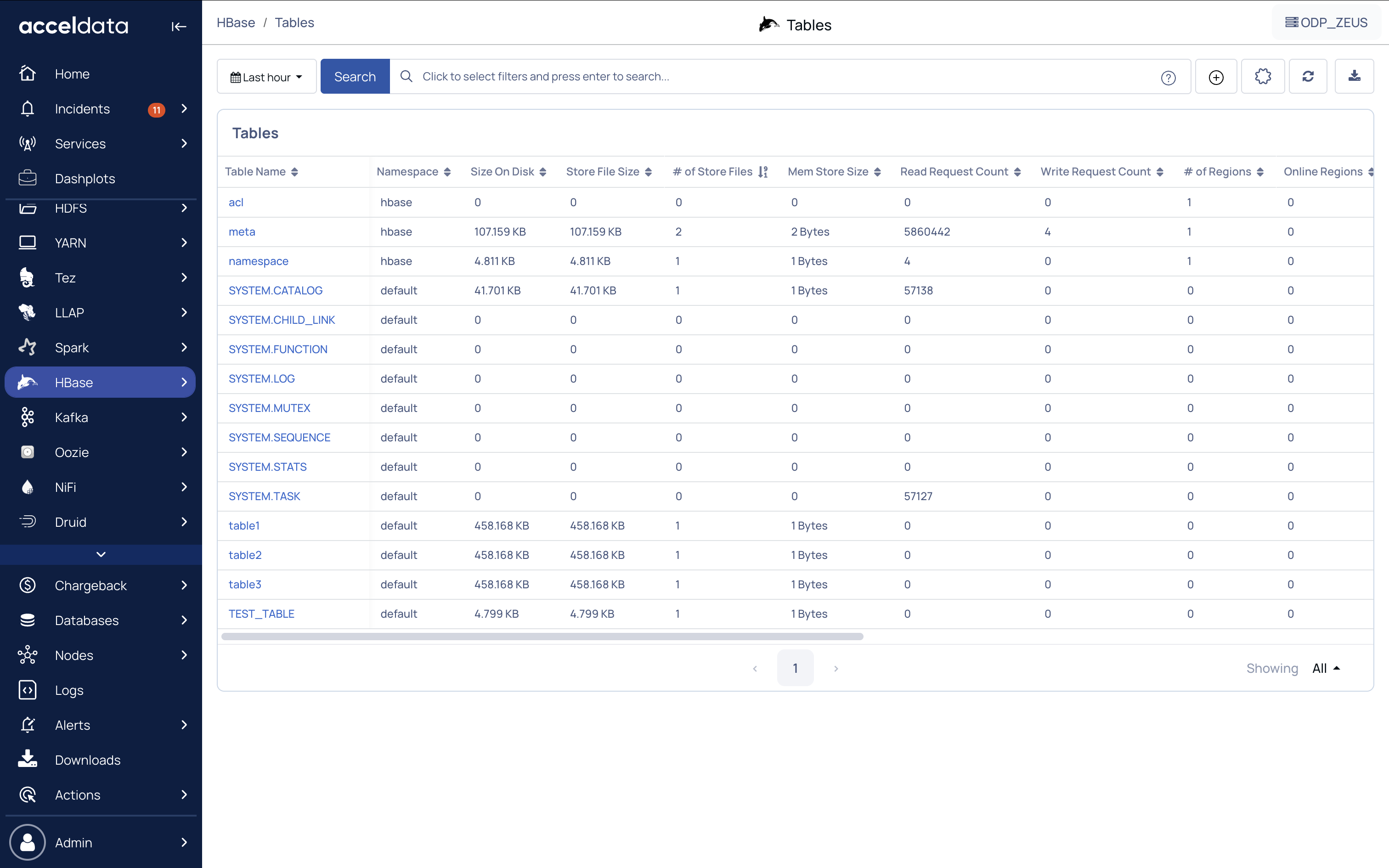

Click HBase --> Tables in the side navigation bar to view all the HBase tables in a cluster. The Tables page is displayed.
The statistics displayed are from the last 24 hours by default. To view statistics from a custom date range, click the Time frame icon in the top-right corner of the page and select the required time frame and timezone.
The following table describes the table properties:
| Column Name | Description |
|---|---|
| Table Name | The name of the table. |
| Size on Disk | The size of the table on the disk. |
| Store File Size | The size of store files in the table. |
| # of Store File | The number of store files. |
| Mem Store Size | The memStore is where the data is stored before being written on the actual disk. MemStoreSize is the size of the memStore. |
| Read Request Count | The number of read request counts. |
| Write Request Count | The number of write request counts. |
| # of Regions | The number of regions in the table. |
| Online Regions | The number of regions in online state. |
| Offline Regions | The number of regions in offline state. |
| Failed Regions | The number of regions in failed state. |
| Split Regions | The number of regions in split state. |
Filtering
You can apply filter to the name of the table. To apply filter, perform the following:
- Click Table Name. A drop-down list is displayed with the list of the table names.
- Select the table name. You can select one or more table names from the list. The table displays the details for the selected name.
- (Optional) You can search the name of the table using the search box in the drop-down list.
- (Optional) Select All to clear the applied filter. (or) Click Reset to clear the applied filter.
Search Option
Perform the following steps to search for a record in the search bar.
- Select a search parameter. Pulse provides you multiple search parameters.
- Select a suitable operator for your parameter.
- Enter the search term and hit the Enter key.
