Create Custom Visualization

Pulse provides a wide range of ClickHouse metrics that you can use to create custom visualizations and dashboards tailored to your operational and performance needs.

Steps

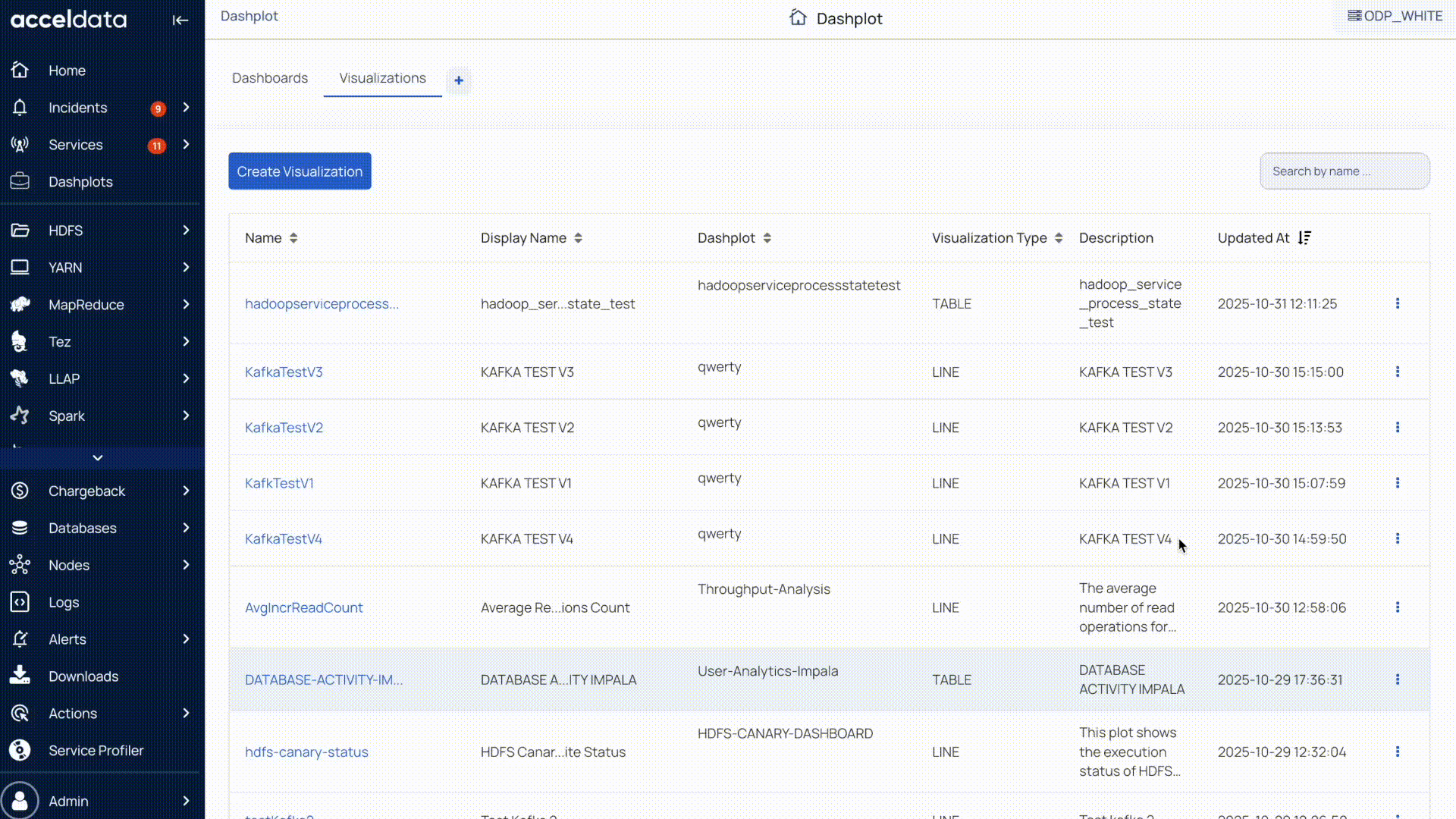

1. In the Pulse UI, go to Admin > Dashplot Studio.

2. Click + to create a new visualization or

3. Or, select Add Visualization in the Visualization tab.

4. Enter the visualization name, title, description, and Save.

5. Set the Datasource:

   • VictoriaMetrics: for time-series metrics
   • Elasticsearch: for log-level metrics
   • MongoDB: for metadata and configuration data

6. Select the Schema.

7. Search for ClickHouse in Tables and select a metric.

8. Modify the query as needed, then configure chart type, filters, and groupings.

9. Save your visualization and add it to a dashboard.

For detailed information about creating custom visualizations and adding to dashboards, see Dashplot.
